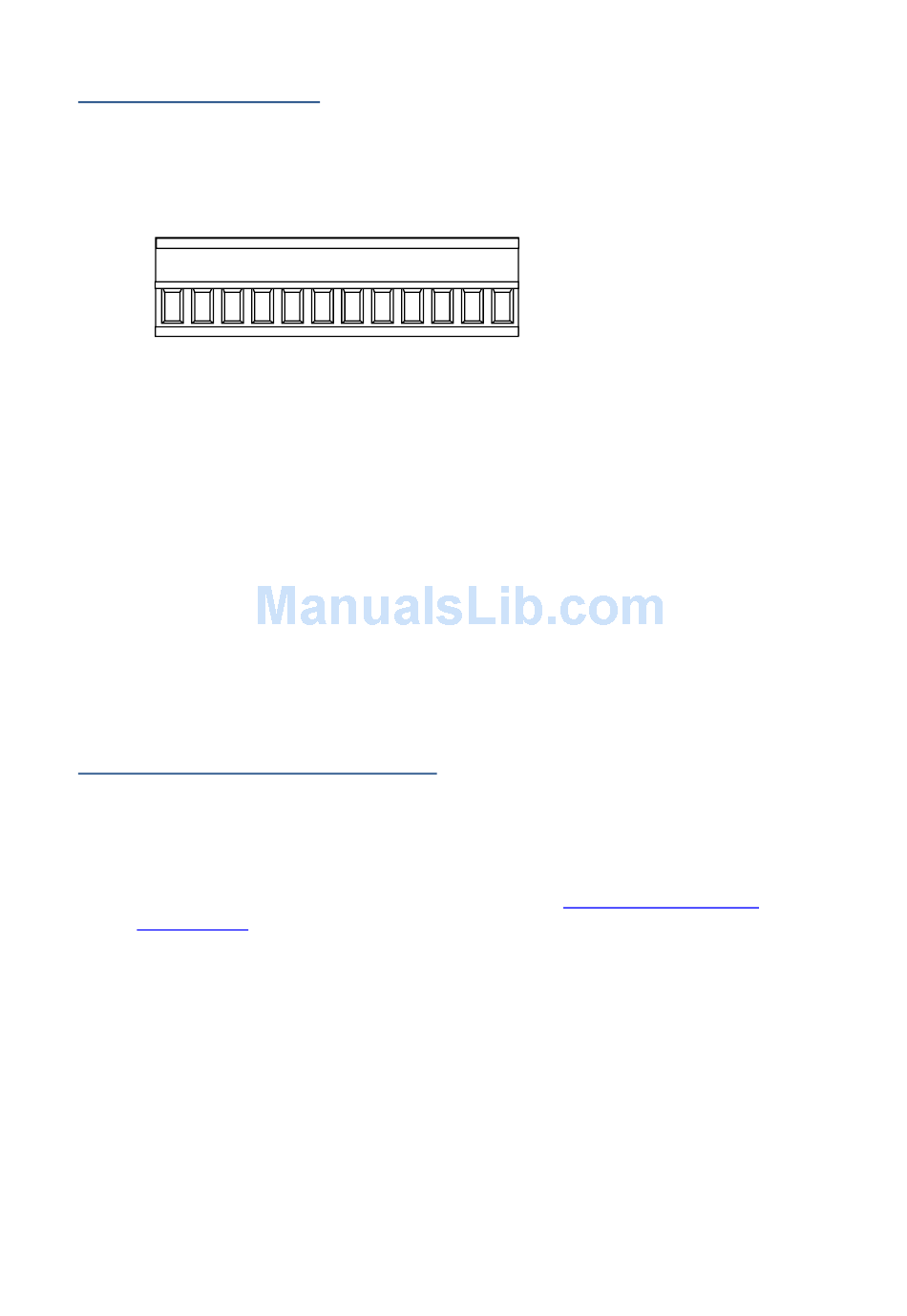

1. Connection Diagram

The best way to power the Wizard IP is over a PoE network connection. If the available network
switch does not have a PoE, it is recommended to order the Fasttel PoE injector (FTPoE).
The Wizard IP without access control keypad can only be powered by PoE.
1 2 3
Pin 1:
Pin 2:
Pin 3:
Pin 4:
Pin 5: normally closed contact relay 2
Pin 6:
Pin 7:
Pin 8:
Pin 9:
Pin 10: shared contact relay 1
Pin 11: GND Power
Pin 12: Ext power +24V

2. Find the Wizard in the Network

1. Via DHCP server:
During start-up, the IP address obtained is shown in the Wizard's display.
Or search for the device using the "Advanced IP scanner"
scanner.com/)
Fasttel0005510xxxx. Then navigate to the IP address in a browser and make the
configuration. The Mac address always begins as 00:05:51:0B.
2. Without DHCP server:
Connect the Wizard through a PoE injector to a laptop or desktop and search for the device
using the "Advanced IP Scanner" program (or similar software). The name is always
formatted as Fasttel0005510xxxx. Then navigate to the IP address in a browser and make the
configuration.
4 5 6 7 8 9
GND Wiegand/external button
Wiegand D1
Wiegand D0
external button
normally open contact relay 2
shared contact relay 2
normally closed contact relay 1
normally open contact relay 1
program (or similar software). The name is always formatted as
10 11 12
(only in keypad version)
