FT20CC
Fasttel België, Klipsenstraat 18A, 9160 Lokeren Tel +32 (0)9 244 65 20, info@fasttel.be
1. Installation Instructions
•
Connect the video signal to the terminals V+ and V- (terminals 1 and 4 of the rear connector)
Caution! It is extremely important to maintain the polarity of the video signal.
•
Connect the power supply provided to the PP terminals (terminals 2 and 3). The polarity is not
important in this case.
1
2
3
V+
P
P
V-
•

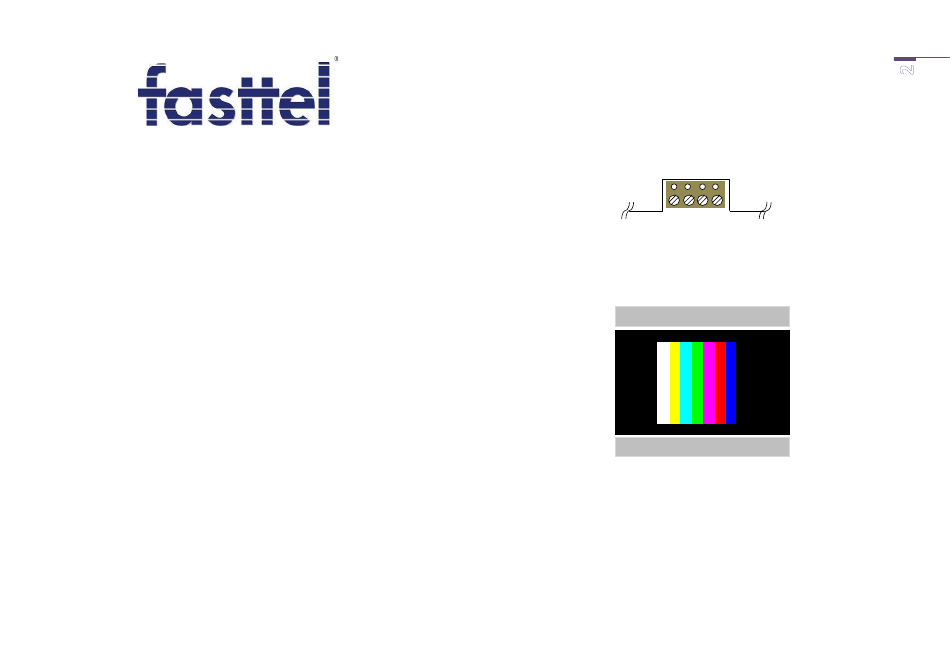

When everything is connected correctly, a colour bar will appear in the display, followed by a
series of beeps, after which the display goes into standby mode.
2. Configuration Instructions
After removing the extreme right cover, you will find two circular recesses with two push buttons.
FT20CC: Manual ENG1.6
Advertisement
Related Manuals for Fasttel FT20CC
Summary of Contents for Fasttel FT20CC
- Page 1 FT20CC 2. Configuration Instructions Fasttel België, Klipsenstraat 18A, 9160 Lokeren Tel +32 (0)9 244 65 20, info@fasttel.be After removing the extreme right cover, you will find two circular recesses with two push buttons. FT20CC: Manual ENG1.6...

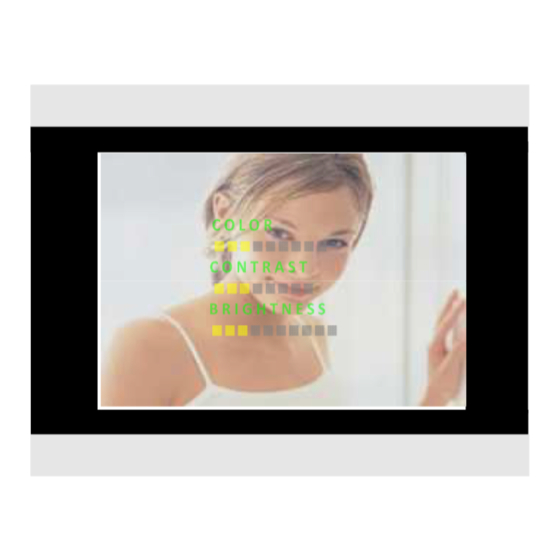

- Page 2 Make sure that the screen is blank, and press BUTTON 2. The following screen will appear The ‘V13’ next to the text BUTTONS indicates the current software version. BUTTON 2 (other selection) BUTTON 1 (change) FT20CC: Manual ENG1.6 FT20CC: Manual ENG1.6...
