Instruction Manual

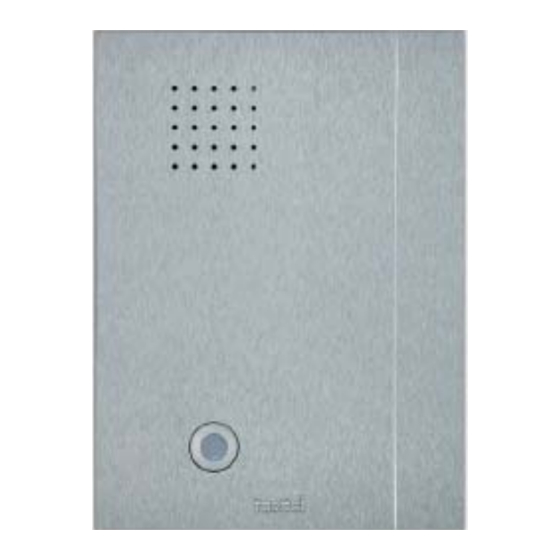

WIZARD CLASSIC IP
Fasttel reserves the right to change the content of this manual without prior notice.
Fasttel Belgium, Klipsenstraat 18A, 9160 Lokeren. Tel +32 (0)9 244 65 20 info@fasttel.be
Editie 2.3 pg1
Content
1. Connection Diagram . ........................................................................................................................... 3
2. Find the Wizard in the Network .......................................................................................................... 3
3. Configuration . ...................................................................................................................................... 3
3.1 Logging In . ...................................................................................................................................... 4
3.2 Status ............................................................................................................................................. 4
3.3 Network and time settings ............................................................................................................ 4
3.4 Phone directory ............................................................................................................................. 4
3.5 Sip connection settings .................................................................................................................. 5
3.6 Quick Dial Button Settings ............................................................................................................. 6
3.7 Timing Settings . .............................................................................................................................. 7
3.8 Time profiles .................................................................................................................................. 7
3.9 Device settings ............................................................................................................................... 7
3.10 Relay settings ............................................................................................................................... 8
3.11 Audio Settings .............................................................................................................................. 9
3.13 Account Settings ........................................................................................................................ 10
3.14 Software update ........................................................................................................................ 10
3.15 Auto provisioning . ...................................................................................................................... 10
Editie 2.3 pg2
Advertisement
Table of Contents
Related Manuals for Fasttel WIZARD CLASSIC IP
Summary of Contents for Fasttel WIZARD CLASSIC IP
-

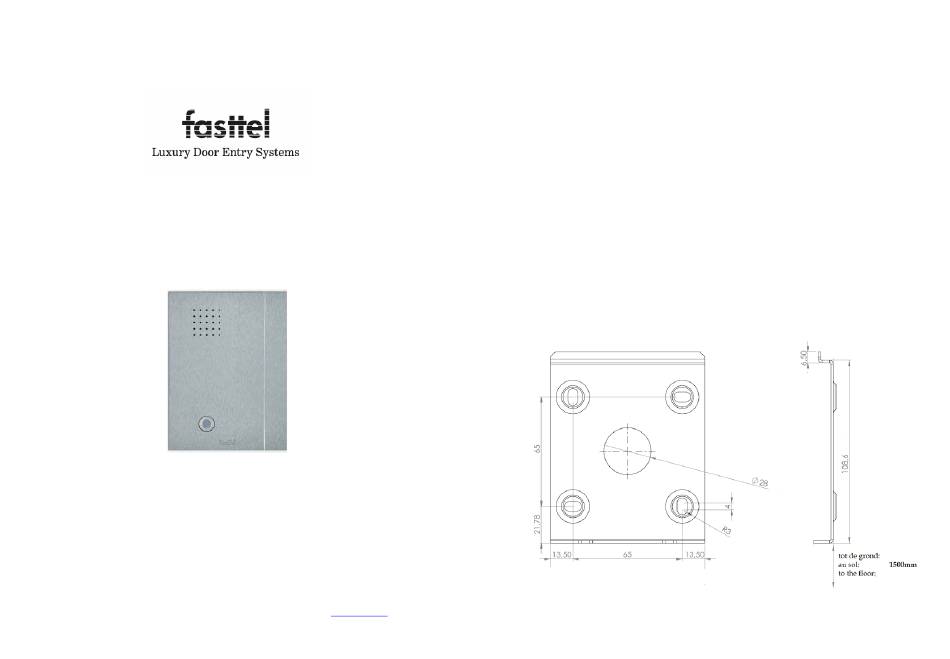

Page 1: Table Of Contents
3.6 Quick Dial Button Settings ...................... 6 3.7 Timing Settings .......................... 7 WIZARD CLASSIC IP 3.8 Time profiles .......................... 7 3.9 Device settings .......................... 7 3.10 Relay settings .......................... 8 3.11 Audio Settings .......................... 9 3.12 Backup, factory reset & Logs ....................... 9 3.13 Account Settings ........................ 10 3.14 Software update ........................ 10 3.15 Auto provisioning ........................ 10 Fasttel reserves the right to change the content of this manual without prior notice. Fasttel Belgium, Klipsenstraat 18A, 9160 Lokeren. Tel +32 (0)9 244 65 20 info@fasttel.be Editie 2.3 pg1 Editie 2.3 pg2 ... -
Page 2: Connection Diagram
1. Connection Diagram Next to each item you find . Move the mouse cursor on it and some explanation of the item will appear. The only way to power the Wizard IP is over a PoE network connection. If the available network switch does not have a PoE, it is recommended to order the Fasttel PoE injector (FTPoE). 3.1 Logging In Navigate to the address of the Wizard and enter the default Username and Password. Both are admin. A second login is user/user. Change both in section “Account”. Change the language if desired. You will see the configuration menu on the left. 3.2 Status An overview of the default values of what you will have to configure is given here. Nothing can be edited in this page itself. 3.3 Network and time settings IP The device comes in DHCP mode upon delivery. With a program such as “Advanced IP Scanner” (http://www.advanced‐ip‐scanner.com/), you can scan the network and if a DHCP server is active, you will find the device with the name Fasttel000XXX, and you will see the IP address obtained (see point 2. Find the Wizard in the Network) 2. Find the Wizard in the Network You can also give the device a static IP address. 1. Via DHCP server: ... -
Page 3: Sip Connection Settings
Display name: Enter here the name of the recipient who will be assigned to a quick dial button via quick dial button settings. Phone number: this is the number that the door intercom must call to be able to reach this recipient. With the green and red buttons you can make a test call to this number. Time profile: you can assign a time profile to a recipient. If a call is placed to this recipient outside the time profile, the door intercom will not launch a call or it will call the next recipient who does fall within the time profile. For instance, you can program 3 shift teams under 1 button, each with a different time profile of 8 work hours. The correct shift team will then always be called at the correct time. See the following two points: 3.6 Quick dial Button Settings and 3.8 Time Profiles. Screen name: enter a logical name for the device. The device’s location is useful when you have Call and enter: if a relay is chosen here, this relay will be activated directly when calling this recipient. multiple door intercoms in 1 project. Shorten Ring Time to (sec): : if the square is ticked and a value is entered here, the call during Call and Enter will only ring the telephone with that value. The telephone number is the number of the door intercom on the external SIP server. This function is useful for, e.g. dentists. When calling, the door is concretely opened directly and the telephone rings, e.g. 1 or 2 times as notification that someone is entering. Domain: if empty, the SIP server field will be used. The Call and Enter function can also be used to provide contact when calling, e.g. to an input of a home automation system. If this is the case, disable the Door open animation. Authentication ID and Password must match those given in the SIP server. Recipients can therefore be created doubly: first without Call and Enter and then with Call and Enter Server address and server port: enter the data for the external SIP server with which the door activated. You can link a different time profile to set automatic opening of the door by times. The ... -
Page 4: Timing Settings
They can be disabled and the time duration in milliseconds can be adjusted. does not answer the call. This means that a duty cycle of 2000 equals a 2‐second pulse. Max Call duration: Enter here in seconds the maximum duration of a conversation. DTMF: This is the code that must be entered to open the relay with the telephone. DTMF hangup: this code will force the call to end. 3.8 Time profiles A time profile can be created here that can be linked to a recipient under Phone Directory. Recipients are only called when the call falls within the time profile. If no time profile is linked to a You can control both relays not only via DTMF but also with a URL command. This is useful when, for recipient, the call will always be launched. example, you use the Fasttel indoor station VISITOR! You can then open the gate from the main screen without being connected to the Wizard. You create in the VISITOR! an html activation with the Two time profiles have already been pre‐programmed: 4/5 and full time (full work week). username and password you entered above. The correct https link will be displayed here immediately. 3.9 Device settings External relays: The Wizard Classic IP is equipped with 1 RGB LED that illuminates the push button. Here you can set the color of that LED. Editie 2.3 pg7 Editie 2.3 pg8 ... -
Page 5: 1 Audio Settings
3.13 Account Settings If you prefer to switch the relays indoors for safety reasons, you can purchase up to 2 FT4SWIPs. This You can change the default user admin and default password admin here. Also user/user. Be sure to is a network module with 8 inputs and 4 outputs. The outputs can be activated here by an http change both! command. In this example, the ip address of the first FT4SWIP = 192.168.10.119 and the default login details 3.14 Software update admin and password are used. Be sure to change it in the FT4SWIP. DOA1 = 50 at the back of the command represents relay 1 pulse for 5 seconds. If the wizard is connected to the internet, the device itself checks for new updates. The IP address of the second FT4SWIP is 192.168.10.176. This command switches relay 2 for 2 If not, you will find the latest software at www.fasttel.com under downloads. You can then update seconds. from the file. Play voice: if checked, a spoken message will be played when this relay is activated. 3.15 Auto provisioning If the same DTMF code is chosen for multiple relays the relays will be activated all together. For use with Proximus call connect. 3.11 Audio Settings The default values for the speaker and microphone are generally correct at 50%. If you do want to make adjustments upward, it is recommended to do this in small steps to avoid oscillation. ...
