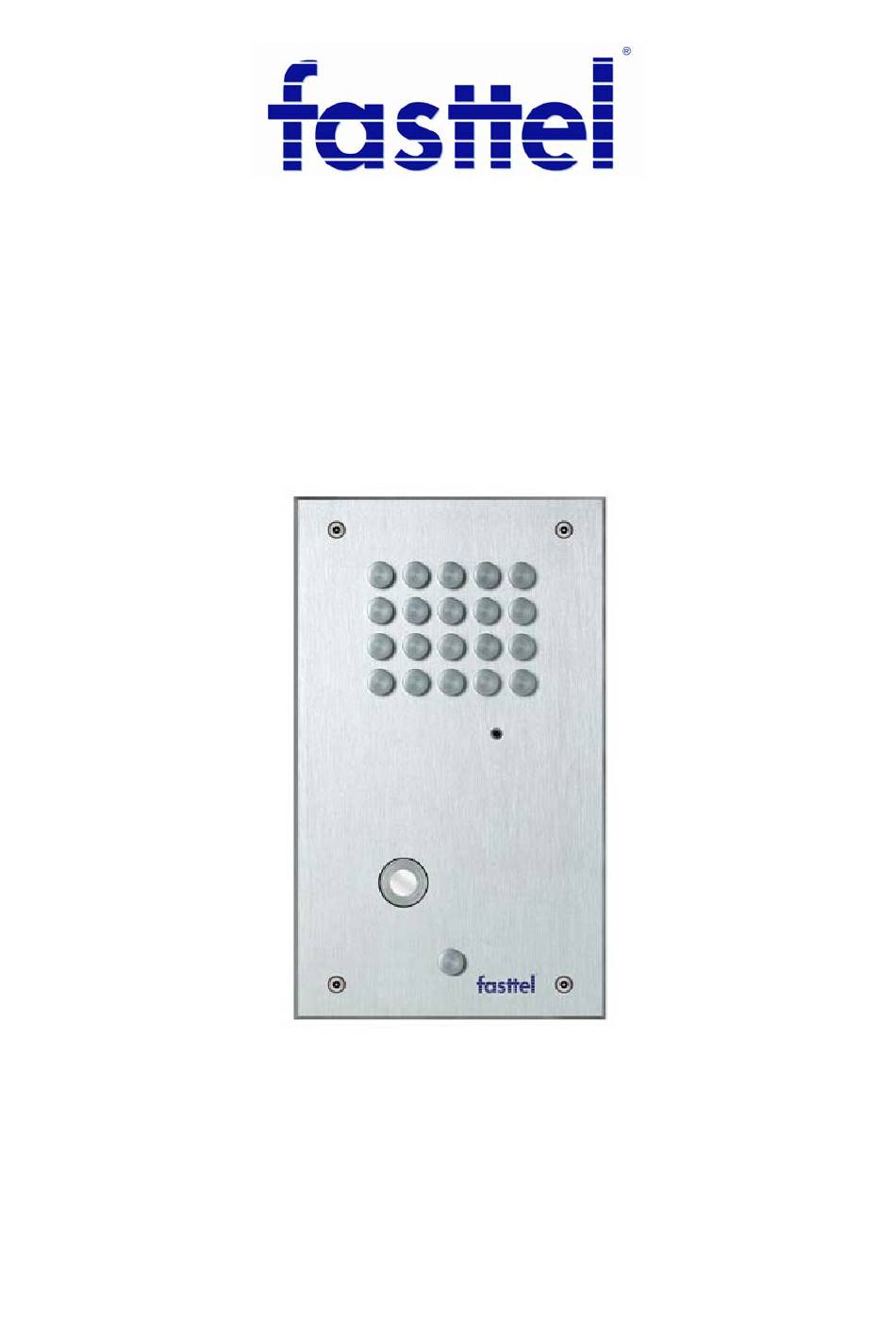

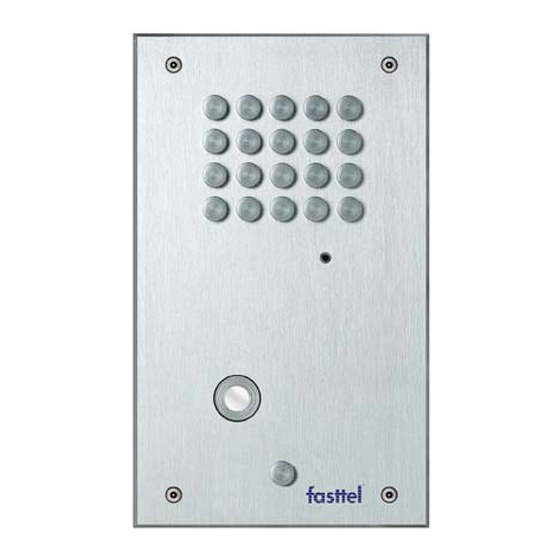

- Page 1 MANUAL Flexitalk Fasttel has the right to change the content without preceding announcements. Fasttel Belgium, Spieveldstraat 24, 9160 Lokeren. Tel +32 (0)9 244 65 20, info@fasttel.be Fasttel Netherlands, Heiligenboom 3, 5066 CB Moergestel. Tel 013 513 65 14, info@fasttel.nl ...
-
Page 2: Table Of Contents
1. ADVANTAGES AND TECHNICAL FEATURES 3 2. TARGET AND GENERAL DESCRIPTION 4 3. USE OF THE SYSTEM 5 3.1. Incoming door call 5 3.2. Connection with the door phone 5 3.3. External call during a conversation with the door phone 5 4. PUTTING IN SERVICE THE SYSTEM 6 5. CONNECTIONS 8 5.1. Door phone 8 5.2. Door phone with video 9 Edition 3.5 pg 2 Flexitalk manual... -
Page 3: Advantages And Technical Features
Very easy to install; Possibility to use existing cables; Commutation between telephone line and telephone device; Puts on hold the incoming line; Opens the door with telephone keyboard; Control of an extra (Domotics) contact; Door station: Aluminium design; Vandal resistant door station construction; High quality sound; Integration of video camera is possible; 1.2. Technical data: Power : 230 Volt Camera (option) : 1.5 lux black/white, 5 colours Video in : Twisted pair (for example, UTP, maximum 300m) Music on hold : internal Connections : Analogue line in : Tel out : DP, doorpost : 2 contacts relay, 1A /30VDC : power exit for doorpost Type : built‐in or external Dimensions interface : din rail 157 x 86 x 58 Edition 3.5 pg 3 Flexitalk manual... -
Page 4: Target And General Description
2.1. Target: The use of your telephone apparatus as a door intercom receiver, with the possibility to open the door, to control an additional contact (Home automation or domotics) and to put communications on hold, with the possibility of internal music on hold. 2.2. General description of the ‘Flexitalk’ The system allows you to transform your telephone apparatus into an intercom responder and door opener. We realize this by connecting the FLEXITALK between your entering line connection and your telephone. The connection possibilities are: PSTN line FLEXITALK PSTN line FLEXITALK PABX PSTN line PSTN line FLEXITALK PABX PSTN line Edition 3.5 pg 4 Flexitalk manual... -
Page 5: Use Of The System
When you put down the receiver, you are in connection with the door station. 2) You can put your correspondent on hold by pressing * upon your apparatus (your correspondent hears internal on hold music and you are automatically connected with the doorpost). Now you can command the door or the second contact. You can take back your correspondent by pressing upon *. 3) You can directly open the door without talking to the person at the intercom by pressing upon #1# or #2#. 3.2. Getting connected with the door phone When you introduce #*# you are connected to the intercom. You can also use the commands to open the door #1# or to use contact 2 #2#. Observation Each command is confirmed, after execution, by 3 short successive beep tones. Only then, you can introduce a new command. A long beep tone means a bad introduction. Edition 3.5 pg 5 Flexitalk manual... -
Page 6: Putting In Service The System
C , common contact relay 1 23‐24 REL2 : NO , normal open contact relay 2 C , common contact relay 2 25‐26 EXT : external supply voltage for the door phone 27‐28: mains voltage 230Vac Observation: if a connection with an analogue telephone line or a PABX extension is impossible, you must bridge the pins LINE en DP with 2 wires. In this case, you make an audio connection when you pick up the phone. To activate the video, you must press upon #*#. Relay 1 and relay 2 act as impulse contacts if you use the code #1# and #2#. If you want to use the contacts as a toggle (on/oft), use the codes, #11# to put on contact 1 and #10# to put off contact 1. For the second contact, use respectively #21# and #20#. This second contact can also be actived for 3 seconds , if one presses upon the button of the external station ( code #511 , see page 7) or continu during the whole conversation ( code #521 , see page 7) When one presses upon the button of the external station, the phones will ring 10 times. You can modify these times via the code # 90XX where xx=01..99. You can only introduce this code after the connection with the door phone. If necessary, you can also modify, on the PCB (Printed Circuit Board) of the external station, the volume of the loudspeaker and the microphone by setting the potentiometers. See diagram underneath. Edition 3.5 pg 6 Flexitalk manual... - Page 7 #1# : control relay 1 for 2 seconds #2# : control relay 2 for 2 seconds #11# : control relay 1 (on) #10# : control relay 1 (off) #21# : control relay 2 (on) #20# : control relay 2 (off) * : break off the connection with the door unit Program codes #90XX : set up the times to ring XX=01..99 , default =99 #501 : activate permanently the camera #500 : do not activate permanently the camera #511 : control relay2 for 3 seconds when there is a doorphone call #510 : do not control relay2 for 3 seconds when there is a doorphone call =default #521 : control relay2 continu during the whole conversation when there is a doorphone call #520 : do not control relay2 after a doorphone call #530 : reset to delaut values ‐ in communication with external line and door call *: put the external line on hold and connect When you introduce again* the external line is taken back and the connection with the door unit is broken off. #1# : control relay 1 for 2 seconds #2# : control relay 2 for 2 seconds #11# : control relay 1 (on) #10# : control relay 1 (off) #21# : control relay 2 (on) #20# : control relay 2 (off) Edition 3.5 pg 7 Flexitalk manual...
-
Page 8: Connections
5. Connections 5.1 Door phone S tore/Red. Mail Individ rep. ISD N serv.y Redial Transfer LS -/ LS+/- Mut e LS /Apply Attention : if you have an ADSL connection ,you must connect the telephone ligne behind the ADSL filter ... -
Page 9: Door Phone With Video
5.2. Door phone with video D EF Store/Red. Mail Individ rep. ISDN serv.y PR S Redial Transfer LS-/ LS+/- Mute LS/Apply Attention : if you have an ADSL connection ,you must connect the telephone ligne behind the ADSL filter Edition 3.5 pg 9 Flexitalk manual...
