Audio Settings; Video Settings - Fasttel Wizard Elite IP Instruction Manual

If you prefer to switch the relays indoors for safety reasons, you can purchase up to 2 FT4SWIPs. This
is a network module with 8 inputs and 4 outputs. The outputs can be activated here by an http
command.

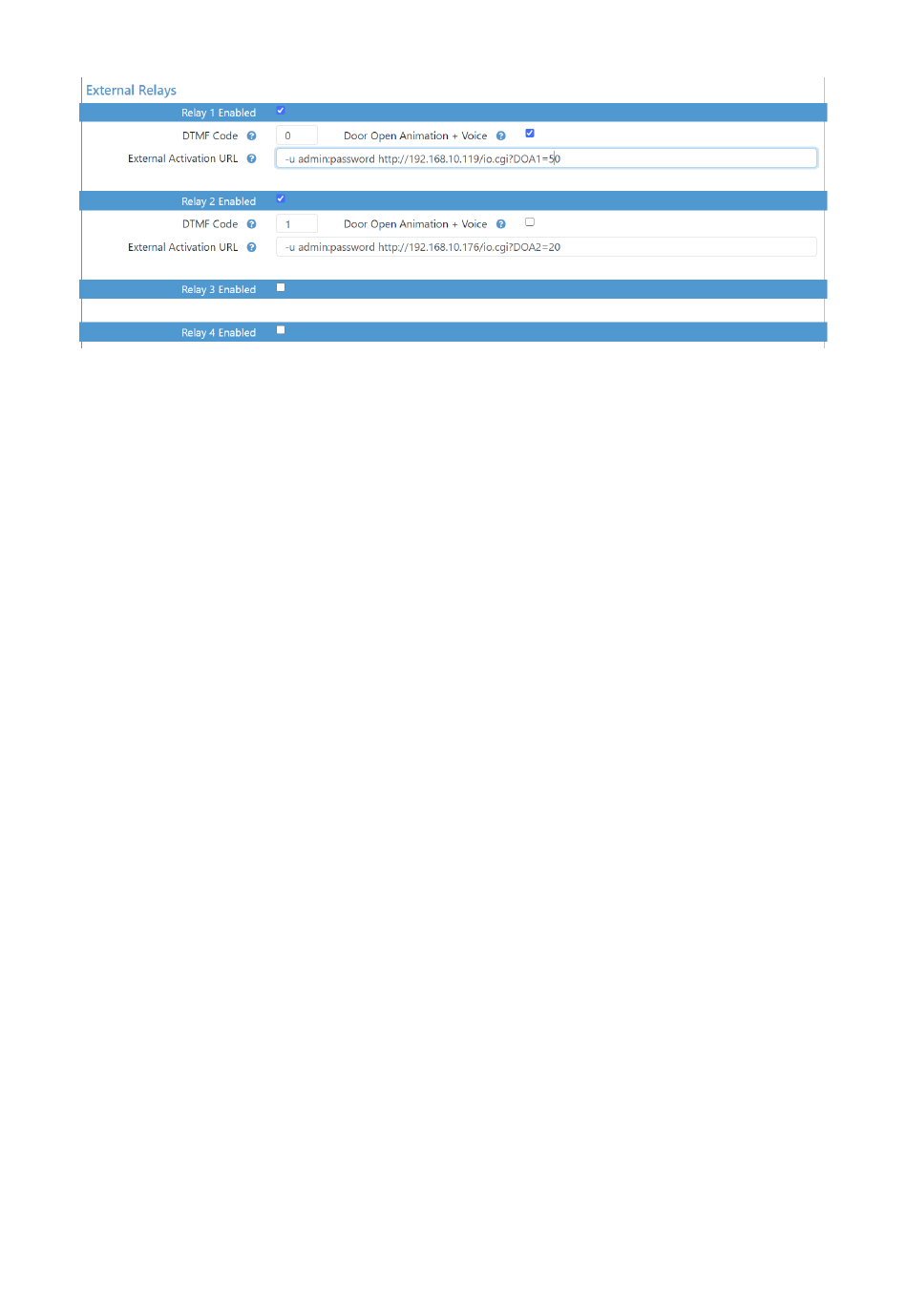

In this example, the ip address of the first FT4SWIP = 192.168.10.119 and the default login details
admin and password are used. Be sure to change it in the FT4SWIP. DOA1 = 50 at the back of the
command represents relay 1 pulse for 5 seconds.
The IP address of the second FT4SWIP is 192.168.10.176. This command switches relay 2 for 2
seconds.
Door open animation + voice: if checked, a spoken message and animation will be played in the
display when a contact is activated.
If the same DTMF code is chosen for multiple relays the relays will be activated all together
3.11 Audio Settings
The default values for the speaker and microphone are generally correct at 50%. If you do want to
make adjustments upward, it is recommended to do this in small steps to avoid oscillation.
You can also set the volume of the spoken messages for calling, ending call, open door and incorrect
code.
You can make changes as required under audio codecs.
Enable Auditive feedback: when ringing the bell, opening the door, ending the call and entering an
incorrect code, a spoken message can be played together with the animation.
Four languages + neutral tones are pre‐programmed, but you can also personalize these texts.
Choose custom and upload your own files.
3.12 Video Settings
Edition 2.1 pg.10
