New Classic Edition 2.0
Product introduction

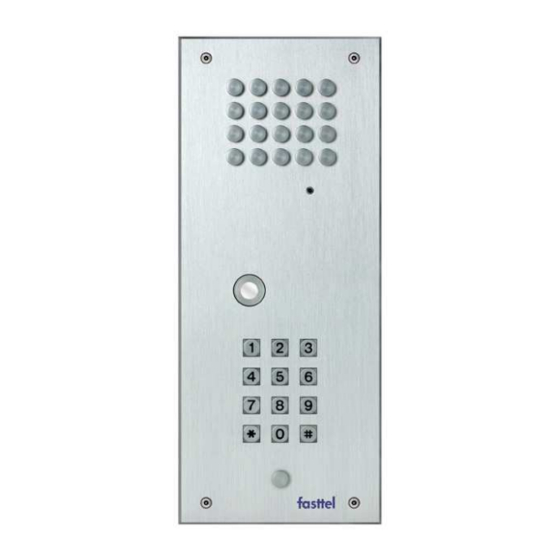

Congratulations with your new Fasttel® Wizard Classic. We are sure that this choice will
answer to all your demands in the area of doorphone systems. Please also browse through
the options and possibilities that Fasttel® can offer you.
The following products are available in the Wizard Classic series:
Wizard 1 push button, Wizard 2 push buttons, Wizard 3 push buttons, Wizard 1 push button
+ access control key pad, Wizard 2 push buttons + access control key pad, Wizard 3 push
buttons + access control key pad, Wizard SAS for flexible built in applications. All these
models can be equipped with or without camera.
Options :
Datalink (I/O module) FT4SW or FT8SW with plug in FTLON
PC programmable module
Speech module 2 x 8 seconds
T.V. Twisted pair video UHF module
LCD built-in video monitor
LCD desktop model video monitor
Video on PC kit
Video over TCP/IP system
FT2100: image and speech on Apple/Android/Windows PC
Technical characteristics
Alimentation
:18 AC – 1.16 A (24VDC if hardware version 9)
Camera
: 0,2 lux (option)
Video
: Twisted Pair (bv VVT, UTP, FTP,...) max 300 m..
Input
: Analogue line – 600 Ohm
Door contact
: 1 A – 24 Vac Dry contact
Dial tone detection
: 425 Hz +/- 30 %
Busy tone detection
: 500/500 Msec
Ring back detection
: 1000/3000 msec.
Speech detection
: 30 mV
Line current detection
: < 25 m A > 17 Volt DC
VSWR
: > 15 dB
Time out
: Max. 8 minutes
Data out
: optional LON module FT29LON
Comsumption
: without camera 420 mA AC
: with camera 520 mA AC
Dimensions Wizard 1 – 2 – 3
: 18,2 cm x 13 cm x 4 cm
: built-in dimensions 17 cm x 9,3 cm x 1,2 cm
FASTTEL Klipsenstraat 18A 9160 Lokeren
Tel : + 32 (0) 9 244 65 20 FAX:+ 32 (0) 9 244 65 29 Email:
Web :
WWW.FASTTEL.BE
2
info@fasttel.be
Advertisement
Table of Contents
Related Manuals for Fasttel Wizard Classic
Summary of Contents for Fasttel Wizard Classic
- Page 1 Manual Product introduction Congratulations with your new Fasttel® Wizard Classic. We are sure that this choice will answer to all your demands in the area of doorphone systems. Please also browse through the options and possibilities that Fasttel® can offer you.
-
Page 2: Table Of Contents
7. setting number of ring tones .......................... 11 - after the ……….set conversation time has ended (consult your installer) 8. Wizard Classic with access keyboard ......................12 - after a set ……..end conversation code has been entered (consult your installer) 9. Setting Day/Night............................13 10. -
Page 3: Forced Micro
Forced micro of door station micro maximum micro sensitivity on door station FASTTEL Klipsenstraat 18A 9160 Lokeren FASTTEL Klipsenstraat 18A 9160 Lokeren Tel : + 32 (0) 9 244 65 20 FAX:+ 32 (0) 9 244 65 29 Email: info@fasttel.be Tel : + 32 (0) 9 244 65 20 FAX:+ 32 (0) 9 244 65 29 Email: info@fasttel.be... -
Page 4: Installer Manual
1.unscrew the 4 screws in the corners of the front 2.pull of gently the front plate without harming wiring. FASTTEL Klipsenstraat 18A 9160 Lokeren FASTTEL Klipsenstraat 18A 9160 Lokeren Tel : + 32 (0) 9 244 65 20 FAX:+ 32 (0) 9 244 65 29 Email: info@fasttel.be... -
Page 5: Programmation Code
1*0/1*1 Doorcontact after pushing y/n 510/511 Complete reset of Wizard FASTTEL Klipsenstraat 18A 9160 Lokeren FASTTEL Klipsenstraat 18A 9160 Lokeren Tel : + 32 (0) 9 244 65 20 FAX:+ 32 (0) 9 244 65 29 Email: info@fasttel.be Tel : + 32 (0) 9 244 65 20 FAX:+ 32 (0) 9 244 65 29 Email: info@fasttel.be... -
Page 6: Setting Of Destinations
8. Wizard Classic with access keyboard ATTENTION The optional keyboard incorporated in the Wizard Classic can be used as: When using day/night mode, even codes Day, uneven codes Night 1. access control keyboard: as stand alone (40 codes of 4 digits)(default) or Wiegand 6. -
Page 7: Setting Day/Night
2 09 digit 9 2 10 digit 10 2 11 letter * Automatically FASTTEL Klipsenstraat 18A 9160 Lokeren FASTTEL Klipsenstraat 18A 9160 Lokeren Tel : + 32 (0) 9 244 65 20 FAX:+ 32 (0) 9 244 65 29 Email: info@fasttel.be Tel : + 32 (0) 9 244 65 20 FAX:+ 32 (0) 9 244 65 29 Email: info@fasttel.be... -
Page 8: Setting Max. Conversation Time
Extra function 15. Setting time (door) contact The wizard classic has thus 1 relay on board. The user can activate this relay by pushing the 2 on his This setting sets the time of the (door) contact. telephone keypad. If the user desires more than 1 relay or/and he wishes not to have the relay at the outside in the door phone the FT4SW or FT8SW offers the solution. -
Page 9: Setting Id Code
(ring back can not be heard) code 5 41 door station transparent (ring back can be heard) FASTTEL Klipsenstraat 18A 9160 Lokeren FASTTEL Klipsenstraat 18A 9160 Lokeren Tel : + 32 (0) 9 244 65 20 FAX:+ 32 (0) 9 244 65 29 Email: info@fasttel.be Tel : + 32 (0) 9 244 65 20 FAX:+ 32 (0) 9 244 65 29 Email: info@fasttel.be... -
Page 10: Video On Pc Kit Db9714
New Classic Edition 2.0 When you have a Wizard with video, you can install an Fasttel® LCD screen next to your phone to see your visitor. These LCD screens are available in wall building-in model or as desktop model. These monitors have an integrated UTP interface, which means that the video signal coming from the Wizard is transported over simple twisted pair cable.
