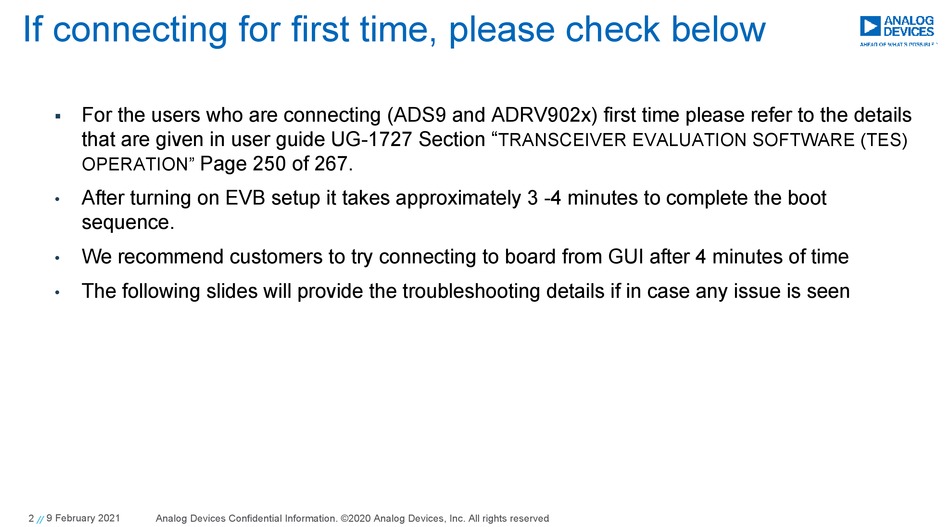

If connecting for first time, please check below
For the users who are connecting (ADS9 and ADRV902x) first time please refer to the details
§
that are given in user guide UG-1727 Section "
Page 250 of 267.
OPERATION"
After turning on EVB setup it takes approximately 3 -4 minutes to complete the boot
•
sequence.
We recommend customers to try connecting to board from GUI after 4 minutes of time
•
The following slides will provide the troubleshooting details if in case any issue is seen
•
9 February 2021
2 Analog Devices Confidential Information. ©2020 Analog Devices, Inc. All rights reserved.
//
TRANSCEIVER EVALUATION SOFTWARE (TES)
