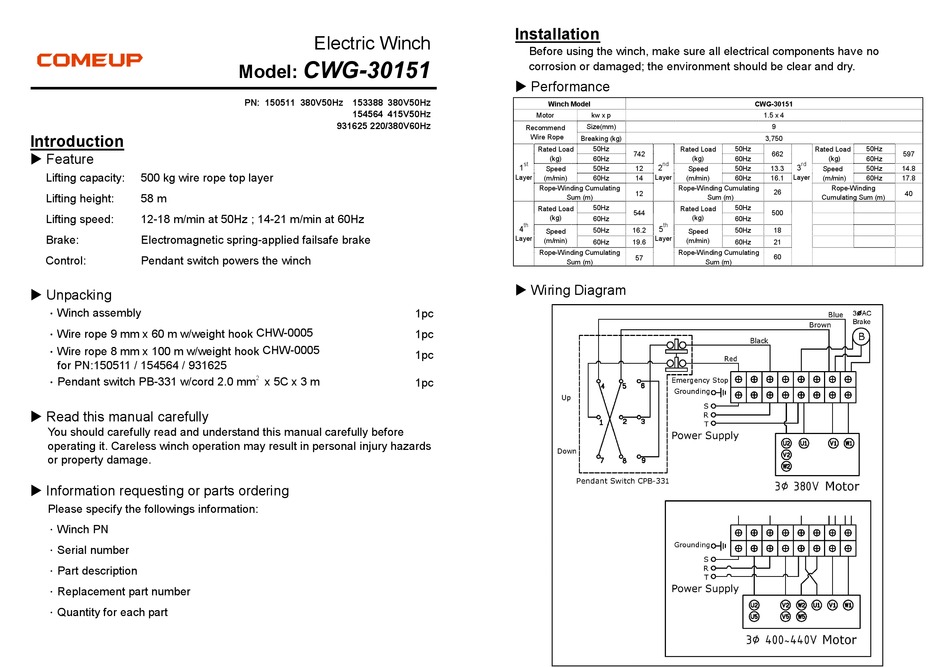

Comeup CWG-30151 Quick Start Manual

Introduction
 Feature
Lifting capacity: 500 kg wire rope top layer
Lifting height: 58 m
Lifting speed: 12-18 m/min at 50Hz ; 14-21 m/min at 60Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 9 mm x 60 m w/weight hook CHW-0005
．Wire rope 8 mm x 100 m w/weight hook CHW-0005
for PN:150511 / 154564 / 931625
．Pendant switch PB-331 w/cord 2.0 mm
 Read this manual carefully
You should carefully read and understand this manual carefully before
operating it. Careless winch operation may result in personal injury hazards
or property damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part

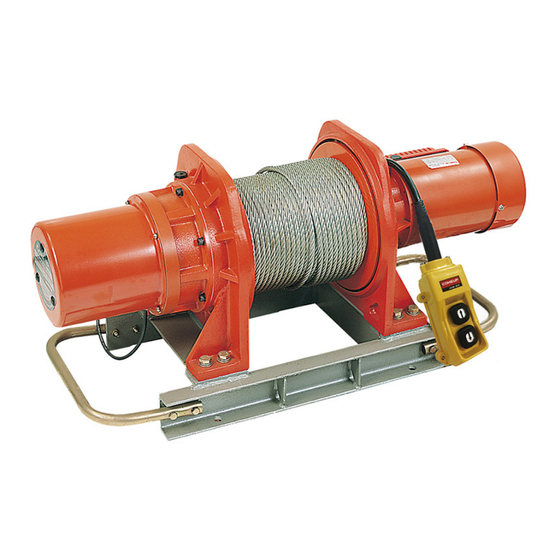

Electric Winch
CWG-30151
Model:
PN: 150511 380V50Hz 153388 380V50Hz
154564 415V50Hz
931625 220/380V60Hz
1pc
1pc
1pc
2
x 5C x 3 m
1pc
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor kw x p
Size(mm)
Recommend
Wire Rope
Breaking (kg)
Rated Load 50Hz Rated Load
742
(kg) 60Hz (kg)
st nd
1 2
Speed 50Hz 12 Speed
Layer Layer
(m/min) 60Hz 14 (m/min)
Rope-Winding Cumulating Rope-Winding Cumulating
12
Sum (m)
50Hz
Rated Load Rated Load
544
(kg) (kg)
60Hz
th th
4 5
50Hz 16.2
Speed Speed
Layer Layer
(m/min) (m/min)
60Hz 19.6
Rope-Winding Cumulating Rope-Winding Cumulating
57
Sum (m)
 Wiring Diagram
CWG-30151
1.5 x 4
9
3,750
50Hz Rated Load 50Hz
662
60Hz (kg) 60Hz
rd
3
50Hz 13.3 Speed 50Hz
Layer
60Hz 16.1 (m/min) 60Hz
Rope-Winding
26
Sum (m) Cumulating Sum (m)
50Hz
500
60Hz
50Hz 18
60Hz 21
60
Sum (m)
597
14.8
17.8
40
