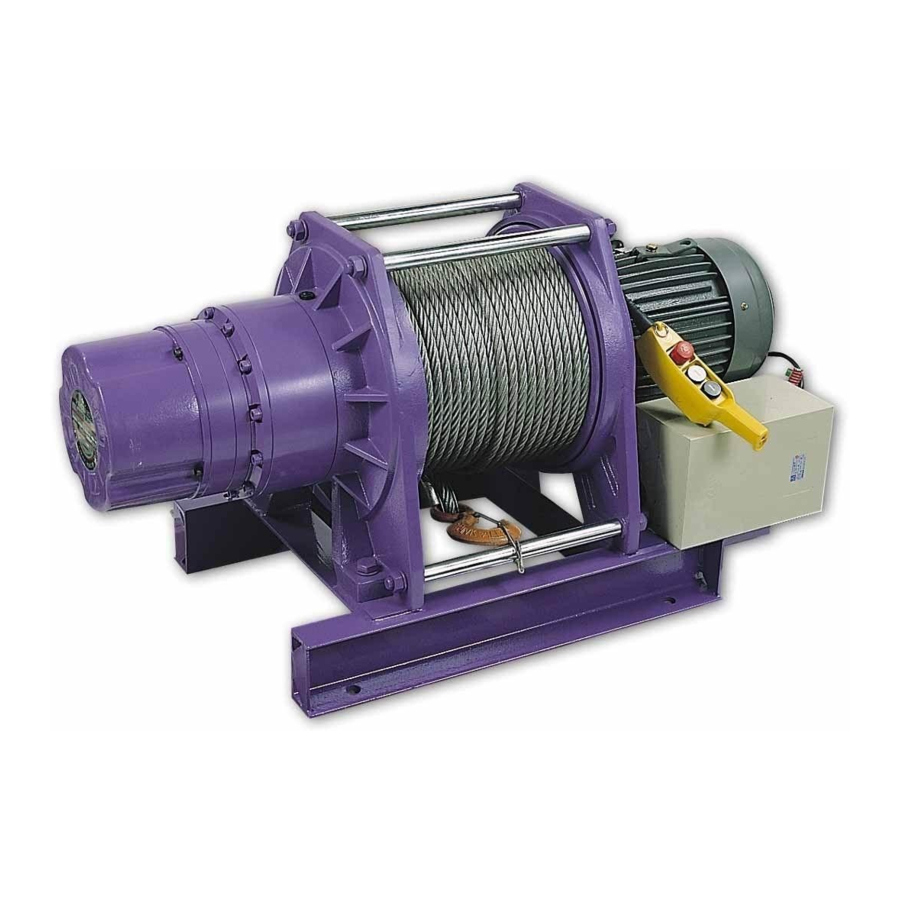

Comeup CWG-30750 Introduction

Introduction
Feature
Lifting capacity:
Lifting height:
Lifting speed:
Brake:
Control:
Unpacking
．Winch assembly
．Wire rope 16 mm x 100 m w/safety hook except for PN:150009
．Wire rope 14 mm x 150 m w/safety hook for PN:151415
．Low voltage control ass'y LV-320
．Pendant switch CPB-161 w/cord 1.25 mm
．Pendant switch CPB-161 w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
PN: w/3.8kw x 6P motor
2,200 kg at 50Hz wire rope top layer
97 m
4P: 6.9-12.6 m/min at 50Hz ; 6P: 4.5-8.3 m/min at 50Hz
Electromagnetic spring-applied failsafe brake
Pendant switch powers the winch
CWG-30750
Model:
156577 380V50Hz
2
x 3C x 3 m
2
x 3C x 6 m for PN 931505 1pc
Electric Winch
PN: w/5.5kw x 4P motor
150009 380V50Hz 158322 380V50Hz
151415 380V50Hz 158762 415V50Hz
152860 440V50Hz 931505 400V50Hz
1pc
1pc
1pc
1pc
1pc
