Introduction
Feature
Lifting capacity:
Lifting height:
Lifting speed:
Brake:
Control:
Unpacking
．Winch assembly
．Wire rope 10 mm x 60 m w/safety hook
．Low voltage control ass'y LV-320
．Pendant switch PB-306 w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
900 kg at 50Hz wire rope top layer
58 m
4P: 13-20.6 m/min at 50Hz ; 6P: 8.5-13.5 m/min at 50Hz
Electromagnetic spring-applied failsafe brake
Pendant switch powers the winch

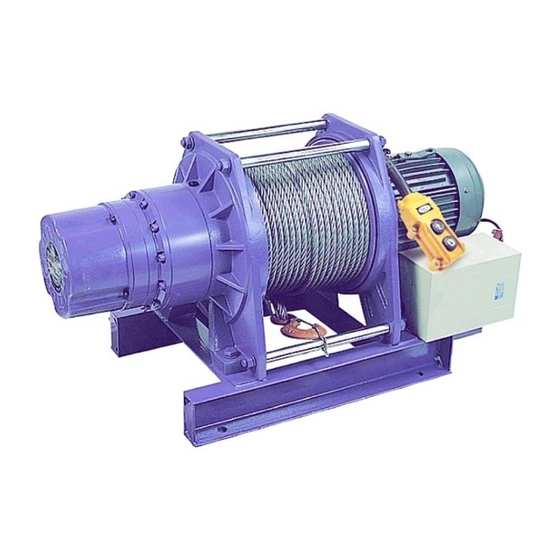

Electric Winch
CWG-30375
Model:
PN: w/3.8kw x 4P motor
153750 220V50Hz 155730 380V50Hz
156581 400V50Hz
2
x 3C x 3 m
152547 415V50Hz
154123 415V50Hz
1pc
1pc
1pc
1pc
