Comeup CWG-30750 Manual
Hide thumbs Also See for CWG-30750:

Advertisement

Quick Links

Introduction
 Feature
Lifting capacity:
1,800 kg at 60Hz wire rope top layer
Lifting height:
97 m
Lifting speed:
4P: 8-15 m/min at 60Hz
Brake:
Electromagnetic spring-applied failsafe brake
Control:
Pendant switch powers the winch
 Unpacking
.Winch assembly
.Wire rope 16 mm x 100 m w/safety hook except for PN:159641
.Low voltage control ass'y LV-320
.Pendant switch PB-306 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
.Winch PN
.Serial number
.Part description
.Replacement part number
.Quantity for each part

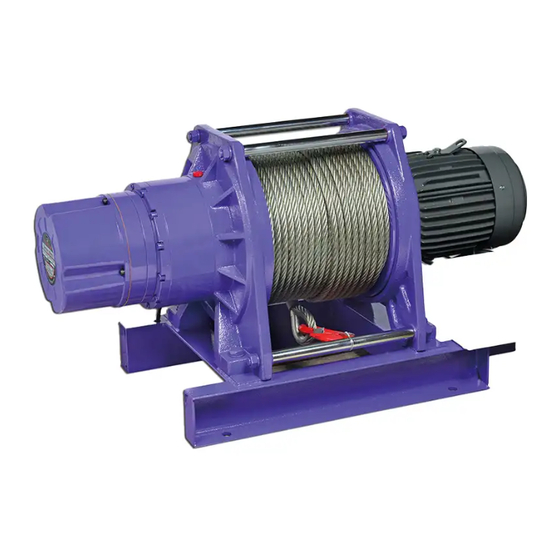

Electric Winch
CWG-30750
Model:
PN: w/5.5kw x 4P motor
150750 440V60Hz 157789 460V60Hz
159641 400V60Hz
150748 480V60Hz
1pc
1pc
1pc
2
x 3C x 3 m
1pc
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor
kwxp
Size(mm)
Recommended
Wire Rope
Breaking (kg)
Rated Load
Rated Load
60Hz
3,300
(kg)
st
nd
1
2
Speed
60Hz
8.0
Layer
(m/min)
Layer
Rope-Winding Cumulating
11
Sum (m)
Cumulating Sum (m)
Rated Load
Rated Load
60Hz
2,200
(kg)
th
th
4
5
Speed
60Hz
12.5
Layer
(m/min)
Layer
Rope-Winding Cumulating
55
Sum (m)
Cumulating Sum (m)
 Wiring Diagram
Warning
.The winch is not intended to be used in any manner for the movement or
lifting of personnel.
.The lifting capacity shown is based on the top layer of rope on the drum.
.The rope winding on the drum shall remain 5 wraps from the drum.
CWG-30750
5.5 x 4
16
11,900
Rated Load
60Hz
2,800
60Hz
(kg)
(Kg)
rd
3
Speed
Speed
60Hz
9.7
60Hz
(m/min)
Layer
(M/min)
Rope-Winding
Rope-Winding
24
Cumulating Sum (m)
Rated Load
60Hz
2,000
60Hz
(kg)
(kg)
th
6
Speed
Speed
60Hz
13.9
60Hz
(m/min)
Layer
(m/min)
Rope-Winding
Rope-Winding
73
Cumulating Sum (m)
2,400
11.1
38
1,800
15
97
