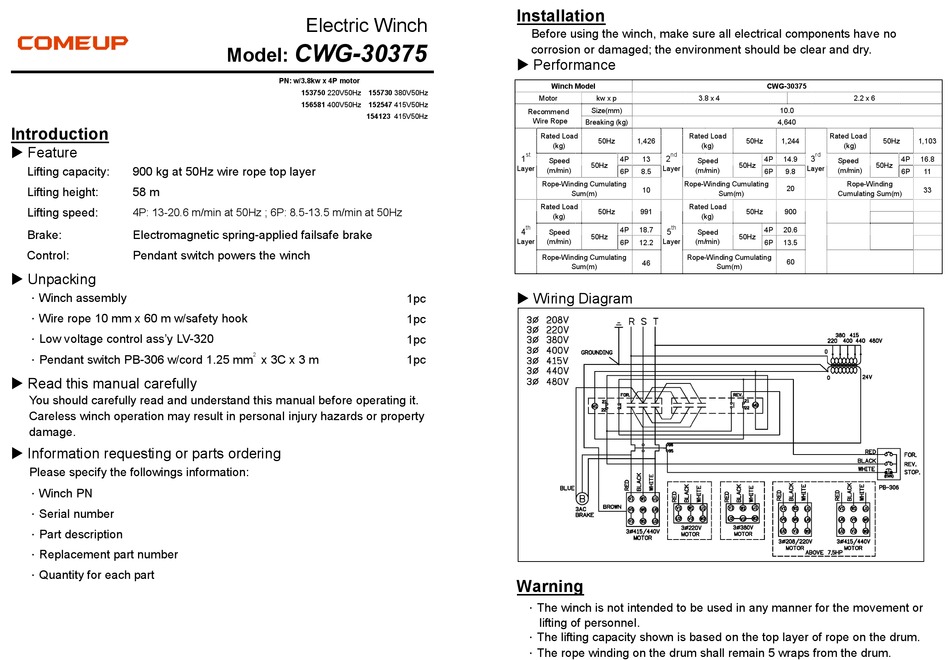

Comeup CWG-30375 Quick Start Manual

Introduction

 Feature
Lifting capacity: 900 kg at 50Hz wire rope top layer
Lifting height: 58 m
Lifting speed:
4P: 13-20.6 m/min at 50Hz ; 6P: 8.5-13.5 m/min at 50Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 10 mm x 60 m w/safety hook
．Low voltage control ass'y LV-320
．Pendant switch PB-306 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
Electric Winch
CWG-30375
Model:
PN: w/3.8kw x 4P motor
153750 220V50Hz 155730 380V50Hz
156581 400V50Hz 152547 415V50Hz
154123 415V50Hz
2
x 3C x 3 m

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor
Recommend
Wire Rope
Breaking (kg)
Rated Load
(kg)
st
1
Speed
Layer
(m/min)
Rope-Winding Cumulating
Sum(m)
Rated Load
(kg)
th
4
Speed
Layer (m/min)
Rope-Winding Cumulating
Sum(m)
 Wiring Diagram
1pc
1pc
1pc
1pc

Warning

．The winch is not intended to be used in any manner for the movement or
lifting of personnel.
．The lifting capacity shown is based on the top layer of rope on the drum.
．The rope winding on the drum shall remain 5 wraps from the drum.
CWG-30375
kw x p 3.8 x 4
Size(mm)
Rated Load
50Hz 1,426 50Hz
(kg)
nd
2
4P 13 4P
Speed
50Hz 50Hz
Layer
(m/min)
6P 8.5 6P
Rope-Winding Cumulating
10
Sum(m)
Rated Load
50Hz 991 50Hz
(kg)
th
4P 18.7 4P
5
Speed
50Hz 50Hz
Layer (m/min)
6P 12.2 6P
Rope-Winding Cumulating
46
Sum(m)
2.2 x 6
10.0
4,640
Rated Load
1,244 50Hz 1,103
(kg)
rd
3
14.9 4P 16.8
Speed
50Hz
Layer
(m/min)
9.8 6P 11
Rope-Winding
20
33
Cumulating Sum(m)
900
20.6
13.5
60
