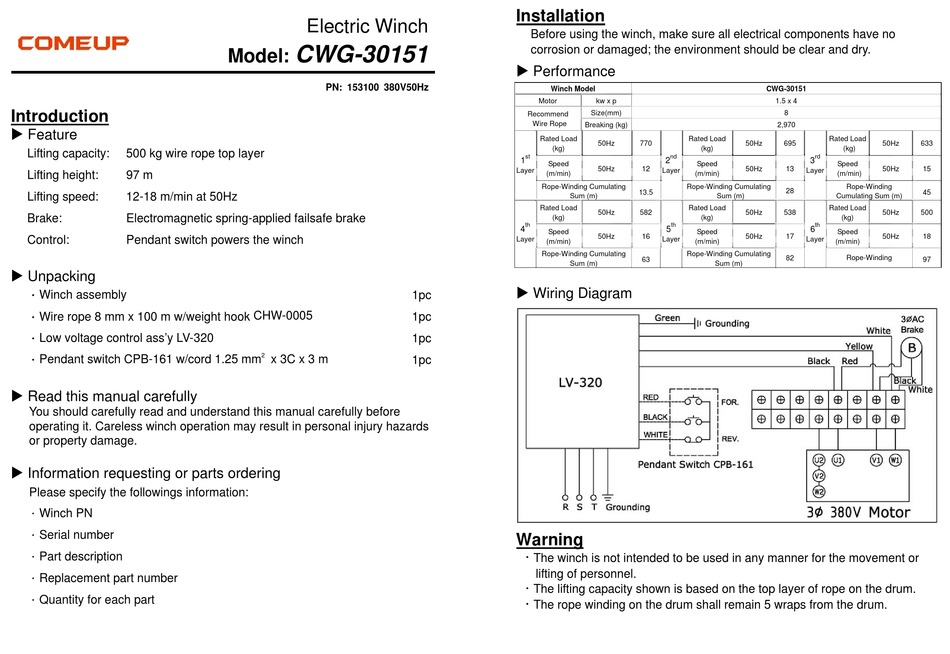

Comeup CWG-30151 Quick Start Manual

Introduction

 Feature
Lifting capacity: 500 kg wire rope top layer
Lifting height: 97 m
Lifting speed: 12-18 m/min at 50Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 8 mm x 100 m w/weight hook CHW-0005
．Low voltage control ass'y LV-320
．Pendant switch CPB-161 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual carefully before
operating it. Careless winch operation may result in personal injury hazards
or property damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part

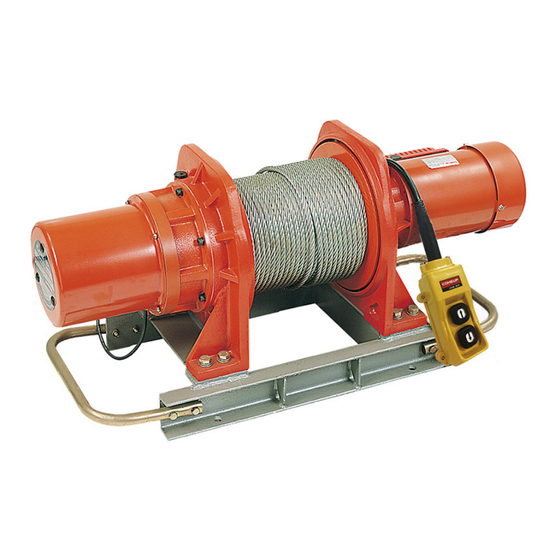

Electric Winch
CWG-30151
Model:
PN: 153100 380V50Hz
2
x 3C x 3 m

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor
Size(mm)
Recommend
Wire Rope
Breaking (kg)
Rated Load
(kg)
st
1
Speed
Layer
(m/min)
Rope-Winding Cumulating
Sum (m)
Rated Load
(kg)
th
4
Speed
Layer
(m/min)
Rope-Winding Cumulating
Sum (m)
 Wiring Diagram
1pc
1pc
1pc
1pc

Warning

． The winch is not intended to be used in any manner for the movement or
lifting of personnel.
． The lifting capacity shown is based on the top layer of rope on the drum.
． The rope winding on the drum shall remain 5 wraps from the drum.
CWG-30151
kw x p 1.5 x 4
Rated Load
50Hz 770 50Hz
(kg)
nd
2
Speed
50Hz 12 50Hz
Layer
(m/min)
Rope-Winding Cumulating
13.5
Sum (m)
Rated Load
50Hz 582 50Hz
(kg)
th
5
Speed
50Hz 16 50Hz
Layer
(m/min)
Rope-Winding Cumulating
63
Sum (m)
8
2,970
Rated Load
695 50Hz 633
(kg)
rd
3
Speed
13 50Hz 15
Layer
(m/min)
Rope-Winding
28
45
Cumulating Sum (m)
Rated Load
538 50Hz 500
(kg)
th
6
Speed
17 50Hz 18
Layer
(m/min)
Rope-Winding
82
97
