Comeup CWG-31500 Manual
Electric winch
Hide thumbs
Also See for CWG-31500:
- Quick start manual (2 pages) ,
- Manual (2 pages) ,
- Instruction manual (25 pages)
Table of Contents
Advertisement
Quick Links
Introduction
Feature
Lifting capacity
Lifting height
Lifting speed
Brake
Control
Unpacking
．Winch assembly
．Wire rope 16 mm x 200 m w/safety hook for PN:153059
．Wire rope 18 mm x 150 m w/safety hook for PN:155182,159521
．Low voltage control ass'y LV-320
．Pendant switch CPB-161 w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual carefully before
operating it. Careless winch operation may result in personal injury hazards
or property damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch part number
．Part description
．Quantity for each part
．Serial number
．Replacement part number
3,500 kg at 50Hz wire rope top layer
144 m
6P: 5.8-8 m/min at 50Hz ; 8P: 4.4-6 m/min at 50Hz
Electromagnetic spring-applied failsafe brake
Pendant switch powers the winch

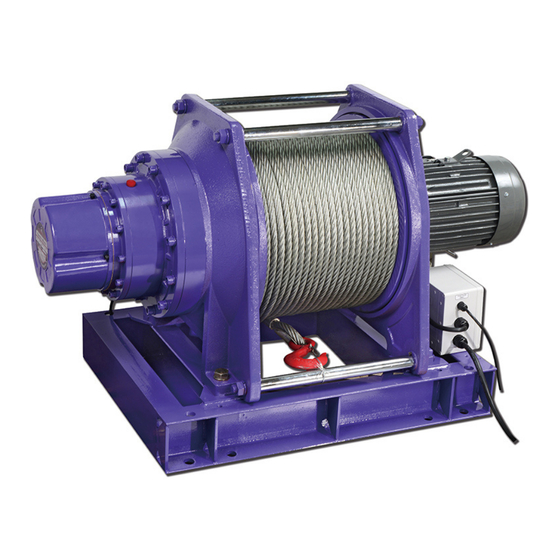

Electric Winch
CWG-31500
Model:
P/N: w/5.5 kw x 6P motor
153059 380V50Hz 155182 380V50Hz
2
x 3C x 3 m
159521 415V50Hz
1pc
1pc
1pc
1pc
1pc
