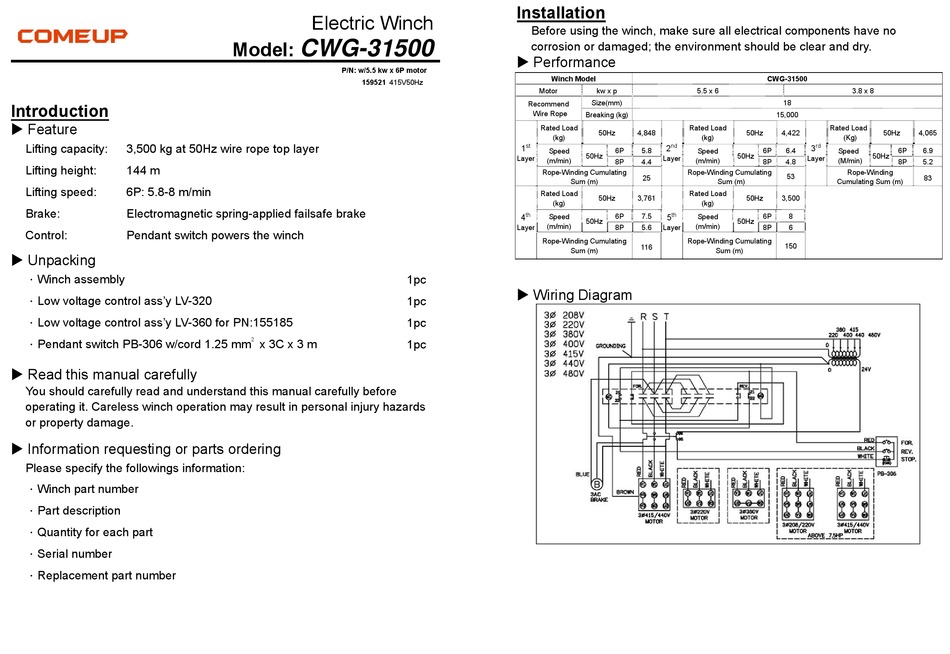

Comeup CWG-31500 Quick Start Manual

Introduction
 Feature
Lifting capacity: 3,500 kg at 50Hz wire rope top layer
Lifting height: 144 m
Lifting speed: 6P: 5.8-8 m/min
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Low voltage control ass'y LV-320
．Low voltage control ass'y LV-360 for PN:155185
．Pendant switch PB-306 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual carefully before
operating it. Careless winch operation may result in personal injury hazards
or property damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch part number
．Part description
．Quantity for each part
．Serial number
．Replacement part number

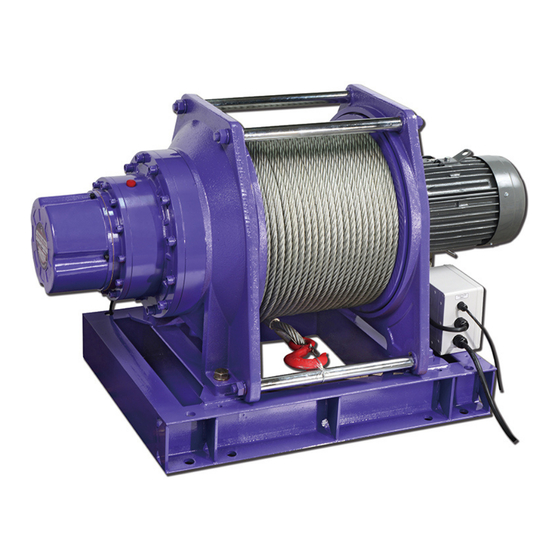

Electric Winch
Model: CWG-31500
P/N: w/5.5 kw x 6P motor
159521 415V50Hz
1pc
1pc
1pc
2
x 3C x 3 m 1pc
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor kw x p
Size(mm)
Recommend
Wire Rope
Breaking (kg)
Rated Load Rated Load
50Hz 4,848
(kg)
st nd
1 2
6P 5.8
Speed
50Hz
Layer Layer
(m/min) (m/min)
8P 4.4
Rope-Winding Cumulating Rope-Winding Cumulating
25
Sum (m)
Rated Load Rated Load
50Hz 3,761
(kg)
th th
4 Speed 6P 7.5 5
50Hz
(m/min) (m/min)
Layer 8P 5.6 Layer
Rope-Winding Cumulating Rope-Winding Cumulating
116
Sum (m)
 Wiring Diagram
CWG-31500
5.5 x 6 3.8 x 8
18
15,000
Rated Load
50Hz 4,422
(kg) (Kg)
rd
3
6P 6.4
Speed Speed
50Hz 50Hz
Layer
(M/min)
8P 4.8
Rope-Winding
53
Sum (m) Cumulating Sum (m)
50Hz 3,500
(kg)
Speed 6P 8
50Hz
8P 6
150
Sum (m)
50Hz 4,065
6P 6.9
8P 5.2
83
