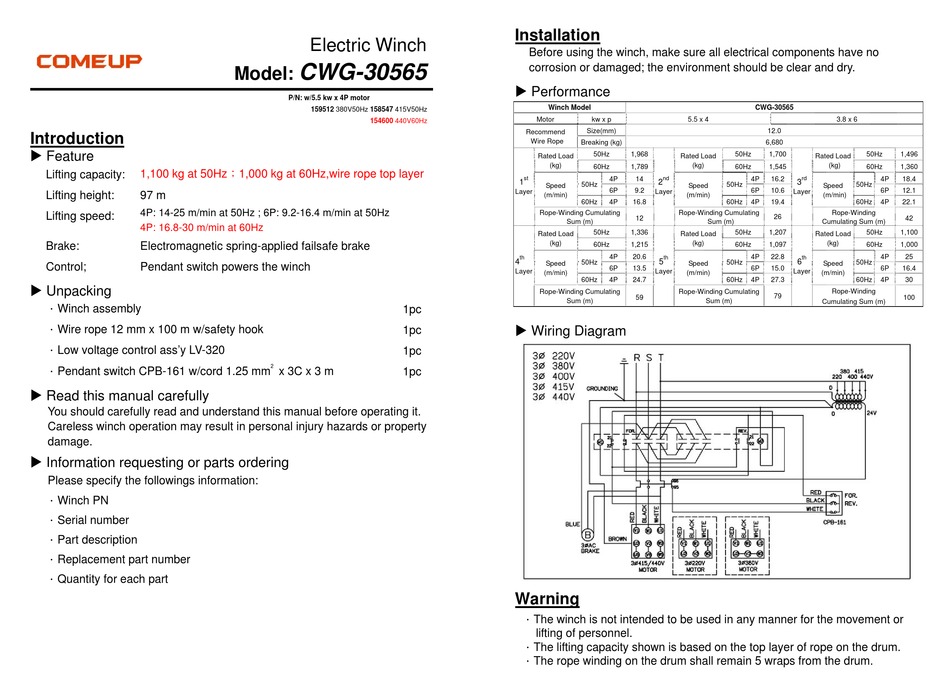

Comeup CWG-30565 Manual

Introduction

 Feature
Lifting capacity: 1,100 kg at 50Hz；1,000 kg at 60Hz,wire rope top layer
Lifting height: 97 m
4P: 14-25 m/min at 50Hz ; 6P: 9.2-16.4 m/min at 50Hz
Lifting speed:
4P: 16.8-30 m/min at 60Hz
Brake: Electromagnetic spring-applied failsafe brake
Control; Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 12 mm x 100 m w/safety hook
．Low voltage control ass'y LV-320
．Pendant switch CPB-161 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part

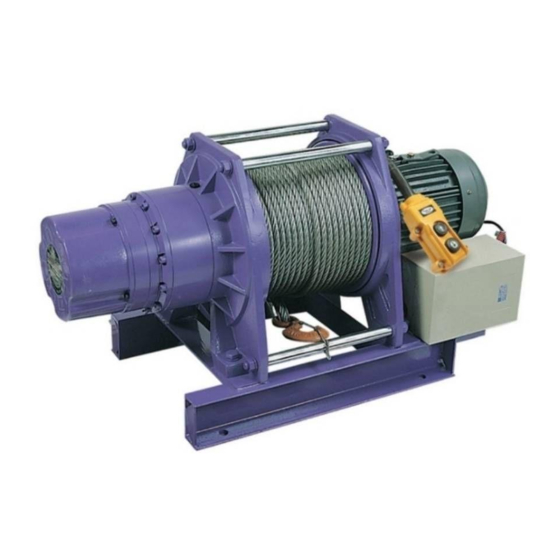

Electric Winch
CWG-30565
Model:
P/N: w/5.5 kw x 4P motor
159512 380V50Hz 158547 415V50Hz
154600 440V60Hz
1pc
1pc
1pc
2
x 3C x 3 m 1pc

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor kw x p 5.5 x 4
Size(mm)
Recommend
Wire Rope
Breaking (kg)
50Hz 1,968
Rated Load Rated Load
(kg) (kg)
60Hz 1,789
st 4P 14 nd
1 2
50Hz
Speed Speed
6P 9.2
Layer Layer
(m/min) (m/min)
60Hz 4P 16.8
Rope-Winding Cumulating Rope-Winding Cumulating
12
Sum (m)
50Hz 1,336
Rated Load Rated Load
(kg) (kg)
60Hz 1,215
4P 20.6
th th
4 5
50Hz
Speed Speed
6P 13.5
Layer Layer
(m/min) (m/min)
60Hz 4P 24.7
Rope-Winding Cumulating Rope-Winding Cumulating
59
Sum (m)
 Wiring Diagram

Warning

．The winch is not intended to be used in any manner for the movement or
lifting of personnel.
．The lifting capacity shown is based on the top layer of rope on the drum.
．The rope winding on the drum shall remain 5 wraps from the drum.
CWG-30565
3.8 x 6
12.0
6,680
50Hz 1,700 50Hz
Rated Load
(kg)
60Hz 1,545 60Hz
4P 16.2 rd 4P
3
50Hz 50Hz
Speed
6P 10.6 6P
Layer
(m/min)
60Hz 4P 19.4 60Hz 4P
Rope-Winding
26
Sum (m) Cumulating Sum (m)
50Hz 1,207 50Hz
Rated Load
(kg)
60Hz 1,097 60Hz
4P 22.8 4P
th
6
50Hz 50Hz
Speed
6P 15.0 6P
Layer
(m/min)
60Hz 4P 27.3 60Hz 4P
Rope-Winding
79
Sum (m)
Cumulating Sum (m)
1,496
1,360
18.4
12.1
22.1
42
1,100
1,000
25
16.4
30
100
