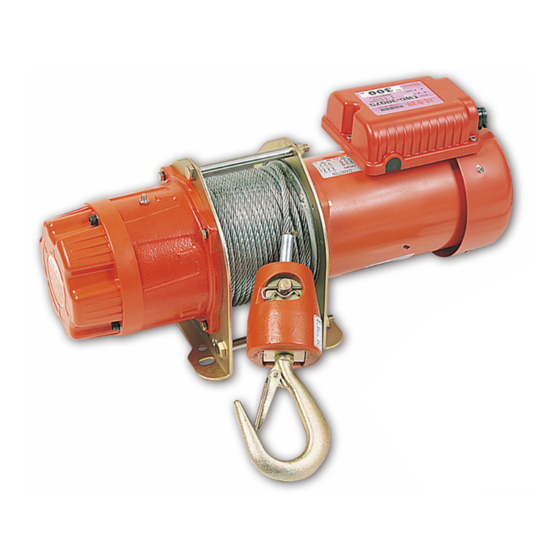

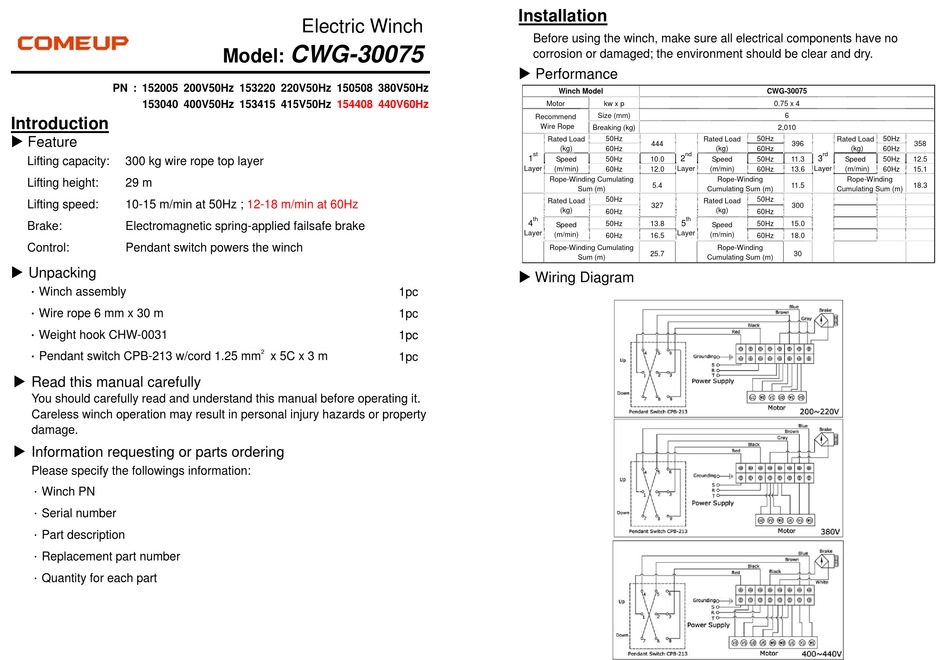

Comeup CWG-30075 Quick Start Manual

PN : 152005 200V50Hz 153220 220V50Hz 150508 380V50Hz
153040 400V50Hz 153415 415V50Hz

Introduction

 Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height: 29 m
Lifting speed: 10-15 m/min at 50Hz ;
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 6 mm x 30 m
．Weight hook CHW-0031
．Pendant switch CPB-213 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
Electric Winch
CWG-30075
Model:
154408 440V60Hz
12-18 m/min at 60Hz
1pc
1pc
1pc
2
x 5C x 3 m
1pc

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor kw x p
Size (mm)
Recommend
Wire Rope
Breaking (kg)
50Hz
Rated Load
444
(kg)
60Hz
st nd
1 2
Speed 50Hz 10.0
Layer Layer
(m/min) 60Hz 12.0
Rope-Winding Cumulating
5.4
Sum (m)
50Hz
Rated Load
327
(kg)
60Hz
th th
4 5
50Hz 13.8
Speed
Layer Layer
(m/min)
60Hz 16.5
Rope-Winding Cumulating
25.7
Sum (m)
 Wiring Diagram
CWG-30075
0.75 x 4
6
2,010
50Hz 50Hz
Rated Load Rated Load
396
(kg) (kg)
60Hz 60Hz
rd
3
Speed 50Hz 11.3 Speed 50Hz
Layer
(m/min) 60Hz 13.6 (m/min) 60Hz
Rope-Winding Rope-Winding
11.5
Cumulating Sum (m) Cumulating Sum (m)
50Hz
Rated Load
300
(kg)
60Hz
50Hz 15.0
Speed
(m/min)
60Hz 18.0
Rope-Winding
30
Cumulating Sum (m)
358
12.5
15.1
18.3
