Introduction
Feature
Lifting capacity:
Lifting height:
Lifting speed:
Brake:
Control;
Unpacking
．Winch assembly
．Wire rope 12 mm x 100 m w/safety hook
．Low voltage control ass'y LV-320
．Pendant switch CPB-161 w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
1,100 kg at 50Hz wire rope top layer
97 m
4P: 14-25 m/min at 50Hz ; 6P: 9.2-16.4 m/min at 50Hz
Electromagnetic spring-applied failsafe brake
Pendant switch powers the winch

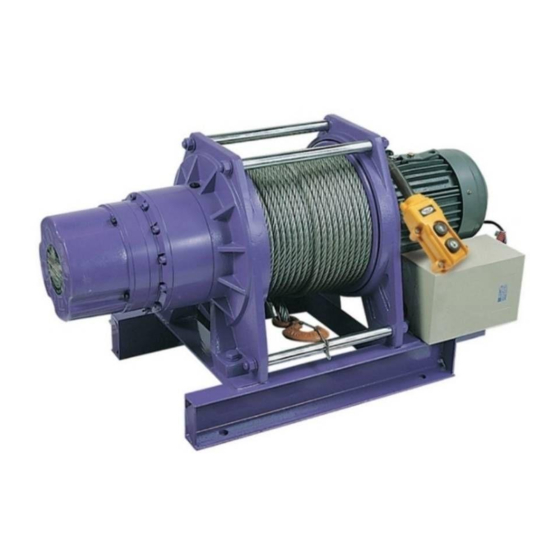

Electric Winch
CWG-30565
Model:
P/N: w/5.5 kw x 4P motor
2
x 3C x 3 m
159512 380V50Hz
158547 415V50Hz
1pc
1pc
1pc
1pc
Advertisement
Related Manuals for Comeup CWG-30565
Summary of Contents for Comeup CWG-30565
- Page 1 Electric Winch CWG-30565 Model: P/N: w/5.5 kw x 4P motor 159512 380V50Hz 158547 415V50Hz Introduction Feature Lifting capacity: 1,100 kg at 50Hz wire rope top layer Lifting height: 97 m Lifting speed: 4P: 14-25 m/min at 50Hz ; 6P: 9.2-16.4 m/min at 50Hz...
- Page 2 Installation Before using the winch, make sure all electrical components have no corrosion or damaged; the environment should be clear and dry. Performance Winch Model CWG-30565 Motor kw x p 5.5 x 4 3.8 x 6 Size(mm) 12.0 Recommend Wire Rope...
- Page 3 Parts List Item No. Description Part No. Motor kit As arranged Motor support rack kit 880723 Drum kit 880724 Connect shaft kit 880725 Tie bar kit 880726 Gearbox support rack kit 880727 stage carrier kit 881576 Ring gear kit 880730 stage carrier kit 881577 shaft kit...
- Page 4 Winch Assembly...
