Comeup CWG-30565 Manual

Introduction
Feature
Lifting capacity:
Lifting height:
Lifting speed:
Brake:
Control;
Unpacking
．Winch assembly
．Wire rope 12 mm x 100 m w/safety hook
．Low voltage control ass'y LV-320
．Low voltage control ass'y LV-360 for PN:155566
．Pendant switch PB-306 w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
1,100 kg at 50Hz ； 1,000 kg at 60Hz ， wire rope top layer
97 m
4P: 14-25 m/min at 50Hz ; 6P: 9.2-16.4 m/min at 50Hz
4P: 16.8-30 m/min at 60Hz
Electromagnetic spring-applied failsafe brake
Pendant switch powers the winch

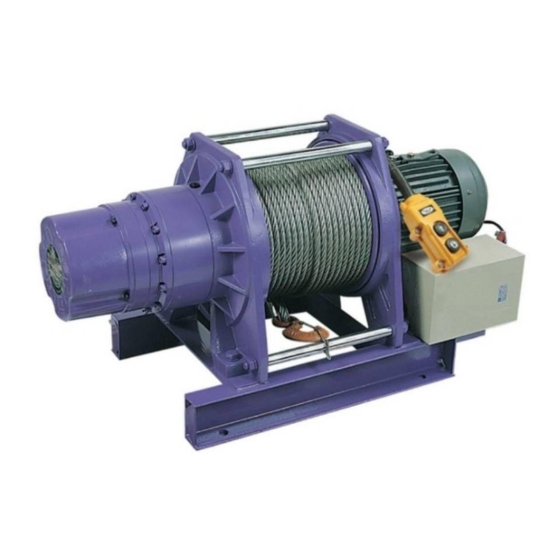

Electric Winch
CWG-30565
Model:
P/N: w/5.5 kw x 4P motor
156828 380V50Hz
159816 415V50Hz
152652 415V50Hz
2
x 3C x 3 m
152258 400V50Hz
152480 480V60Hz
155566 220V50Hz
1pc
1pc
1pc
1pc
1pc
