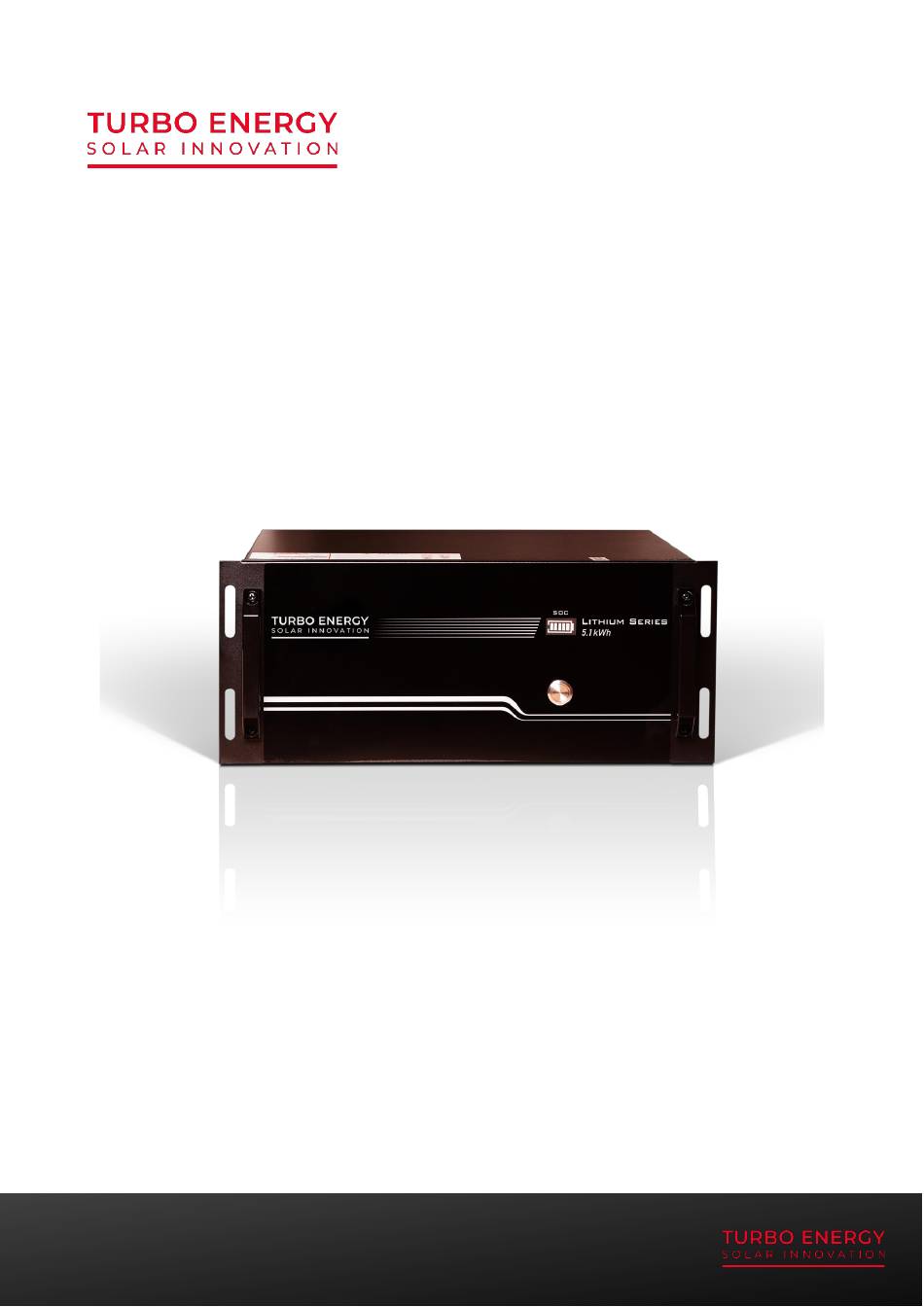

  • Page 1 Instruction manual Lithium Series 48V 5.1 kWh Battery https://www.turbo-e.com/...

  • Page 2: Table Of Contents

    Read this manual before installing the battery and follow the instructions carefully during the installation process. Content 1. Scope ........................3 2. Specifications ......................3 3. Battery Dimensions ....................4 4. Features ........................4 5. Operation ........................ 5 5.1. Battery front ...................... 5 5.2.

  • Page 3: Scope

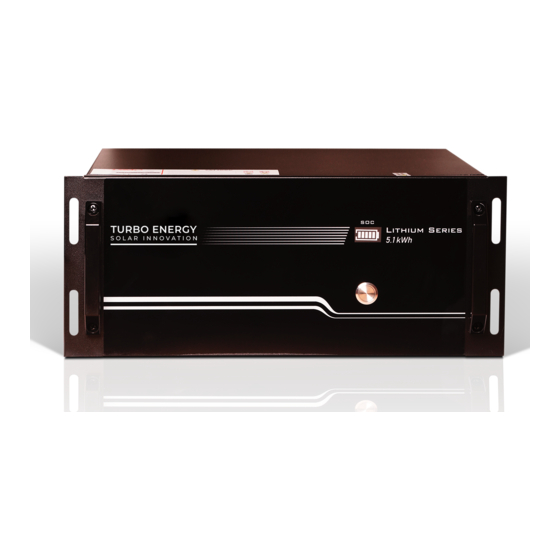

    1. Scope This document describes the basic operation of the Turbo Energy brand lithium- ion rechargeable battery (Lithium Series 48V 5.1 kWh model). This manual contains all the necessary details for understanding the operation of the equipment and for its correct application.

  • Page 4: Battery Dimensions

    3. Battery Dimensions 4. Features The Lithium Series 48V 5.1 kWh battery has the following features: Designed for use in photovoltaic applications. • Battery Management System (BMS): The BMS system built into the battery • that monitors its operation and does not allow it to work outside the bounds of the design regime (V, I).

  • Page 5: Operation

    5. Operation SOC: State of 5.1. Battery front Charge ON/OFF 5.2. Battery back Communicagtion port Puerto de comunicaciones DIP switch Interruptor DIP Connection cable 25 mm Cable con conector 25 mm 5.3. Assembly and connection Batteries may be connected in parallel up to a maximum of 6. All batteries must be grounded.
  • Page 6 Cable de Battery communications comunicaciones cable entre baterías • Connection between battery and inverter: Inverter connection Battery connection 25 mm power cable section.

  • Page 7: Configuration Without Communications

    NOTE: Each power cord can carry a maximum of 100 A, so every two batteries would need to connect a new cable to the inverter. However, if the inverter is 5 kW only with one cable it would be sufficient to be at the limit of the maximum current recommended.

  • Page 8: Configuration With Communications

    5.3.2. Configuration with communications Communication cable: It will be configured one way or another depending on the inverter used. Cable configuration Hybrid Inverter Turbo Energy/ Goodwe/SMA Inverter Turbo Lithium Series 48V 5,1 kWh Energy/Goodwe/ SMA Battery RJ45 connector RJ45 connector...
  • Page 9 DIP CONFIGURATION (Rest of the batteries). (Master battery) Important: Connect the specific communication cable supplied by the provider. Connect the communication cable between Batteries. Configuration Hybrid Inverter Turbo Energy/Goodwe 1=ON 0=OFF DIP CONFIGURATION DIP CONFIGURATION (Master battery) (Rest of the batteries) Important: Connect the specific communication cable supplied by the provider.

  • Page 10: On And Off

    5.4. On and Off To turn on, press the power button for 2-4 seconds. The BMS will start and the LCD screen and the power button will also light up. To turn off the batteries, press the power button for more than 5 seconds. When the power button is pressed for <5 seconds while the battery is running, the LCD will turn on for 30 seconds.

  • Page 11: Error Codes

    5.7. Error codes LED Alarm light: 2 flickers Green light: N. º flickers = error code...

  • Page 12: Appendix

    If the battery constantly runs for 30 days and its SOC has not been corrected, the discharge function will not be available until the battery is fully charged at least once and the SOC is corrected. In case of parallel mode or work mode, if Protection 09 appears and the power button is pressed 5 times within 10 seconds, the BMS will be forced to turn on MOS of discharge so that the inverter can detect the battery voltage and the battery can be charged.

  • Page 13: Environmental Protection

    6.3. Environmental Protection Turbo Energy's batteries comply with EU ROHS regulations. 6.4. Contact details For any incident with the battery write, indicating your contact details, an email to the address: info@turbo-e.com...
