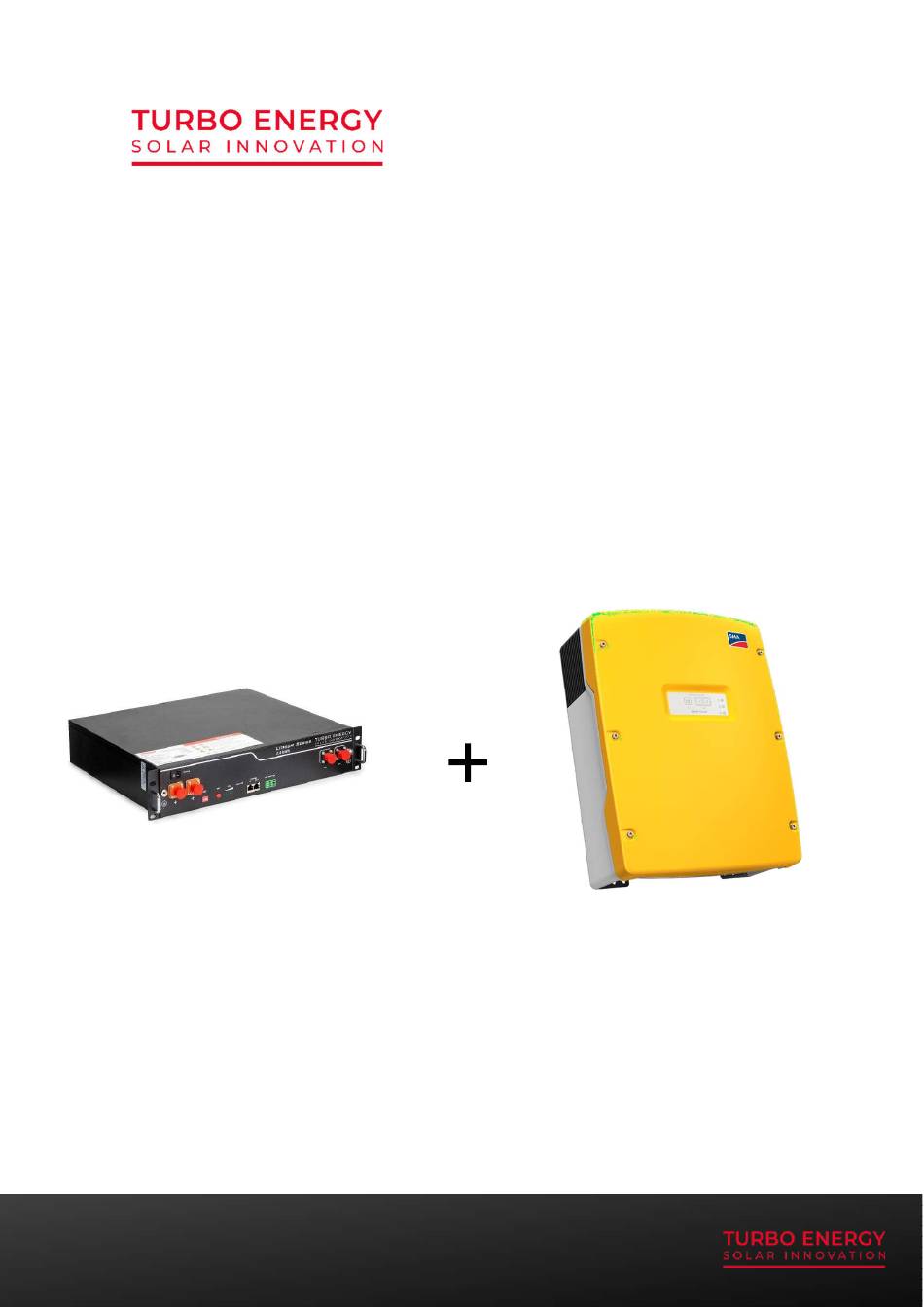

- Page 1 QUICK INSTALLATION GUIDE BATTERY LITHIUM SERIES 48V 2.4 kWh INVERTER SMA SUNNY ISLAND 6.0H https://www.turbo-e.com/...
- Page 2 1. Cable connect in inverter Keep both inverter and battery completely off. Connect power cable and Battery-Inverter Communication cable to inverter firstly. This comm cable from inverter RJ45 port（ComSyncIn） to Battery IN port. It’s a standard cable that PIN sequence is T-568B on the 2 sides. 2.
- Page 3 3. Connect the power cable to battery system Generally, we use 1 pair of power cable, and connect them diagonally, one is on the top and another one is on the bottom. But when the inverter power more than 5kW, we recommend customer to connect 2 pairs of power cables, as the below shows.
- Page 4 4. Dial DIP switch on master Make sure master battery is dialed as below method. All the slaves DIP mode keep 0000. Must set DIP mode before starting the battery. If the battery is only one, make sure DIP mode is 0010. 5.
- Page 5 9. Establish a connection to the user interface of the inverter 1. Establishing a direct connection via WLAN. (1) SSID in WLAN: SMA[serial number] (e.g SMA0123456789). (2) Device-specific WLAN password: see WPA2-PSK on the type label of the product or the rear side of the manual included in delivery. (3) Standard access address for a direct connection via WLAN outside of a local network: http://smalogin.net...
- Page 6 10. Logging In the User Interface After a connection to the user interface of the inverter has been established, the login page opens. Log in as Installer for the First Time. The passwords for the user groups Installer is WPA2-PSK on the type label of the product. 11.
- Page 8 12. Battery and inverter are connected Now, we can see that communication between battery and inverter is success. 13. Power on the AC/Grid Next, press the start-stop button, you can start the system. Battery starts to charage.
- Page 9 14. You are ready to go Max Charging (Bulk) Voltage: 53.5V Absorption Voltage: 53V Float Voltage: 52.5V Shut Down (cut off) Voltage: 47V Shut Down (cut off) SOC: 20% Restart Voltage: 49V Max Charge Current: 25A*battery QTY Max Discharge Current: 25A*battery QTY...
- Page 10 15. Shut Down Lithium series 48V 2.4 kWh/ Lithium series 48V 3.6 kWh Paralelo 1. Remove all the load. 2. Disconnect Grid. 3. Turn off DC breaker between the battery and inverter. 4. Turn off the inverter power switch, shut down the inverter.
