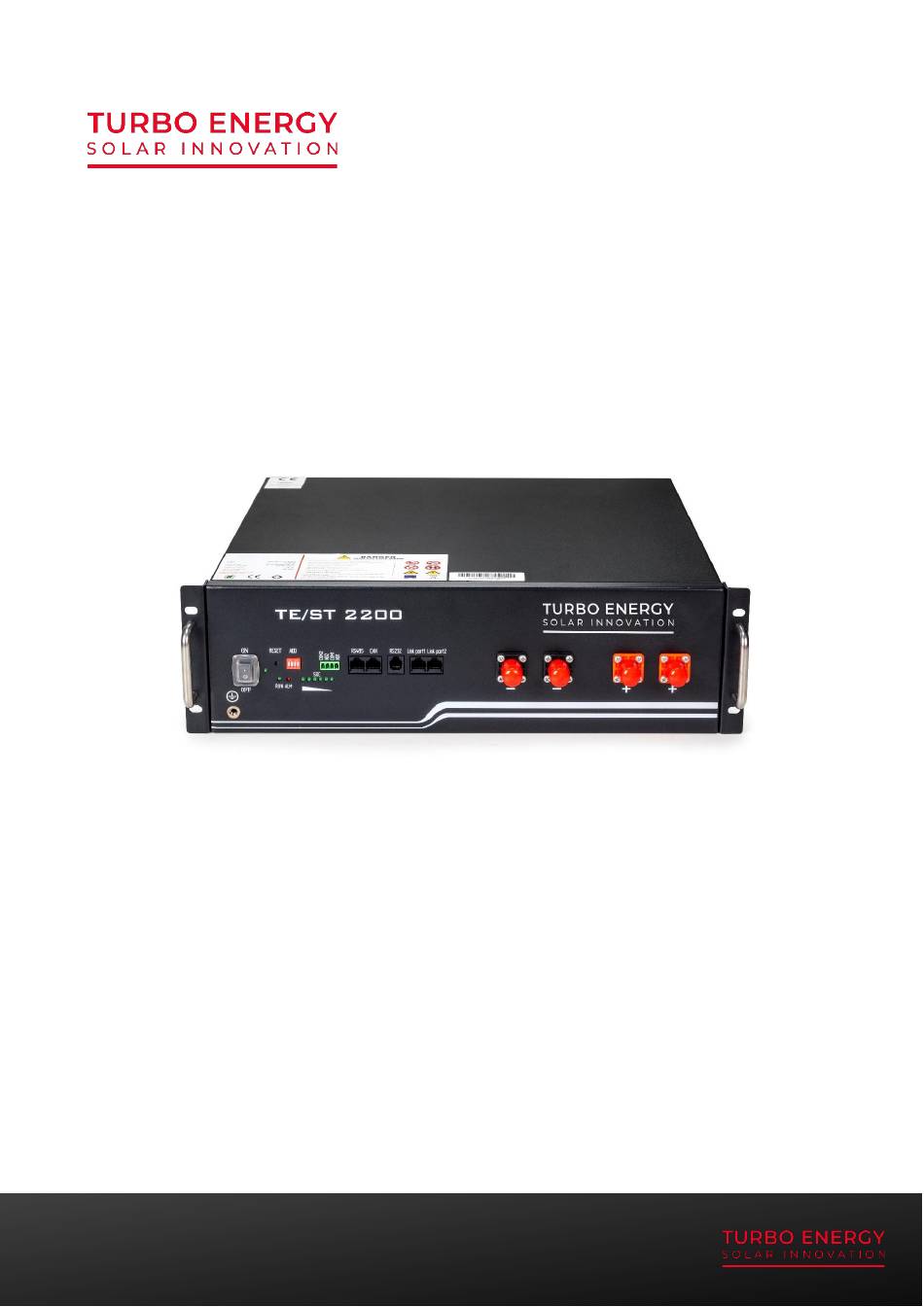

- Page 1 Instruction manual Lithium Series 24V 2.24 kWh Battery https://www.turbo-e.com/...
-
Page 2: Table Of Contents
Read this manual before installing the battery and follow the instructions carefully during the installation process. Content 1. Scope ........................3 2. Specifications ......................3 3. Battery Dimensions ....................4 4. Features ........................4 5. Operation ........................ 5 5.1. Battery front ...................... 5 5.3. -
Page 3: Scope
1. Scope This document describes the basic operation of the Turbo Energy brand lithium- ion rechargeable battery (Lithium Series 24V 2.24 kWh model). This manual contains all the necessary details for understanding the operation of the equipment and for its correct application. -
Page 4: Battery Dimensions
Depth W=400mm Height H=133mm (3U) 4. Features The Lithium Series 24V 2.24 kWh battery has the following features: Designed for use in photovoltaic applications. • Battery Management System (BMS): The BMS system built into the battery • that monitors its operation and does not allow it to work outside the bounds of the design regime (V, I). -
Page 5: Operation

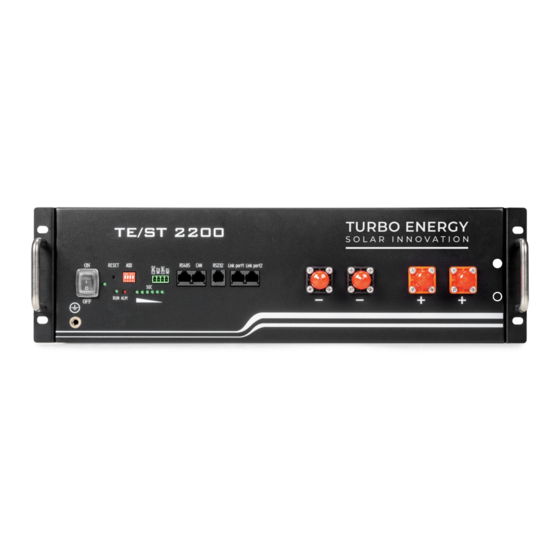

5. Operation 5.1. Battery front Power Soc (State Of Charge) Grounding ON/OFF Negative Positive Reset Alarms terminals terminals Button 5.3. Assembly and connection Batteries may be connected in parallel up to a maximum of 8. All batteries must be grounded. It is suggested to connect the installation ground to the rack at the same point as all battery lands. - Page 6 It is very important that in case of parallel connection between which are not new (e.g. we add a new battery to an existing system) we will previously perform a balance of voltages (charge) between them to avoid over currents that may damage the system.
-
Page 7: Appendix
• Connection between battery and inverter: Inverter connection Battery connection 25 mm power cable section. NOTE: Each power cord can carry a maximum of 100 A, so every two batteries would need to connect a new cable to the inverter. However, if the inverter is 5 kW only with one cable it would be sufficient to be at the limit of the maximum current recommended. -
Page 8: Safety Warnings
6.3. Environmental Protection Turbo Energy's batteries comply with EU ROHS regulations. 6.4. Contact details For any incident with the battery write, indicating your contact details, an email to the address: info@turbo-e.com...
