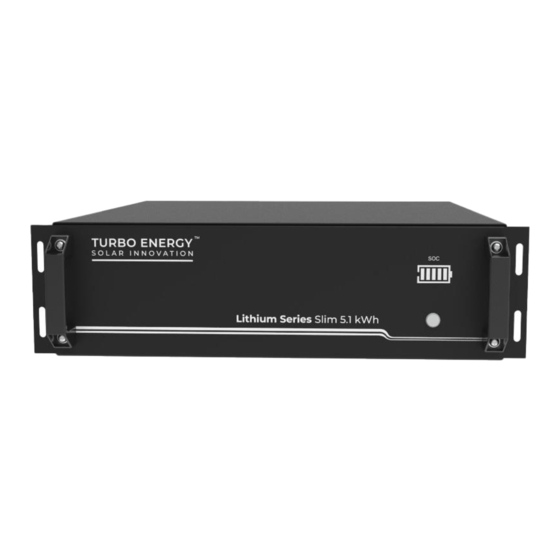

- Page 1 MANUAL Lithium-Series Slim48V 5.1kWh LONG LIFE LITHIUM-ION BATTERIES MAXIMUM CUSTOMER SATISFACTION YEARS WARRANTY PLUG & PLAY turbo-e.com...
-
Page 2: Table Of Contents
LITHIUM SERIES SLIM BATTERY 48V 5.1KWH Please read this manual before installing the battery and follow the instructions carefully during the installation process. Content 1. Scope ..................... 3 2. Specifications ..................3 3. battery dimensions ................4 4. Characteristics ..................4 5. -
Page 3: Scope
Scope This document describes the basic operation of the Turbo Energy™ Brand Lithium-Ion Rechargeable Battery (Lithium Series 48V 5.1 kWh Slim model). This manual includes all the necessary details for understanding the operation of the equipment and its correct operation. -
Page 4: Battery Dimensions
Battery dimensions 133mm Characteristics Battery Lithium Series48V 5.1 kWh Slimpresents the following characteristics: • Designed to be used in photovoltaic applications. • Battery Management System(BMS): BMS system incorporated in the battery that monitors its operation and does not allow it to work outside the limits of the design regime (V, I). - Page 5 CAN-2 Connection with Victron RS485-3 Connection with Growatt RS485-2 Connection with Voltronic and port for communicationbetween batteries. RS485-2 Connection with and port for communicationbetween batteries. handles List of items contained in the Lithium Series 48V 5.1 kWh Slim box: Item Article Description Battery...
-
Page 6: Connection
5.3. CONNECTION Batteries can be connected in parallel up to a maximum of 15. Wiring between batteries: • Up to 15 batteries can be connected with communication. • Batteries connected in parallel need to have the same SOC level. • The voltage difference of the batteries connected in parallel should be less than 0.5V. •... -
Page 7: Configuration Without Communications
NOTE: Each power cable can carry a maximum of 120A, so for every two batteries a new cable would need to be connected to the inverter. However, if the inverter is 5 kW with a cable it would be enough to be in the limit of the maximum recommended current. -
Page 8: Configuration With Communications
5.3.2. CONFIGURATION WITH COMMUNICATIONS Communication cable: It will be configured in one way or another depending on the inverter used. Cable configuration Turbo Energy™/Goodwe/Solis/Growatt hybrid inverter · You can use the normal parallel ethernet cable · Connect the cable to the CAN-1 port ·... - Page 9 DIP switch Each module has 4 DIP switches (Dual Inline Package) that will be configured differently depending on the number of batteries to be connected 1=ON 0=OFF They are configured following the binary code, starting with the master and continuing in descending order.
-
Page 10: On And Off
5.4. ON AND OFF To turn it on, press the power button for 2 seconds. The BMS will start up and the LCD screen will light up. To turn offbatteries, please press the power button for more than 3-6 seconds. sleep mode When RS485/CAN communication interrupts, no upload and download, no button operation, 5 minutes later, the system will enter sleep mode to reduce self-... - Page 11 5.5. FUSE CHANGE* On the side of the battery there is a fuse that can be accessed without waiving the equipment warranty. This fuse is protected by means of screws on the side. It can be replaced for the purpose of repairing the equipment in some cases. There are occasions when, due to an overcurrent, the fuse must be replaced with another of the same type.
-
Page 12: Led Display
5.6. Leds DISPLAY The LED light on the front of the battery will indicate the State of Charge (SOC) as shown in the following table: SOCLED charge status SOC < 5% 5% ≤ SOC ≤ 25% 25% ≤ SOC ≤ 55% 50% ≤... -
Page 13: Error Codes
5.8. CODES ERROR LED Alarm: Light: 2 blinks Green Light: Nu. of blinks = protection code Error code LED-display Description Solution error 01 Error ofhardware Wait for automatic recovery. In case the problem is not error 03 Error ofhardware resolved, call for repair error 05 Error ofhardware Close the switch afterturn off... -
Page 14: Safety Warnings
battery is half charged. wrap the batterywith non-conductive material to avoid direct metal contact. Store the battery in a cool, dry place. 9. Never expose the battery to fire or water. 6.2. SAFETY WARNINGS 1. Do not disassemble the batteries. The inside of the battery has a protection mechanism and a protection circuit to avoid danger. - Page 15 turbo-e.com...
