Turbo Energy 1600 Series Instruction Manual

Micro inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

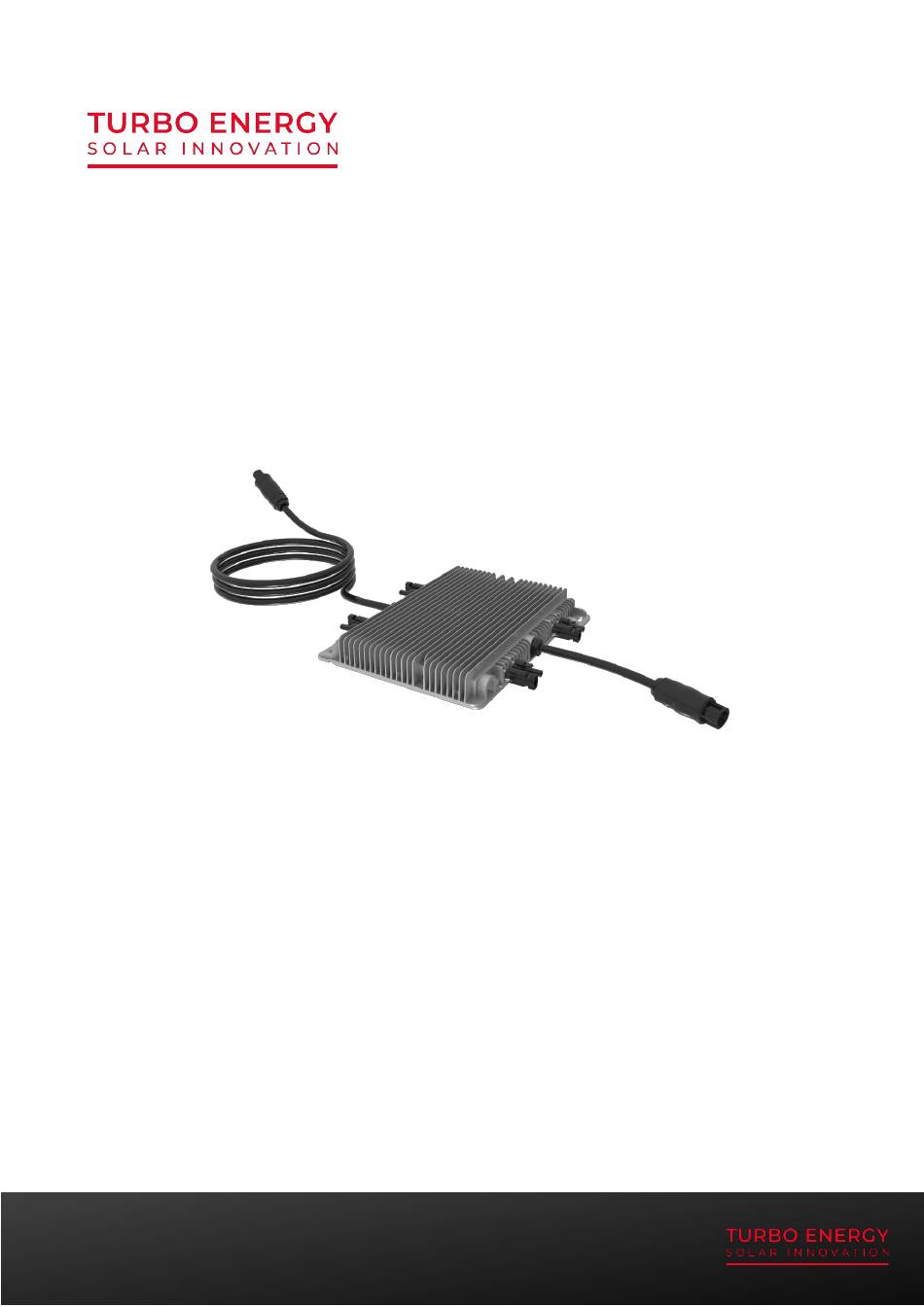

Instruction
manual
Micro Inverter Series 1600 and 2000
https://www.turbo-e.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turbo Energy 1600 Series

Summary of Contents for Turbo Energy 1600 Series

  • Page 1 Instruction manual Micro Inverter Series 1600 and 2000 https://www.turbo-e.com/...

  • Page 2: Table Of Contents

    Read this manual before installing the microinverter and follow the instructions carefully during the installation process. Content 1. SAFETY INSTRUCTIONS ..................... 3 2. PRODUCT INSTRUCTIONS ..................4 2.1. Product Overview .................... 4 2.2. Microinverter Features ..................5 3. INSTALLATION ......................5 3.1.

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS This manual contains important instructions to follow during installation and maintenance of the grid-connected photovoltaic system (Microinverter). To reduce the risk of electrical shock and ensure the safe installation and operation of the Microinverter, the following symbols appear throughout this document to indicate dangerous conditions and important safe instructions.

  • Page 4: Product Instructions

    2. PRODUCT INSTRUCTIONS The Microinverter is used in utility-interactive grid-tied applications, comprised of three key elements: Microinverter · Energy Collect Device (MIC) · Energy monitor and Analysis (EMA) web-based · 2.1. Product Overview MIS 1600/2000 Distribution box Microinverters maximize PV energy production Each PV module has individual Maximum Peak Power Tracking (MPPT) controls, which ensures that the maximum power is exported to the utility grid regardless of the performance of the other PV modules in the array.

  • Page 5: Microinverter Features

    the AC cable is connected to the chassis inside of the Microinverter, potentially eliminating the installation of grounding wire (check local regulation). The Energy Collect Device (MIC) is installed by simply plugging it into any wall outlet and providing an Ethernet connection to a broadband router or modem.

  • Page 6: Additional Components

    the system has been connected to the electrical grid. NOTE: Strongly recommend installing surge protection devices in the dedicated meter box. 3.1. Additional Components AC Male and Female Interconnection Connectors (sold separately) · Sealing end caps (sold separately) · 3.2. Required parts and tools In addition to your PV array and its associated hardware, you will need the following items: An AC connection junction box...
  • Page 7 Step 2 - Attach the Microinverters to the racking or the PV module frame a. Mark the location of the Microinverter on the rack, with respect to the PV module junction box or any other obstructions. b. Mount one Microinverter at each of these locations using hardware recommended by your module racking vendor.
  • Page 8 L(L1) N(L2) WARNING: Do NOT exceed maximum number of microinverters in an AC branch circuit, as displayed on the page 7 of this manual. Step 4 - Install an AC cable protective end cap at the end of AC cable Step 5 - Connect Microinverters to the PV Modules NOTE: When plugging in the DC cables, the Microinverter should immediately blink one quick red and three short green.

  • Page 9: Operation

    4. OPERATION To operate the microinverter PV system, follow the steps bellow: Turn ON the AC circuit breaker on each microinverter AC branch circuit. Turn ON the main utility-grid AC circuit breaker. Your system will start producing power after a one-minute waiting time. The units should start blinking red one minutes after turning on the AC circuit breaker.

  • Page 10: Throubleshooting A Non-Operating Microinverter

    GFDI Error A four times red LED indicates the microinverter has detected a ground fault detector interrupter (GFDI) error in the PV system. Unless the GFDI error has been cleared, the LED will remain four times blinking. Other Faults All other faults are reported to the MIC. Refer to the MIC Installation and Operation Manual for a list of additional faults and troubleshooting procedures.

  • Page 11: Replace A Failed Microinverter

    disconnect the DC wires while the microinverter is producing power. Re- connect the DC module connectors and watch for three short LED flashes. Check the AC branch circuit interconnection between all the microinverters. Verify each inverter is energized by the utility grid as described in the previous step.
  • Page 12 with the allowable input voltage range of the Microinverter. WARNING: The maximum open circuit voltage of the PV module must not exceed the specified maximum input voltage of the inverter. Model MIS 1600 MIS 2000 Input Data (DC) Recommended input power (STC) 210~600 W Maximum DC input voltage 60 V...
  • Page 13 Certificates EN50549,VDE0126,VDE4105,IEC62109,CE,INMETRO Warranty 10 years MIS 1600/2000 (three phase)
  • Page 14 MIS 1600/2000 (single phase)

  • Page 15: Monitoring System

    9. MONITORING SYSTEM This microinverter needs to connect MIC, built-in WIFI module, for remote monitoring. For the MIC setup, see the "MIC User Manual". Dealer account: https://pro.solarmanpv.com Main user account: https://home.solarmanpv.com/login Find it by searching "Solarman business" in App Store or Google Play, this app is for the dealer.

This manual is also suitable for:

2000 seriesMis 1600Mis 2000
