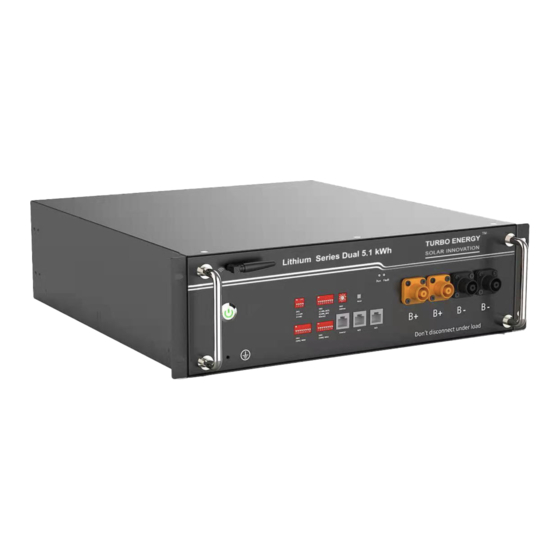

Turbo Energy Lithium Series Instruction Manual
Dual 48v 5.1kwh
Hide thumbs
Also See for Lithium Series:
- Instruction manual (18 pages) ,
- Manual (15 pages) ,
- Quick installation manual (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for Turbo Energy Lithium Series
Summary of Contents for Turbo Energy Lithium Series
- Page 1 INSTRUCTION MANUAL Lithium Series Dual 48V 5.1kWh LONG-LASTING LITHIUM-ION BATTERIES MAXIMUM CUSTOMER SATISFACTION YEARS PLUG & PLAY TURBO ENERGY WARRANTY PARALLEL/SERIES CONNECTION www.turbo-e.com...
-
Page 2: Table Of Contents
LITHIUM SERIES DUAL 48V 5.1KWH BATTERY Read this manual before installing the battery and follow the instructions carefully during the installation process. Contenido 1. Scope ..........................3 2. Specifications .......................3 3. Battery Dimensions ....................4 4. Features ......................... 4 5. Operation ........................5 5.1. -
Page 3: Scope
Scope This document describes the basic operation of the Turbo Energy brand lithium-ion rechargeable battery (Lithium Series Dual 48V 5.1 kWh model). This manual contains all the necessary details for understanding the operation of the equipment and for its correct application. -
Page 4: Battery Dimensions
3. Battery Dimensions 4. Features The Lithium Series Dual 48V 5.1 kWh battery has the following features: • Designed for use in photovoltaic applications. • Battery Management System (BMS): The BMS system built into the battery that monitors its operation and does not allow it to work outside the bounds of the design regime (V, I). -
Page 5: Operation
Switch for battery’s address SW4 & SW5 Communication interface for battery or master battery Reset Restablecer la configuración del módulo WIFI The standard packing list of Lithium Series Dual is as follows: Part Name Description Quantity Battery Lithium Series Dual... -
Page 6: Assembly And Connection
5.2. ASSEMBLY AND CONNECTION 5.2.1. PARALLEL CONNECTION Batteries may be connected in parallel up to a maximum of 8. All batteries must be grounded. It is suggested to connect the installation ground to the rack at the same point as all battery lands. Connection between batteries: •... - Page 7 NOTE: Each power cord can carry a maximum of 200 A, so every two batteries would need to connect a new cable to the inverter. However, if the inverter is 5 kW only with one cable it would be enough to be at the limit of the maximum current recommended.
-
Page 8: Serie Connection
5.2.2. SERIE CONNECTION Batteries may be connected in serie up to a maximum of 8. All batteries must be grounded. It is suggested to connect the installation ground to the rack at the same point as all battery lands. Connection between batteries: •... - Page 9 For the serie connection of the batteries, we need yo modify the battery cables first. These are designed so that the negative conector only fits the negative terminal, the same with the positive one. For the modification, we need to disassemble the head of the cable we want to interchange of pole, to later assemble the one we need to install.
-
Page 10: Configuration Without Communications
4. Withdraw head • We need to withdraw completely the head of the cable. Once done that, we will interchange it by the analogue cable 5. Final assemble • We preceed to assemble the heads of cables once we have interchanged the head of the cables, following the previous steps inversely. -
Page 11: Dip Configuration
SW4 and SW5 work to communicate with the inverter and depend on the communication cable and the inverter protocol. If using a pin-to-pin cable, the DIP configuration is as follows: Protocolo/ Inversor 1=ON Turbo Energy, 0=OFF Goodwe, Solis, Sofar, 2 3 4 Deye 1=ON... - Page 12 SW2 and SW3 are for communication between batteries. It depends on whether it is series or parallel connection, or if is master or slave. The switch configuration must be as follows: Connected Set of SW2 battery Group Address Set Series connect Parallel connect number Primary...
- Page 13 Connected Set of SW2 battery Group Address Set Series connect Parallel connect number Primary Sub1 Sub2 Sub3 Sub4 Primary Sub1 Sub2 Sub3 Sub4 Sub5 www.turbo-e.com...
- Page 14 Connected Set of SW2 battery Group Address Set Series connect Parallel connect number Primary Sub1 Sub2 Sub3 Sub4 Sub5 Sub6 www.turbo-e.com...
- Page 15 Connected Set of SW2 battery Group Address Set Series connect Parallel connect number Primary Sub1 Sub2 Sub3 Sub4 Sub5 Sub6 Sub7 Please make sure the SW2 DIP switch is selected correctly. if the battery is connected in parallel mode, but DIP8 is at ON position, it may occur a serious and dangerous fault.
-
Page 16: Faults And Troubleshooting
7. Faults and troubleshooting Each error is presented with a description. If the Fault light is on, check the error in the APP. If the battery cannot be seen on the app, please check the battery status first. If the battery status is OFF, turn on the battery and then check that you are connected to the Internet. -
Page 17: Warranty
8.3. WARRANTY Please refer to the Warranty Document for specific warranty terms. 8.4. SHIPPING During transportation, keep the battery from acutely vibration, impacting, solarization, drenching. 8.5. ALMACÉN Storage environment requirement: • 1 month: Under temperature of -20º C~ 45º C and relative humidity of 45~85%. •...
