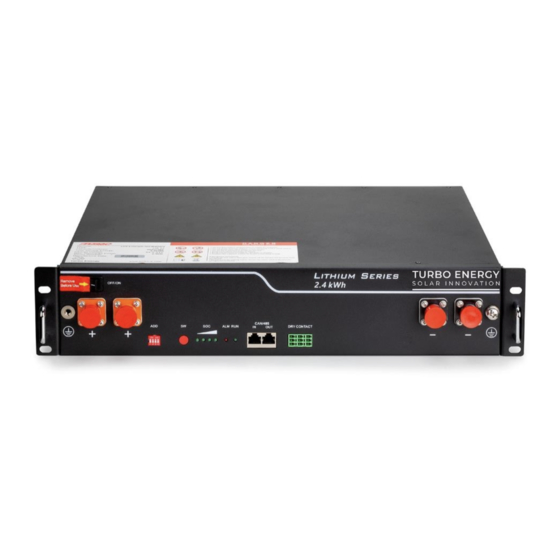

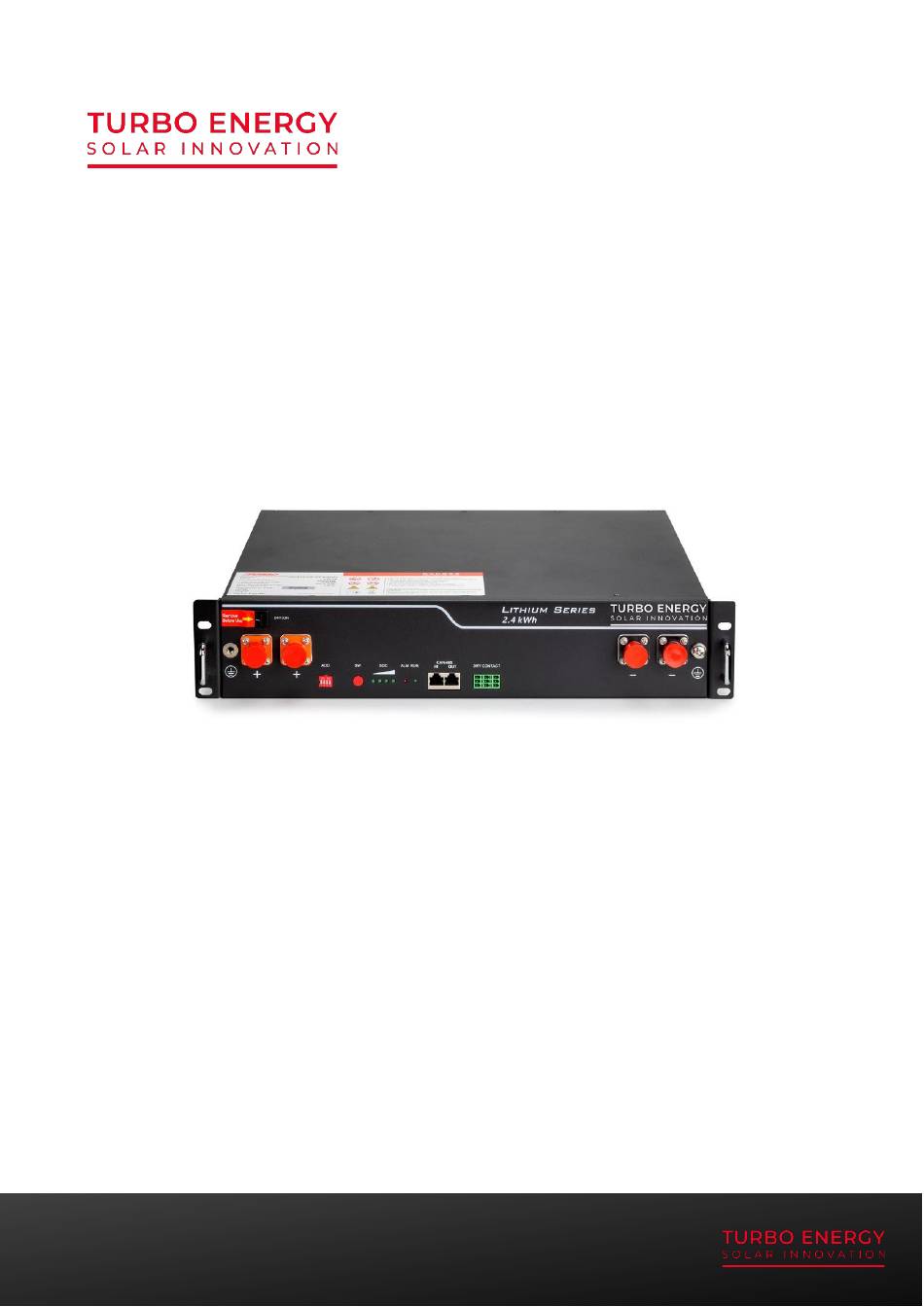

- Page 1 Instruction Manual Lithium Series 48V 2.4 kWh Battery https://www.turbo-e.com/...
-
Page 2: Table Of Contents
Read this manual before installing the battery and follow the instructions carefully during installation process. Content 1. Scope ........................3 2. Specifications ......................3 3. Features ........................4 4. Operation ........................ 4 4.1. Battery front ....................4 4.2. Battery Management System (BMS) .............. 6 4.2.1. -
Page 3: Scope
1. Scope This document describes the basic operation of the Turbo Energy brand lithium- ion rechargeable battery (Lithium Series 48V 2.4 kWh model). This manual contains all the necessary details for understanding the operation of the equipment and for its correct application. -
Page 4: Features
3. Features The Lithium Series 48V 2.4 kWh battery has the following features: Designed for use in photovoltaic applications. • Battery Management System (BMS): The BMS system built into the battery • that monitors its operation and does not allow it to work outside the bounds of the design regime (V, I). - Page 5 Item Name Definition The number of green lights on shows the remaining battery power. See table below for details. Red light flashing when an alarm occurs, red light always on during protection status. After the condition of trigger protection is released, it can be automatically closed.
-
Page 6: Battery Management System (Bms)
Battery LED1 LED2 LED3 LED4 Status 5%＜SOC＜25% ● ● 0%＜SOC≤5% ● Flashing ● SOC=0 Flashing/● Flashing 4.2. Battery Management System (BMS) 4.2.1. Voltage Protection Low Voltage Protection in Discharging： When any battery cell voltage or total voltage is lower than the protection value during discharging, the over-discharging mode is activated, and the battery buzzer makes an alarm sound. -
Page 7: Temperature Protection
4.2.3. Temperature Protection Low/Over temperature protection in charging： When battery’s temperature is beyond range of -5℃~+55℃during charging, temperature protection is activated, device stops charging. The protection is over when temperature back to rated working range. Low/Over temperature protection in discharging： When battery’s temperature is beyond range of -20℃~+55℃... - Page 8 Inverter: VOLTRONIC Axpert-VMIII/Axpert King, Growatt SPH/SPA 1=ON 0=OFF Master Slaves Inverter: GROWATT SPH/SPA Master Slaves Inverter: GROWATT SPF HVM Master Slaves 3- If the energy storage system has only one Lithium Series 48V 2.4 kWh, it is the host itself.
-
Page 9: Assembly And Connection
4.4. Assembly and connection 4.4.1. Components list Item Specification Quantity Figure 48V/50Ah Battery-B4850 480×360×90mm Power cable- /25mm /L2050m positive Black Power cable- /25mm /L2050m negative Parallel cable- /25mm /L215mm positive Parallel Black cable- /25mm /L215mm negative Communicati Black on parallel /L250mm/Double cable RJ45 plug... -
Page 10: Mechanical Instalation
User Manual manual 4.4.2. Mechanical instalation Installation method 1: With rack installation 1. Place the Lithium Series 48V 2.4 kWh unit on the rack bracket as shown in the figure and push the device into the cabin at the installation position. (The cabinet... -
Page 11: Electrical Installation
Installation method 2: With simple bracket installation 1. Place the Lithium Series 48V 2.4 kWh and brackets as shown in the figure and insert it into the brackets. Use 4 screws to fix the module on the front bracket. 2. Install... - Page 12 Voltage: U>60V ���������������� ���������� Current: I = The circuit breaker is installed between the battery module and the inverter, as shown in next figure: Inverter Circuit breaker Negative Communication cable to power cable Inverter Master battery Positive power cable Negative parallel Positive cable...
-
Page 13: Battery Parameter Settings On The Inverter
After the whole system connection, set the master DIP mode according to the inverter model firstly, then start the battery. The BAT-INV comms cable is from inverter comm port to master CAN IN port, BAT- BAT cable is from master CAN OUT to slave1 CAN IN, slave1 CAN OUT to slave2 CAN IN…... - Page 14 Caution After pressing the power button, if the battery status indicator on the front panel continues to be red, please refer to the "5.2 Alarm description and processing ". If the failure cannot be eliminated, please contact the dealer timely. 3.
-
Page 15: Alarm Description And Processing
a) The battery's long-term continuous charging current should be ≤0.5C b) If the battery capacity is empty, please Charging charge it within 18 hours after the battery is empty. Equipment c) The long-term continuous discharge current of the battery should be ≤0.5C d) The recommend maximum... -
Page 16: Common Faults Analysis And Treatment
5.3. Common faults analysis and treatment Fault Reason analysis Solution phenomenon indicator does Check the total Total voltage lower than 35V respond after the voltage power on Read Battery data status is abnormal. battery No DC output Battery gets into over-discharged information on protection the monitor. -
Page 17: Appendix
6. Appendix 6.1. Safety instructions 1. Please read the battery instructions before use. 2. Keep the battery away from high voltage and out of reach of children. 3. In operation, the battery should be kept in the set temperature ranges (between -20ºC and 50ºC) and a humidity less than 85%. -
Page 18: Environmental Protection
6.3. Environmental protection Turbo Energy's batteries comply with EU ROHS regulations. 6.4. Contact details For any incident with the battery write, indicating your contact details, an email to the address: info@turbo-e.com...
