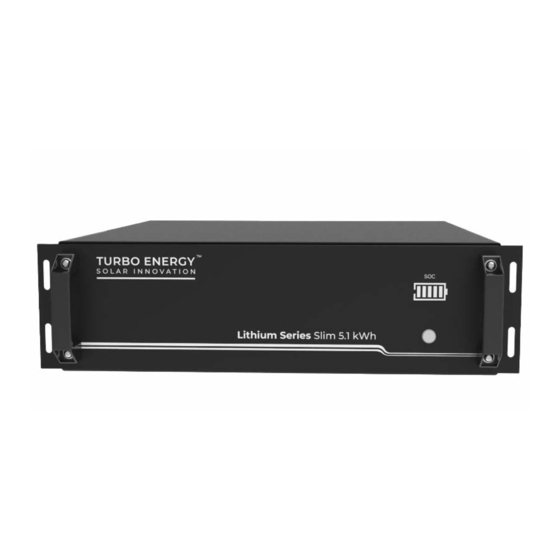

- Page 1 INSTRUCTION MANUAL Lithium Series Slim 48V 5.1kWh LONG-LASTING LITHIUM-ION BATTERIES YEARS MAXIMUM CUSTOMER SATISFACTION WARRANTY PLUG & PLAY www.turbo-e.com...
-
Page 2: Table Of Contents
LITHIUM SERIES SLIM 48V 5,1KWH BATTERY Read this manual before installing the battery and follow the instructions carefully during the installation process. Content 1. Scope ..........................3 2. Specifications .......................3 3. Battery Dimensions ....................4 4. Features ......................... 4 5. Operation ........................4 5.1. -
Page 3: Scope
Scope This document describes the basic operation of the Turbo Energy brand lithium-ion rechargeable battery (Lithium Series 48V 5.1 kWh Slim model). This manual contains all the necessary details for understanding the operation of the equipment and for its correct application. -
Page 4: Battery Dimensions
3. Battery Dimensions 133 mm 4. Features The Lithium Series 48V 5.1 kWh Slim battery has the following features: • Designed for use in photovoltaic applications. • Battery Management System (BMS): The BMS system built into the battery that monitors its operation and does not allow it to work outside the bounds of the design regime (V, I). -
Page 5: Battery Back
RS485-3 support Growatt inverter. RS485-2 support Voltronic inverter and inner parallel communication between batteries. RS485-2 support Voltronic inverter and inner parallel communication between batteries. Handles The standard packing list of Lithium Series Slim is as follows: Item Part name Description Quantity Batery Lithium Series Slim RS485 parallel netting cable / 0.2m... -
Page 6: Assembly And Connection
5.3. ASSEMBLY AND CONNECTION Batteries may be connected in parallel up to a maximum of 15. All batteries must be grounded. It is suggested to connect the installation ground to the rack at the same point as all battery lands. Connection between batteries: •... -
Page 7: Configuration Without Communications
Connection between battery and inverter: Inverter connection Battery connection 25 mm power cable section NOTE: Each power cord can carry a maximum of 120 A, so every two batteries would need to connect a new cable to the inverter. However, if the inverter is 5 kW only with one cable it would be enough to be at the limit of the maximum current recommended. -
Page 8: Configuration With Communications
5.3.2. CONFIGURATION WITH COMMUNICATIONS Communication cable: It will be configured one way or another depending on the inverter used. Cable configuration Hybrid Inverter Turbo Energy™/Goodwe/ Solis /Growatt • It can be used a Straight-through cable • Connect the cable to the CAN-2 port •... -
Page 9: On And Off
DIP switch Each module has 4 DIP switches (Dual Inline Package) that will be configured differently according to the number of batteries will be connected. Address Dial switch position Explain Pack 1 / Master 1=ON 0=OFF 2 3 4 Pack 2 1=ON 0=OFF 2 3 4... -
Page 10: Led Display
When the battery is in the power down mode and meets any of following conditions, the battery will quit power down mode and wake up. • Charging current is detected (charging voltage should be higher than 51.2V); • Press the “ON/OFF” button for 2 seconds and release it. 5.5. -
Page 11: Error Codes
5.7. ERROR CODES LED Alarm: light: 2 flickers Green light: Nº flickers = error code Error code Display LED Description Solution Error 01 Hardware error Wait for automated recovery. Error 03 Hardware error If the problem is not resolved, call for repair Error 05 Hardware error Close the circuit breaker after... -
Page 12: Safety Warnings
6.2. SAFETY WARNINGS 1. Do not disassemble the batteries. The inside of the battery has a protective mechanism and a protective circuit to avoid danger. Improper disassembly will damage the protection function permanently, leaving the battery without safety conditions. 2. Never short-circuit the poles of the Battery. Avoid contact of positive and negative poles with metals. - Page 13 www.turbo-e.com...
