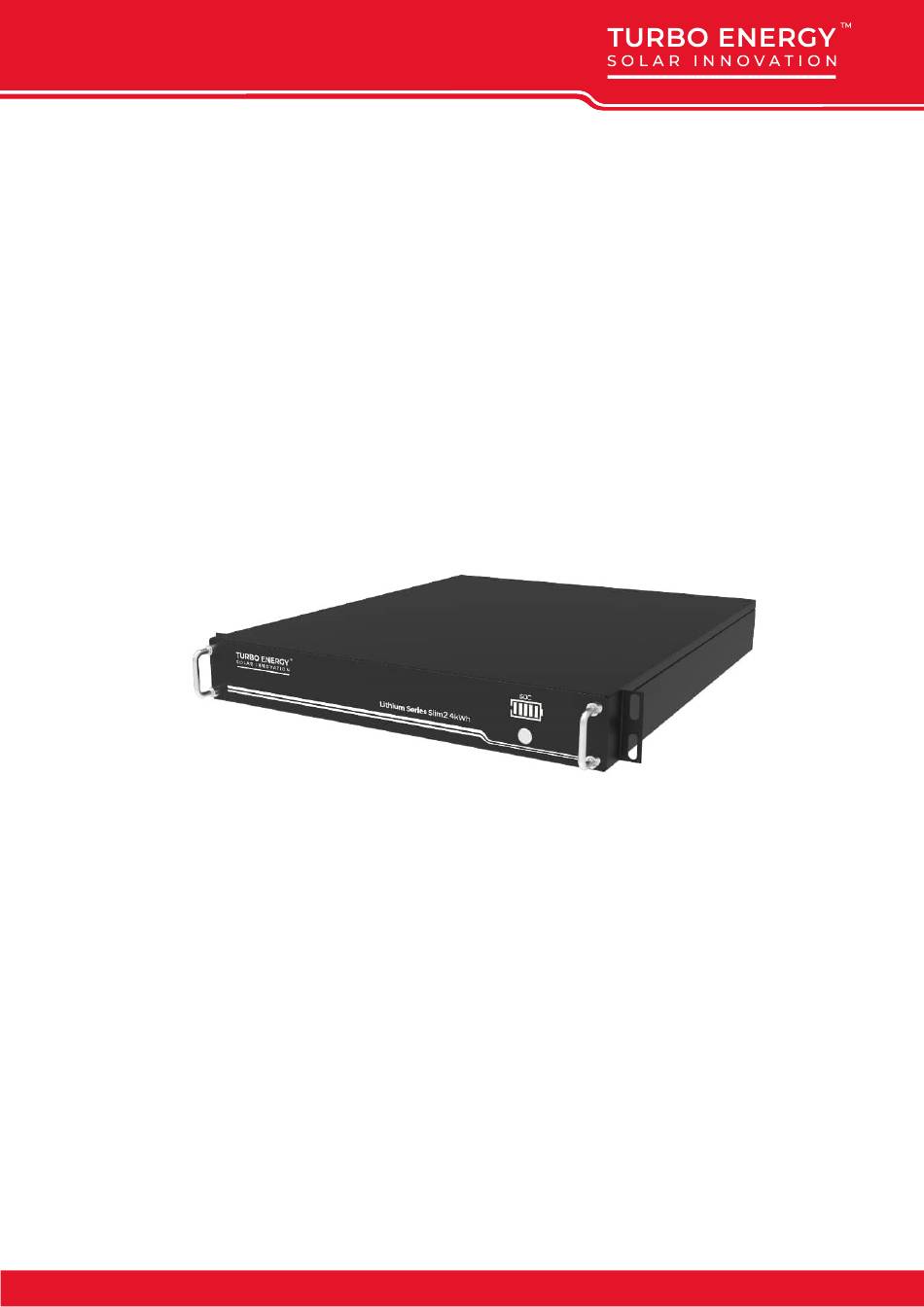

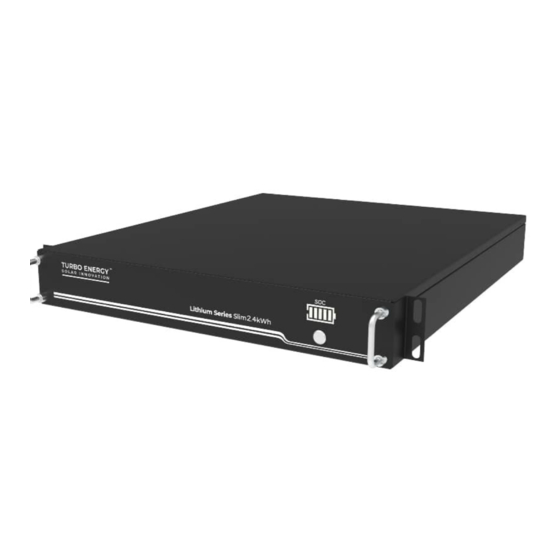

- Page 1 Instruction manual Lithium Series Slim 48V 2.4 kWh www.turbo-e.com...
-
Page 2: Table Of Contents
Read this manual before installing the battery and follow the instructions carefully during the installation process. Content 1. Scope ......................................3 2. Specifications ................................... 3 3. Battery Dimensions ................................4 4. Features ...................................... 4 5. Operation ....................................5 5.1. Battery front ..................................5 5.2. -
Page 3: Scope
This document describes the basic operation of the Turbo Energy brand lithium-ion rechargeable battery (Lithium Series Slim 48V 2.4 kWh model). This manual contains all the necessary details for understanding the operation of the equipment and for its correct application 2. -
Page 4: Battery Dimensions
3. Battery Dimensions 4. Features The Lithium Series Slim 48V 2.4 kWh battery has the following features: • Designed for use in photovoltaic applications. • Battery Management System (BMS): The BMS system built into the battery that monitors its operation and does not allow it to work outside the bounds of the design regime (V, I). -
Page 5: Operation
5. Operation 5.1. Battery front 5.2. Battery pack ①: Positive and negative connector * 2 - for battery parallel connection and power output, model: Anderson 120A ②: RS485-1 support the BMS monitor or customer's EMS device. ③: CAN-1 support Turbo, Goodwe, Solis, Sermatec, Sofar, Ingeteam lnverter. ④: CAN-2 support Victron inverter. -
Page 6: Assembly And Connection
⑧ Handles The standard packing list of Lithium Series Slim is as follows: Item Part Name Description Unit Quantity Battery Lithium Series Slim User Manual Lithium Series Slim User Manual RS485 parallel netting cable/0.2m CANBUS communication cable with turbo inverter /2m... - Page 7 • Connection between battery and inverter: Inverter connection Battery connection 25 mm2 power cable section. NOTE: Each power cord can carry a maximum of 120 A, so every two batteries would need to connect a new cable to the inverter. However, if the inverter is 5 kW only with one cable it would be enough to be at the limit of the maximum current recommended www.turbo-e.com...
-
Page 8: Configuration Without Communications
5.3.2. Configuration with communications Communication cable: It will be configured one way or another depending on the inverter used. Cable configuration Hybrid Inverter Turbo Energy/ Goodwe/Solis/Growatt · It can be used a Straight-through cable ·... - Page 9 Cable configuration Victron Connect the cable to the CAN-2 port CAN H CAN L CAN H CAN L Inverter Battery Cable configuration Sofar CAN H Connect the cable to the CAN L CAN-1 port CAN H CAN L Inverter Battery Cable configuration Voltronic Connect the cable to the RS485A...
- Page 10 DIP switch Each module has 4 DIP switches (Dual Inline Package) that will be configured differently according to the number of batteries will be connected 1=ON 0=OFF Address Dial switch position Explain Pack1/Master Pack2 Pack3 Pack4 Pack5 Pack6 Pack7 Pack8 Pack9 Pack10 Pack11...
-
Page 11: On And Off
5.4. On and Off For the connection between batteries, we need to follow the next connection procedure: 1. With all devices disconnected, we proceed to the connection of the batteries, cables between each other. 2. We connect the master battery to the inverter, both energy cable and communication cable. 3. -
Page 12: Protection Codes
5.6. Protection codes LED Alarm light: 1 flicker Green light: N. º flickers = protection code This error only operates in case that not all leds are iluminated. If all leds are on, means 5.7. Error codes 100% charge. If not all, means cell overvoltage LED Alarm Red light: 2 flickers... -
Page 13: Appendix
If the battery constantly runs for 30 days and its SOC has not been corrected, the discharge function will not be available until the battery is fully charged at least once and the SOC is corrected. If we find that the battery charges and discharges but the SOC doesn’t, it might be a signal that the battery needs to be updated. -
Page 14: Safety Warnings
8. When not in use for a long time, store the battery intact and let the battery be half charged. Wrap the battery with non-conductive material to avoid direct contact of the metal. Store the battery in a cool, dry place. 9.
