Summary of Contents for Turbo Energy Lithium Series

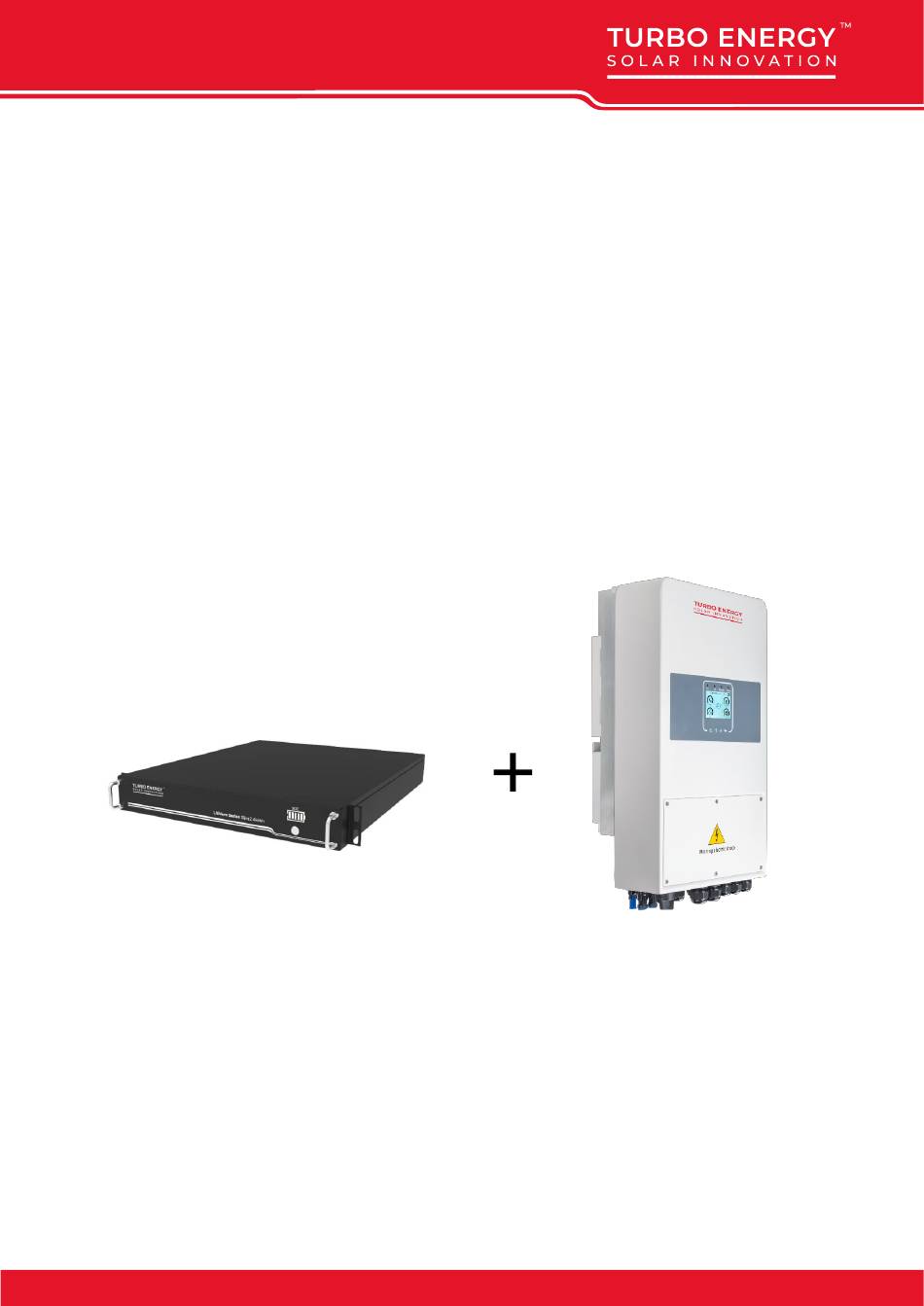

  • Page 1 Quick Installation Guide Battery Lithium Series Slim 48V 2.4 kWh + Inverter Turbo www.turbo-e.com...
  • Page 2 1. Inverter configuration 1.1. Connect Inverter to Wifi To be able to upload the SunBox to the cloud and be able to see the monitoring of the system, it is essential to connect the equipment to the internet. To do this, the following steps must be followed: Step 0: Locate the serial number of the logger.
  • Page 3 Type in the address bar of the web browser the text "10.10.100.254" A login pop-up window will appear asking for username and password. The default user is "admin" and the password is "admin" and pulsar the button "Login". Once you have accessed the web portal of the registrar you will be able to see the "Status" page with general information of the registrar.
  • Page 4 Step 3.2: Enter the password of the Wi-Fi of the plant: in the field "Password" enter the password of the Wi-Fi of your plant and press the button "Next·" Step 3.3: In this step it is NOT necessary to select any option and then press the "Next" button. Used to configure the security of the connection a la Wi-Fi.
  • Page 5 If the restart occurs successfully a message will appear indicating that it has been done successfully, if it does not appear then refresh the browser page: Step 4: Check the connection of the REGISTRAR to the wi-Fi of the plant. After restarting the web page log back in to the "Status"...
  • Page 6 Once we have verified that the registrar is connected to the Wi-Fi of the plant and (which must have internet access) it is possible to add the plant to the cloud platform. 1.2. Inverter settings When programming the inverter, you can choose between several configuration options: Selling first: the priority for excess energy is to deliver it to the grid.
  • Page 7 2. Battery configuration Each module has 4 DIP (Dual Inline Package) switches that will be configured differently depending on the number of batteries to be connected. 1=ON 0=OFF They are configured according to the binary code, starting with the master. Address Dial switch position Explain Dips...
  • Page 8 3. WIRING Configuration The cable needed to make the connection is the RJ45. It is a special cable that is composed of 8 smaller cables each with a different color configuration. It’s needed to use a standard pin-to-pin cable with RJ45 connector. For the connection between the inverter and battery, the RJ45 cable will be connected to the CAN-1 port in...
