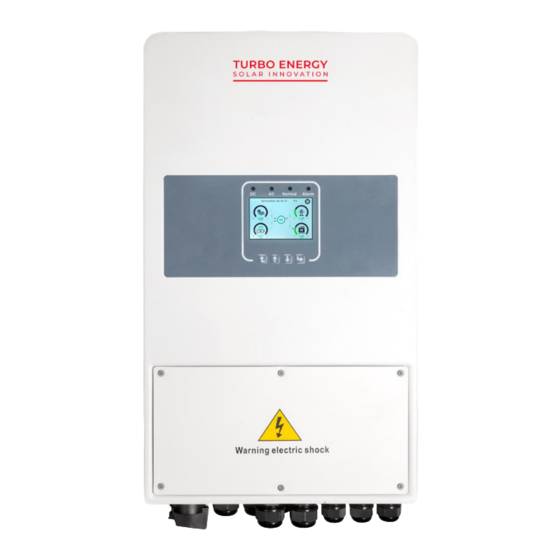

Turbo Energy HYBRID 48V 5.0 Series Instruction Manual
  1. Manuals
  2. Brands
  3. Turbo Energy Manuals
  4. Inverter
  5. HYBRID 48V 5.0 Series
  6. Instruction manual

Turbo Energy HYBRID 48V 5.0 Series Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction
manual
Hybrid Series 48V 5.0
(HIS 5000/48)
https://www.turbo-e.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYBRID 48V 5.0 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turbo Energy HYBRID 48V 5.0 Series

Summary of Contents for Turbo Energy HYBRID 48V 5.0 Series

  • Page 1 Instruction manual Hybrid Series 48V 5.0 (HIS 5000/48) https://www.turbo-e.com/...

  • Page 2: Table Of Contents

    Read this manual before installing the inverter and follow the instructions carefully during the installation process. Content 1. SAFETY INSTRUCTIONS ......................4 2. PRODUCT INSTRUCTIONS ......................4 2.1. Product Overview ....................... 5 2.2. Dimensions ......................... 6 2.3. Inverter Features ........................ 6 3.
  • Page 3 5.7. System Work Mode Setup Menu ..................24 5.8. Grid Setup Menu ......................24 5.9. GEN PORT use Setup Menu ....................25 5.10. Advanced Function Setup Menu ..................26 5.11. Device Info Setup Menu ....................26 6. MODES ............................ 27 7.

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS • This chapter contains important safety and operating instructions. Read and keep this manual for future reference. • Before using the inverter, please read the instructions and warning signs of the battery and corresponding sections in the instruction manual. •...

  • Page 5: Product Overview

    2.1. Product Overview 1. Inverter operation LED 11. Gen Port indicators 12. Back Up Port 2. LCD Display 13. Grid 3. Function Buttons 14. Power On/Off button 4. Battery input connectors 15. DC Switch 5. BMS 485 Port 16. 2 PV inputs (2 MPPTs) 6.

  • Page 6: Dimensions

    2.2. Dimensions 2.3. Inverter Features • 220V single-phase pure sinusoidal wave inverter. • Self-consumption and feed-in to grid. • Programmable operation modes. • Configurable battery charging current/voltage based on applications by LCD setting. • Configurable AC/Solar/Generator Charger priority by LCD setting. •...

  • Page 7: Installation

    3. INSTALLATION 3.1. Component list Nº Description Hibrid Inventer HIS Series 2 Stainless steel mounting screws M6*12 Stainless steel expansion bolts M8*80 User Manual WiFi Plug Current transformer (Optional) Battery sensor L-type Hexagon wrench Wall mounting bracket...

  • Page 8: Assembly Instructions

    3.2. Assembly instructions Installation precaution. This Hybrid inverter is designed for outdoor use (IP65). Please make sure the installation site meets below conditions: • Not in direct sunlight. • Not in areas where highly flammable materials are stored. • Not in potential explosive areas. •...
  • Page 9 For proper air circulation to dissipate heat, allow a clearance of approx. 50cm to the side and approx. 50cm above and below the unit and 100cm to the front. Inverter should be vertically installed, as shown in the installation procedure below: 1.

  • Page 10: Battery Connection

    3.3. Battery connection For safe operation and compliance, a separate DC over-current protector or disconnect device is required between the battery and the inverter. In some applications, switching devices may not be required but over-current protectors are still required. Refer to the typical amperage in the table below for the required fuse or circuit breaker size.

  • Page 11: Multifunction Port Connection

    3.4. Multifunction port connection...

  • Page 12: Temperature Sensor Connection

    3.4.1. Temperature sensor connection 3.4.2. CT connection...

  • Page 13: Ac Input/Output Connection

    3.5. AC Input/Output connection - Before connecting to AC input power source, please install a separate AC breaker between inverter and AC input power source. This will ensure the inverter can be securely disconnected during maintenance and fully protected from over current of AC input.

  • Page 14: Pv Module Selection

    system safety and efficient operation to use appropriate cable for PV module connection. To reduce risk of injury, please use the proper recommended cable size shown below. Cable (mm Model Cable size 12AWG 3.6.1. PV Module selection When selecting proper PV modules, please be sure to consider below parameters: Open circuit Voltage (Voc) of PV modules do not exceed max.

  • Page 15: Wi-Fi Connection

    3.8. Wi-Fi connection For the configuration of Wi-Fi Plug, please refer to illustrations of the Wi-Fi Plug. 3.9. Inverter global connection Arrow pointing to inverter...

  • Page 16: Single Phase Parallel Connection Diagram

    3.10. Single phase parallel connection diagram DC Breaker (150 A) AC Grid Port Breaker (40 A) AC Back Up Breaker (40 A) AC Breaker (depends on house loads) Arrow pointing to inverter...

  • Page 17: Three Phase Parallel Inverter

    3.11. Three phase parallel Inverter DC Breaker (150 A) AC Grid Port Breaker (40 A) AC Back Up Breaker (40 A) AC Breaker (depends on house loads) Arrow pointing to inverter 4. OPERATION 4.1. POWER ON/OFF Once the unit has been properly installed and the batteries are well connected, press On/Off button (located on the lower left side of the case) to turn on the unit.

  • Page 18: Operation And Display Panel

    4.2. Operation and display panel The operation and display panel shown below is located on the front panel of the inverter. It includes four indicators, four function keys and one LCD display, indicating the operating status and input/output power information. LED Indicator Messages Green led, fixed light...

  • Page 19: Lcd Operation Flow Chart

    1. The icon in the center of the home screen indicates that the system is operating normally. If it turns into “comm./F01~F64”, it means the inverter has communication error or other errors. The error message will display under this icon (F01-F64 errors, detail error info can be viewed in the System Alarms menu).

  • Page 20: Information From Main Menu

    5.2. Information from Main Menu...

  • Page 21: Curve Page - Solar, Load And Grid

    5.3. Curve page - Solar, Load and Grid Solar power curve for daily, monthly, yearly and total can be roughly checked on the LCD. For more accuracy in power generation, please check on the monitoring system. Click the up and down arrow to check power curve of different period.

  • Page 22: System Setup Menu

    5.4. System Setup Menu 5.5. Basic Setup Menu 5.6. Battery Setup Menu...

  • Page 24: System Work Mode Setup Menu

    5.7. System Work Mode Setup Menu Enable: Habilita el sistema de trabajo por periodos horarios. Enable: enables the system to work for time periods GPS: Grid Peak Shaving. Establece el límite de potencia a tomar de GPS: Grid Peak Shaving. Sets the power limit to be taken Por periodo horario from the grid per period.

  • Page 25: Gen Port Use Setup Menu

    5.9. GEN PORT use Setup Menu...

  • Page 26: Advanced Function Setup Menu

    5.10. Advanced Function Setup Menu Parallel inverter connection (review section 3.10 y 3.11). 5.11. Device Info Setup Menu...

  • Page 27: Modes

    6. MODES Mode I: Basic Mode II: With Microturbine Mode III: With Generator...
  • Page 28 Mode IV: With Smart Load Mode V: With On-Grid Inverter The 1st priority power of the system is always the PV power, then 2nd and 3rd priority power will be the battery bank or grid according to the settings. The last power backup will be the Generator if it is available.

  • Page 29: Fault Information And Processing

    7. FAULT INFORMATION AND PROCESSING The energy storage inverter is designed according to the grid-connected operation standard and meets the safety requirements and electromagnetic compatibility requirements. Before leaving the factory, the inverter undergoes several rigorous tests to ensure that the inverter can operate reliably. If any of the fault messages listed in the following table appear on your inverter and the fault has not been removed after restarting, please contact your local dealer or service center.

  • Page 31: Limitation Of Liability

    Information. Any replacement or repair of the product will cover the remaining warranty period of the product. Factory warranty does not include damage due to the following reasons: • Damage during transportation of equipment. • Damage caused by incorrect installation or commissioning. •...

  • Page 32: Datasheet

    9. DATASHEET Technical Data HYBRID SERIES 48V 5.0 Battery Input Data Battery Type Plomo-ácido o iones de litio Battery Voltage Range (V) 40V-60V charge (A) 120A discharge (A) 120A Charging Curve 3 stages/equalization External Temperature Sensor Optional Self-adaption to BMS Charging Strategy for Li-Ion Battery DC Input Data 6500W...
  • Page 33 Residual Current Monitoring Unit Integrated Output Over Current Protection Integrated Output Short circuit Protection Integrated Output Over Voltage Protection Integrated Certifications VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC 62116, IEC Grid Regulation 61727 Safety Regulation IEC62109-1, IEC62109-2 EN61000-6-1, EN61000-6-3 General Data Operating Temperature Range (ºC) -25 a 60 ºC, >45 ºC Derating...
