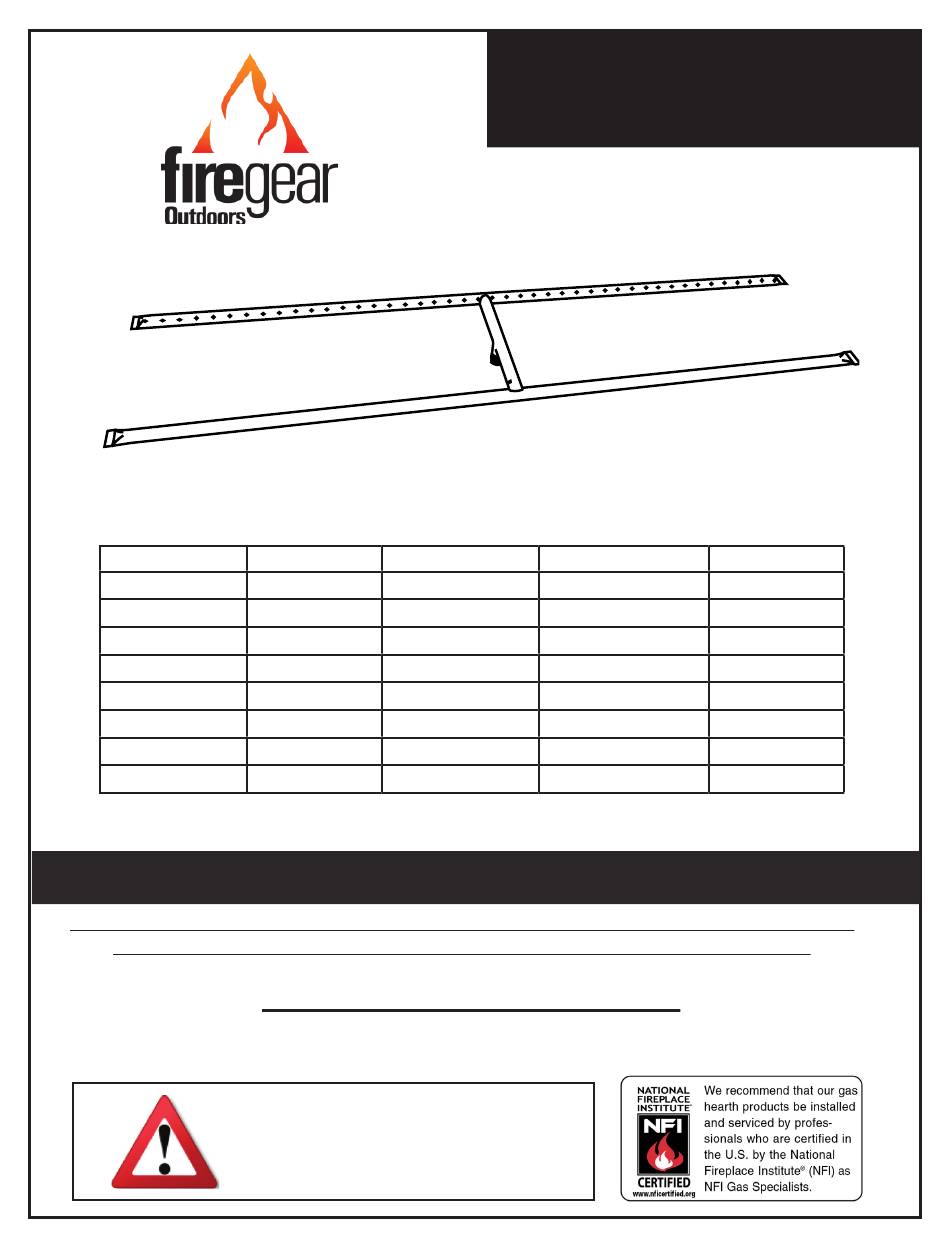

Outdoor Fire Pit H-Burners & Kits
H-Burner Only
FG-H-2110SS
FG-H-2710SS 27" H-Burner FG-H-2710SSK
FG-H-3310SS 33" H-Burner FG-H-3310SSK
FG-H-4510SS 45" H-Burner FG-H-4510SSK
FG-H-5710SS 57" H-Burner FG-H-5710SSK
FG-H-6910SS 69" H-Burner FG-H-6910SSK
FG-H-8110SS
FG-H-9310-SS 93" H-Burner FG-H-9310SSK
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These fire pit burners are manufactured from the factory for Natural gas only. If you intend using LP gas then
you must purchase a LP conversion kit. See Table of Contents for LP converstion kit information.
Fire pit burners require a minimum 18-square inches (per side) of cross ventilation
in an enclosure. Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
Description
H-Burner Kit
21" H-Burner FG-H-2110SSK
81" H-Burner FG-H-8110SSK
INSTALLATION PRECAUTION:
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Description
21" H-Burner Kit
27" H-Burner Kit
33" H-Burner Kit
45" H-Burner Kit
57" H-Burner Kit
69" H-Burner Kit
81" H-Burner Kit
93" H-Burner Kit
PN#90119
Input Rating
75,000 Btu's
100,000 Btu's
125,000 Btu's
150,000 Btu's
175,000 Btu's
200,000 Btu's
225,000 Btu's
250,000 Btu's
REV. C Page 1
Advertisement
Table of Contents
Related Manuals for Firegear FG-H-2110SS
Summary of Contents for Firegear FG-H-2110SS
- Page 1 MODEL: SERIAL #: Outdoor Fire Pit H-Burners & Kits H-Burner Only Description H-Burner Kit Description Input Rating FG-H-2110SS 21” H-Burner FG-H-2110SSK 21” H-Burner Kit 75,000 Btu’s FG-H-2710SS 27” H-Burner FG-H-2710SSK 27” H-Burner Kit 100,000 Btu’s FG-H-3310SS 33” H-Burner FG-H-3310SSK 33” H-Burner Kit 125,000 Btu’s...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product can expose you to Chromium, which is known to the state of California to cause cancer and birth defects or other reproductive harm. (For more information, go to www.p65warnings.ca.gov) TABLE OF CONTENTS Specifications Preparation for Non-Combustible Structure High Elevation Cross Ventilation Requirements Pipe Sizing Chart... -
Page 4: Specifications
Table 1 Suggested pan sizes and clearance specifications Description: H-burners are provided with a burner and Natural gas (NG) orifice only (i.e. FG-H-2110SS) and H-burner Kits are provided with H-burner, Natural gas (NG) orifice, key valve assembly and flex line (i.e. FG-H-2110SSK). -
Page 5: Preparation For Non-Combustible Structure
2- 1” x 9” Slots Per Side or to a smaller size. Input should be reduced 4% for each 1000 feet 2- Firegear 6 x12 vents beyond the 4500 feet above sea level. Check with your local gas utility for assistance in determining the proper orifice in your Fire Pit location. -
Page 6: Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 7: Installation Into An Approved Enclosure
9. These products are designed for outdoor use only. Not approved for any indoor use or any enclosed space. 10. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube, so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”... -
Page 8: H-Burner Assembly
H-BURNER ASSEMBLY CAUTION: Do not assemble the OAS and U3-8D-S until you are ready to install the H-Burner into the burner pan. The OAS is 1½” in diameter and would not fit the recommended center hole size per Fig. 6 and Fig. 9. ALL H-BURNER MODELS Before you begin installing the H-Burner into a burner pan ensure the center hole is 7/8”... -
Page 9: Installing Key Valve
Cover the burner completely with media but do not make the depth greater than 1-inch over top of the burner portholes. Other approved Firegear Outdoors media such as glass or Lava Stones can also be used. -
Page 10: Typical Installation Drawings
TYPICAL INSTALLATION DRAWINGS Non-Combustible Burner Fire Pit Pan/Disc Fire Pit Enclousure Key Valve Shut-O Gas Supply NOTE: Key valve and flexible gas lines are supplied. Gas shut-off is not supplied. Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional Non-... -
Page 11: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 12: Replacement Parts
REPLACEMENT PARTS Drawings not to scale H- Burner Kit REV. C Page 12... -
Page 13: Replacement Parts List
12-inch Chrome Key (used with all key valves) KEY-PC-12 ½” Flare to ½”FIP U3-8D-S ½” Flare to ½”MIP U1-8D-S See the Firegear Outdoors catalogue for a variety of fittings and flex connectors also available. H- Burner Kit REV. C Page 13... -
Page 14: Converting To Lp Gas
CONVERTING TO LP GAS Converstion Kit Common Parts Btu Ratings LP Orifice OAS-LPK47 #99-8, #113-SS4-D5, 50,000 OAS-LP47 U3-8D-S (14.65kW) OAS-LPK41 #99-8, #113-SS4-D5, 75,000 OAS-LP41 U3-8D-S (21.98kW) OAS-LPK35 #99-8, #113-SS4-D5, 100,000 OAS-LP35 U3-8D-S (29.30kW) OAS-LPK31 #99-8, #113-SS4-D5, 125,000 OAS-LP31 U3-8D-S (36.63kW) OAS-LPK29 #99-8, #113-SS4-D5, 150,000... -
Page 15: Fire Pit Maintenance
ACCESSORIES The following accessories are available from your local Firegear Outdoors dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. Lava Stones 1” to 2” size. Vent Kits provide 18 square inches of LP Conversion Kits Model: FG-LS50 (50lb. - Page 16 FIREGEAR LIMITED WARRANTY - 2020 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 17 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 18 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 19 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard Street, Huntington Beach, CA 92647 www.firegearoutdoors.com Phone: 800-966-8126 Email: order@firegearoutdoors.com...
