LOF-48LHTMSI-N
LOF-48LTTMSI-N
LOF-60LTTMSI-N
Pilot Operated Manual Spark Ignition (TMSI) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
Natural Gas
48" x 14" Linear Fire Pit with "H" Burner
48" x 6" Linear Fire Pit with "T" Burner
60" x 6" Linear Fire Pit with "T" Burner
INSTALLATION PRECAUTION:
PN#90065
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
T-Burner Models
Description
REV. A
Page 1
Advertisement
Table of Contents
Related Manuals for Firegear LOF-48LHTMSI-N
Summary of Contents for Firegear LOF-48LHTMSI-N

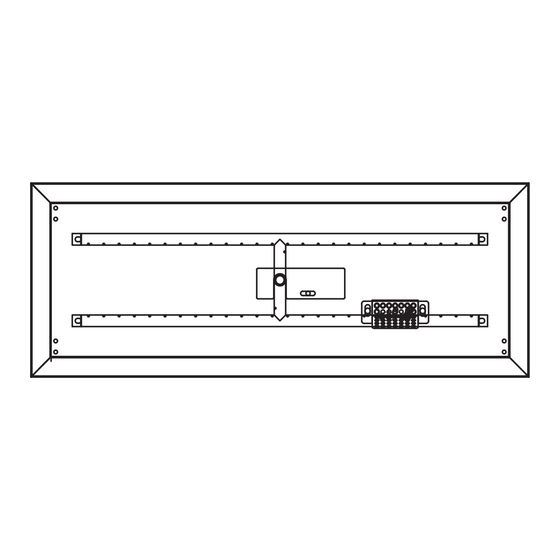

- Page 1 SERIAL #: T-Burner Models H-Burner Models MODELS Natural Gas Description LOF-48LHTMSI-N 48” x 14” Linear Fire Pit with “H” Burner LOF-48LTTMSI-N 48” x 6” Linear Fire Pit with “T” Burner LOF-60LTTMSI-N 60” x 6” Linear Fire Pit with “T” Burner...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or us gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
BURNER OVERALL OVERALL TUBE TO PAN LIP DIMENSIONS DIMENSIONS LENGTH PAN WIDTH LENGTH PAN DIM. DEPTH DEPTH WIDTH LOF-48LHTMSI-N 2¼” ⅜” 49” x 15” 48” x 14” 44” 16½” 50½” 2½” 1¼” (1244 x 381mm) (1219 x 254mm) (1117mm) (1283mm) - Page 5 OFF. Media (not supplied) is required inside the burner pan for operation (See page 12). Firegear Outdoors fire pits are constructed and tested to follow the rigid ANSI standards for gas appliances and manufactured safely providing dependable and certified products. If these fire pits are not installed according to the installation manual (i.e.
-
Page 6: Preparation For Non-Combustible Structure
VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE Examples of Cross Ventilation Fire pits are subjected to many outdoor elements such as rain, 2- Firegear 6 x12 vents snow, wind, heat or cold. A minimum of 18 square inches (Model # VENT-KIT-6X12) (two opposite sides) of cross ventilation is required to keep the components in good working order. -
Page 7: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 8: Installation Into An Approved Enclosure
8. These products are designed for outdoor use only. Not approved for any indoor use. 9. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube, so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”... -
Page 9: Typical Installation Drawings
Non-Combustible Burner Tube Fire Pit Pan Fire Pit Enclousure Shut-O Vents Gas Supply NOTE: Gas shut-off is not supplied. Fig. 6 Typical installation. INSTALLING BATTERY INTO PIEZO IGNITOR 1. Unscrew (counterclockwise) red ignitor knob/button and remove. 2. Insert AA battery (-) negative end into the ignitor battery compartment. 3. -
Page 10: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 11: Replacement Parts
TMSI REPLACEMENT PARTS Drawings not to scale. REV. A Page 11 Line of Fire - TMSI (Piloted) Series Fire Pits... -
Page 12: Media Requirements
Complete Pilot Assembly with Ignitor (not shown) FG-IGNT-ASSY-PI MEDIA REQUIREMENTS Firegear Outdoor glass media comes in 5 lb. bags, Lava Rock comes in 10 lb. bags or 50 lb. box and Lava Stones come in 50 lb. bag. Model Firegear Glass... -
Page 13: Fire Pit Maintenance/Trouble Shooting
2. Ensure fire pit enclosure has proper drainage for water and proper ventilation to dry out. OPTIONAL ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. -
Page 14: Lp Conversion Instructions
Natural to LP Gas Conversion) LOF-BOPO-LP21 ( This instruction will properly convert the fire pit from Natural gas to Propane (LP) gas. Follow the steps below to proceed. See replacement parts section for main burner LP orifice. Step 6: After the main burner orifice and brass fitting is Step 1: Shut OFF gas supply. - Page 15 FIREGEAR LIMITED WARRANTY - 2020 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 16 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 NOTES BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 17 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 18 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard Street, Huntington Beach, CA 92647 www.firegearoutdoors.com Phone: 800-966-8126 Email: order@firegearoutdoors.com...
- Page 19 REV. A Page 19 Line of Fire - TMSI (Piloted) Series Fire Pits...
- Page 20 Having problems getting the fireplace to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
