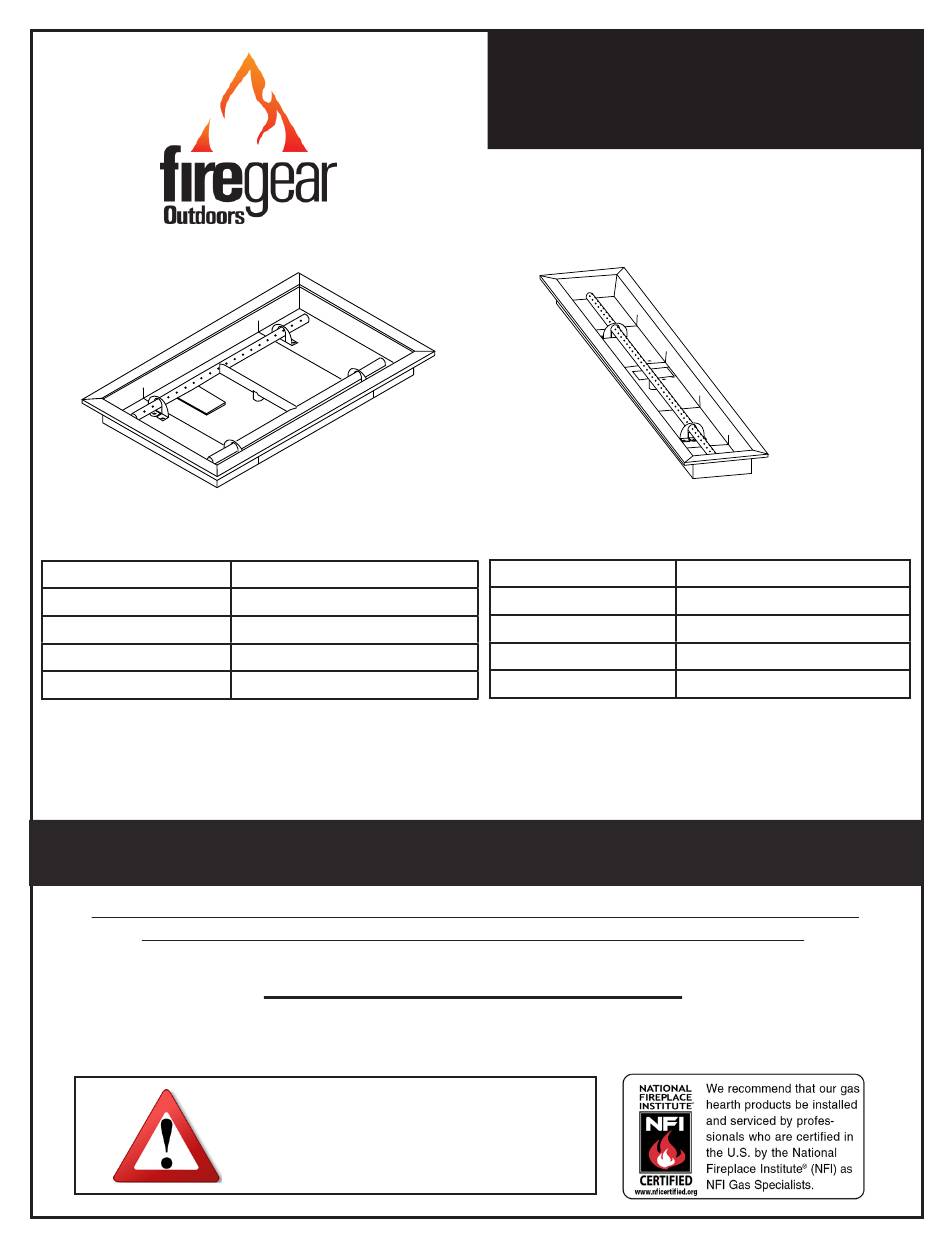

H-Burner
Model
LOF-3012HTMSI-N
LOF-3614HTMSI-N
LOF-4814HTMSI-N
LOF-6016HTMSI-N
Linear Thermocouple Manual Safety (TMSI) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These fire pits are manufactured from the factory for Natural gas only. If you intend using LP gas then you
must purchase a LP conversion kit. See Table of Contents for LP converstion kit information.
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
Description
30" x 12" Fire Pit with H-Burner
36" x 14" Fire Pit with H-Burner
48" x 14" Fire Pit with H-Burner
60" x 16" Fire Pit with H-Burner
INSTALLATION PRECAUTION:
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Model
LOF-3006TTMSI-N
LOF-3606TTMSI-N
LOF-4806TTMSI-N
LOF-6006TTMSI-N
PN#90135
T-Burner
Description
30" x 6" Fire Pit with T-Burner
36" x 6" Fire Pit with T-Burner
48" x 6" Fire Pit with T-Burner
60" x 6" Fire Pit with T-Burner
REV. B
Page 1
Advertisement
Table of Contents
Related Manuals for Firegear LOF-3012HTMSI-N
Summary of Contents for Firegear LOF-3012HTMSI-N
- Page 1 T-Burner H-Burner MODELS Model Description Model Description LOF-3006TTMSI-N LOF-3012HTMSI-N 30” x 6” Fire Pit with T-Burner 30” x 12” Fire Pit with H-Burner LOF-3606TTMSI-N LOF-3614HTMSI-N 36” x 6” Fire Pit with T-Burner 36” x 14” Fire Pit with H-Burner LOF-4806TTMSI-N LOF-4814HTMSI-N 48”...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or us gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
BURNER CUTOUT GROUND SIDE COMBUSTILE COMBUSTIBLE DIMENSIONS DIMENSIONS DIMENSIONS DIMENSIONS LEVEL WALL CEILING FLOOR LOF-3012HTMSI-N ½” ½” 27” x 10” 31” x 13” 8” 36” 96” 18” 30” x 12” x 14 (658 x 254mm) (787 x 279mm) (203mm) (914mm) - Page 5 SPECIFICATIONS MODELS INSIDE PAN OUTSIDE PAN BURNER CUTOUT GROUND SIDE COMBUSTILE COMBUSTIBLE DIMENSIONS DIMENSIONS LENGTH DIMENSIONS LEVEL WALL CEILING FLOOR 30” x 6” ½” x ½” 31” x 7” 8” 36” 96” 18” LOF-3006TTMSI-N 27” (762 x 152mm) (787 x 178mm) (203mm) (914mm) (2438mm)
-
Page 6: Preparation For Non-Combustible Structure
Use the specifications listed on pages 4 and 5 for proper clearance to combustibles. Firegear Outdoors fire pits are constructed and tested to follow the rigid ANSI standards for gas appliances and manufactured safely providing dependable and certified products. If these fire pits are not installed according to the installation manual (i.e. -
Page 7: Cross Ventilation Requirements
7. These products are designed for outdoor use only. Not approved for any indoor use. 8. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube, so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”... -
Page 8: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 9: Preparing Burner Pan For Installation
PREPARING BURNER PAN FOR INSTALLATION Burner Pan Lock Nut INSTALLING BURNER ORIFICE (OAS) Locate the burner nipple underneath the burner pan. Ensure the nipple from on the spur burner has gas rated Teflon tape wrapped around the threads. Thread the OAS OAS# (orifice air shutter) on to the nipple of the burner clockwise manner. -
Page 10: Typical Installation Drawings
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE Non-Combustible Enclosure Burner Pan Spur Burner Piezo Wire 48” Piezo Wire 25” Gas Valve Thermocouple Gas Supply Piezo Shut-O Gas valve and flexible gas lines are supplied; E-Stop shut-off is not supplied, but available in accessories page. -
Page 11: Media Requirements & Final Checks Before Operation
MEDIA REQUIREMENTS Media Required Lava Glass Lava Media Required Lava Glass Lava Per H-Burner Rock Only Stones Per T-Burner Rock Only Stones Models Only Only Models Only Only LOF-3012HTMSIN 15lbs 20lbs 15lbs LOF-3006TTMSI-N 10lbs 10lbs 10lbs LOF-3614HTMSI-N 20lbs 25lbs 20lbs LOF-3606TTMSI-N 10lbs 15lbs... -
Page 12: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. - Page 13 TMSI REPLACEMENT PARTS Drawings not to scale. Burner Tube Port Holes REV. B Page 13 Drop in Pan - TMSI Fire Pits...
-
Page 14: Replacement Parts
REPLACEMENT PARTS Description Qty. Part Number Item 30” x 12” LH-Burner Pan Only (used with 27” x 10” burner) 78041 36”x 14” LH-Burner Pan Only (used with 33” x 10” burner) 78042 48” x 14” LH-Burner Pan Only (used with 45” x 10” burner) 78043 60”... -
Page 15: Fire Pit Maintenance/Trouble Shooting
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. -
Page 16: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available from your local Firegear Outdoors dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. Media Lava Stones 1” to 2” size (50lbs.) Models: FG-LS50 (Bag) Lids for T-Burner Fire Pits Lids for H-Burner Fire Pits Lava Rock 1”... -
Page 17: Liquid Propane (Lp) Conversions
CONVERTING TO LP GAS Converstion Kit Common Parts Btu Ratings LP Orifice Models OAS-LPK41 S499-8; 113-SS4-D5; 75,000 OAS-LP41 LOF-3006TTMSI-N U3-8D-S (21.98kW) LOF-3012HTMSI-N LOF-3606TTMSI-N LOF-3614HTMSI-N OAS-LPK29 S499-8; 113-SS4-D5; 100,000 OAS-LP35 LOF-4806TTMSI-N (29.30kW) U3-8D-S LOF-4814HTMSI-N LOF-6006TTMSI-N LOF-6016TTMSI-N Table 6 LP conversion chart When converting Burners to LP gas the main burner orifice must be kept a minimum of 6-inches away from the burner connection (nipple) to prevent any back pressure at the LP orifice. - Page 18 FIREGEAR LIMITED WARRANTY - 2020 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 19 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 20 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 21 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 22 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard Street, Huntington Beach, CA 92647 www.firegearoutdoors.com Phone: 800-966-8126 Email: order@firegearoutdoors.com...
- Page 23 Fire Pit Spur Burner Male Threads: Requires Compound or Tape Note: Use joint compound or Te on tape resistant to all gasses on all Optional Cutout Template for male NPT threads; not ared ttings. Ensure all connections are tight and TMS Face Plate check for gas leaks before and after assembly is complete.
- Page 24 Having problems getting the gas appliance to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
