Inspecting the Switch

2.2 INSPECTING THE SWITCH
Depending on the configuration ordered, your switch looks similar to the unit in Figure 2-1. The SmartSwitch
9A100-04 has four I/O modules.

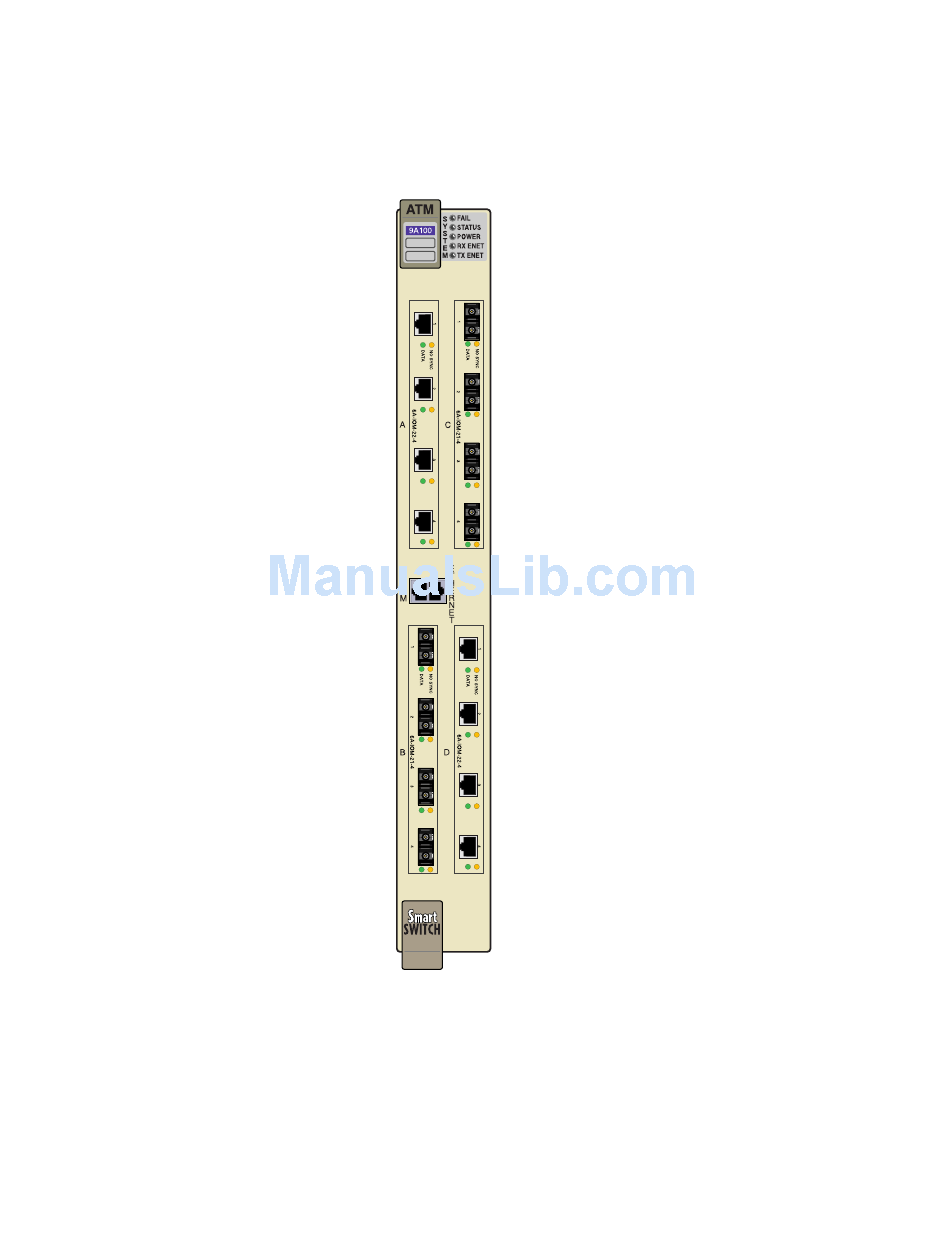

Figure 2-1 SmartSwitch 9A100-04 front panel

Inspect the switch and make certain that its configuration corresponds to what was ordered. Also, make certain that the
input/output (I/O) modules are of the correct type and number (See Table 2-1).
