SmartSwitch 9000
9H531-18 and 9H532-18
18 Port Fast Ethernet Module
User's Guide
9033185-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMAC-Plus 9H531-18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cabletron Systems MMAC-Plus 9H531-18

Summary of Contents for Cabletron Systems MMAC-Plus 9H531-18

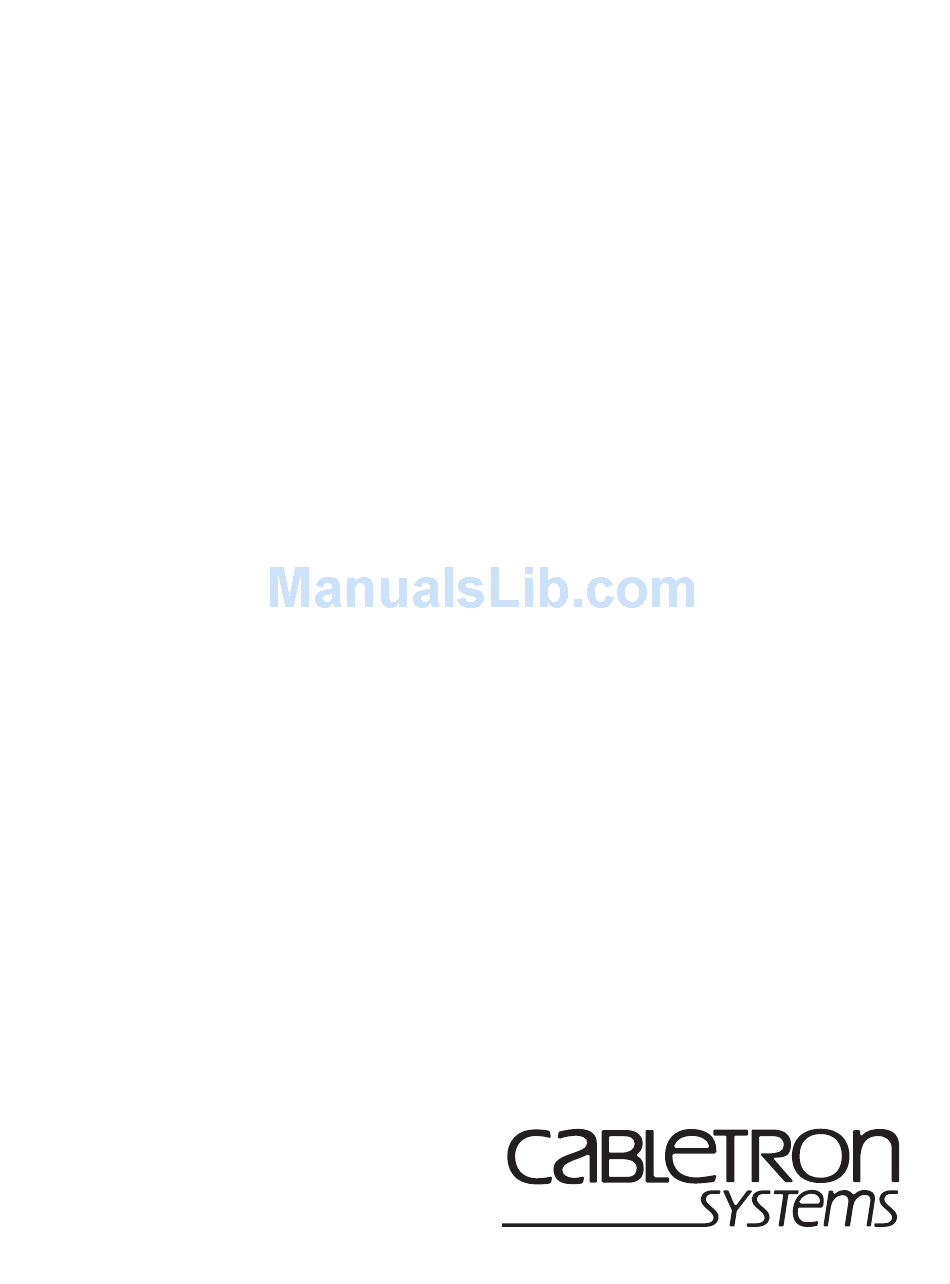

  • Page 1 SmartSwitch 9000 9H531-18 and 9H532-18 18 Port Fast Ethernet Module User’s Guide 9033185-01...

  • Page 3: Fcc Notice

    Notice NOTICE Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, firmware, or software described in this manual is subject to change without notice.

  • Page 4: Program License Agreement

    Notice IMPORTANT: THIS LICENSE APPLIES FOR USE OF PRODUCT IN THE FOLLOWING GEOGRAPHICAL REGIONS: CANADA MEXICO CENTRAL AMERICA SOUTH AMERICA BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package.
  • Page 5 EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including its documentation and media). CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO YOU BY CABLETRON IN WRITING, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE ACCOMPANYING WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.
  • Page 6 Notice export to Country Groups D:1 or E:2 the direct product of the plant or a major component thereof, if such foreign produced direct product is subject to national security controls as identified on the U.S. Commerce Control List or is subject to State Department controls under the U.S. Munitions List.
  • Page 7 EXPORT REQUIREMENTS. You understand that Cabletron and its Affiliates are subject to regulation by agencies of the U.S. Government, including the U.S. Department of Commerce, which prohibit export or diversion of certain technical products to certain countries, unless a license to export the product is obtained from the U.S. Government or an exception from obtaining such license may be relied upon by the exporting party.

  • Page 8: Declaration Of Conformity

    Notice Application of Council Directive(s): Manufacturer’s Name: Manufacturer’s Address: European Representative Name: European Representative Address: Conformance to Directive(s)/Product Standards: Equipment Type/Environment: We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives. Manufacturer Mr.

  • Page 9: Table Of Contents

    Chapter 2 Installing the Module Unpacking the Module... 2-1 User-Accessible Components... 2-1 Using DIP Switch 6 ... 2-4 Installing GPIMs ... 2-4 Installing the Module in the SmartSwitch 9000 Chassis ... 2-6 The Reset Switch ... 2-8 Cabling Requirements ... 2-9 10BASE-T Network...
  • Page 10 Contents Performance ... 5-1 Regulatory Compliance... 5-2 Service ... 5-2 Physical... 5-2 Dimensions ... 5-2 Weight... 5-2 Environment ... 5-2 Appendix A GPIM Specifications GPIM-01 Specifications (1000Base-SX)...A-1 GPIM-09 Specifications (1000Base-LX) ...A-2 Physical and Environmental Specifications ...A-2 Regulatory Compliance...A-3 viii...

  • Page 11: Chapter 1 Introduction

    Introduction The 9H531-18 and 9H532-18 (Figure 1-1) are switching modules for the SmartSwitch 9000. Each module has 18 ports. The 9H531-18 has: • 16 MT-RJ 100 Mbps multimode fiber Ethernet ports • 2 Gigabit Ethernet ports supporting hot-swappable GPIMs of either multimode or single mode fiber The 9H532-18 has: •...

  • Page 12: Features

    Introduction Features Processor The 9H531-18 and 9H532-18 modules are equipped with an advanced Intel i960 microprocessor. This microprocessor provides a platform for all management functions such as Spanning Tree, RMON, and MIB support, within a scalable RISC-Based architecture. Management Management of the 9H531-18 and 9H532-18 modules and SmartSwitch chassis and any optional equipment is accomplished using the Local Management application or remote SNMP management stations.
  • Page 13 FAST ENET 9H531-18 Figure 1-1. The 9H531-18 and 9H532-18 Module Introduction FAST ENET 9H532-18...
  • Page 14 Introduction Auto-negotiation The auto-negotiation feature allows the module to automatically use the fastest rate supported by the device at the other end (either 10 Mbps or 100 Mbps at either half or full duplex). To negotiate duplex, the 9H532-18 module and the attached device must be configured for auto-negotiation.
  • Page 15 The 9H531-18 and 9H532-18 provide IEEE Standard-based 802.1 switching or SecureFast Switching Virtual Network Services. In the 802.1 mode (the default mode of operation), the switch functions as an 802.1D switch. When until VLANs are configured, it operates as an 802.1Q switch.
  • Page 16 Introduction GARP Switch Operation Some or all ports on the switch may be activated to operate under the Generic Attribute Registration Protocol (GARP) applications, GARP VLAN Registration Protocol (GVRP) and/or GARP Multicast Registration Protocol (GMRP). GARP is a protocol, or set of rules, that outlines a mechanism for propagating the port state and/or user information throughout a bridged LAN to keep track of users and VLANs on the network fabric.

  • Page 17: Related Manuals

    Related Manuals The Cabletron Systems manuals listed below should be used to supplement the procedures and technical data contained in this manual. SmartSwitch 9000 Installation Guide SmartSwitch 9000 9C300-1 Environmental Module User’s Guide SmartSwitch 9000 9C214-1 AC Power Supply User’s Guide SmartSwitch 9000 9X5XX Series Local Management User’s Guide Cabling Guide Ethernet Technology Guide...
  • Page 18 Introduction • A description of any action(s) already taken to resolve the problem (e.g., changing mode switches, rebooting the unit, etc.) • The serial and revision numbers of all involved Cabletron Systems products in the network • A description of your network environment (layout, cable type, etc.) •...

  • Page 19: Installing The Module

    User-Accessible Components Figure 2-1 shows the various components that can be accessed by users. These consist of an eight-position dip switch (explained in the next section), replaceable PROMs, and sockets for memory and flash upgrades. These can be used for future upgrades.
  • Page 20 Installing the Module DIP Switch Figure 2-1. User-Accessible Components SMB-1 PROM i960 Processor 32mb DRAM Flash SIMM Socket Boot PROM...
  • Page 21 The DIP switch on the module (Figure 2-1), is an eight-switch DIP located near the left, bottom corner of the module. Each switch is set according to the functions described in Table 2-1. If switch settings are changed, the processor on the module must be reset, using the reset switch or repowering the module, for changes to take effect.

  • Page 22: Using Dip Switch 6

    Installing the Module Using DIP Switch 6 The purpose of DIP switch 6 is to force a Flash download from a BootP server through the EM-EPIM. The first step in this process is to configure the BootP server. Configurations of BootP servers can differ from platform to platform and from one operating system to another.
  • Page 23 Network Connection End Figure 2-2. GPIM 4. Gently insert the GPIM (20-pin connector side) through the GPIM opening of the SmartSwitch 9000 module, as shown in Figure 2-3. The door folds sideways and the slides engage the sides of the GPIM. If the GPIM does not go in easily, do not force the device.

  • Page 24: Installing The Module In The Smartswitch 9000 Chassis

    Installing the Module Installing the Module in the SmartSwitch 9000 Chassis To install the module in the SmartSwitch 9000 chassis, follow the steps below: The INB Terminator Modules must be installed on the rear of the fourteen slot NOTE chassis before powering up this module. The INB Terminator Modules are not required on the six slot chassis.
  • Page 25 Metal Back-Panel Ensure that the circuit card is between the card guides. Lock down the top and bottom plastic tabs at the same time, applying even pressure. Figure 2-4. Installing the Module FLNK FLNK FLNK FLNK FLNK Jack for ESD wrist strap Circuit Card Card Guides...

  • Page 26: The Reset Switch

    Installing the Module The Reset Switch The Reset switch is located on the front panel, under the top plastic tab as shown in Figure 2-5. It serves three functions: resetting the i960 processor, shutting down the module, or restarting the module.

  • Page 27: Cabling Requirements

    Cabling Requirements 10BASE-T Network When connecting a 10BASE-T segment to the front panel ports of a 9H532-18 module, ensure that the network meets the Ethernet network requirements of the IEEE 802.3 standard for 10BASE-T. If a port is to operate at 100 Mbps, Category 5 cabling must be used.
  • Page 28 Installing the Module 2-10...

  • Page 29: Technical Overview

    802.1 switching, or SecureFast switching. The module supports only one of these modes of operation at any one time. When operating in traditional IEEE 802.1 switch mode, the modules make filtering/forwarding decisions based on Destination Address (DA), with standard IEEE 802.1D learning. 802.1Q VLANs are also supported.
  • Page 30 Technical Overview Gigabit Port Gigabit Port Octal Front Panel Ports (16) Octal DC/DC Converter Diagnostic i960 Controller Processor Ethernet Controller ASIC Smart Switch Fabric ASIC Figure 3-1. Block Diagram SmartSwitch 9000 Backplane 48 Volt Power Bus SMB 1 SMB 10...

  • Page 31: System Management Buses

    System Management Buses There are two management channels within the SmartSwitch 9000 system: the SMB-1 and the SMB-10. These buses provide side-band management and inter- module management communication. SMB-1 Bus The SMB-1 is a 1 Mbps management bus located within the SmartSwitch 9000. This bus is utilized by all diagnostic controllers in the system including connectivity modules, power supply modules and the environmental module.

  • Page 32: System Diagnostic Controller

    Technical Overview System Diagnostic Controller This diagnostic controller is composed of a Z-80 microprocessor and its supporting logic. The diagnostic controller is designed to control the power-up sequencing of modules, monitor the modules’ input and output power parameters, keep watch over the main host processor, monitor the temperature, and control the SMB LANVIEW diagnostic LEDs.

  • Page 33: Lanview Leds

    Status Speed Status (Mode Switch in DOWN Position) LED functions when LED MODE switch is in the RX-TX position. This is the default switch setting. LED functions when LED MODE switch is in the DPX-SPD position. Figure 4-1. The LANVIEW LEDs...
  • Page 34 LANVIEW LEDs The functions of the two System Status LEDs, System Management Bus (SMB) and CPU (Central Processing Unit), are listed in Table 4-1. Table 4-1. System Status (SMB and CPU) LEDs LED Color Green Functional Yellow Testing Yellow (Blinking) Crippled Yellow/Green Booting...
  • Page 35 The functions of the Port Receive LEDs are listed in Table 4-4 Table 4-4. Port Receive LEDs LED Color Green Link, no activity port enabled Green (Blinking) Link, port disabled Yellow (Flashing) Link, activity, port enabled (flashing to steady on indicates rate) Fault No link, (port disabled)
  • Page 36 Green (Flashing) Yellow (Flashing) The functions of the Speed and Full Duplex LEDs are list in Table 4-8 and Table 4-9. These LED indications are only valid when the LED MODE switch is in the DPX-SPD position. LED Color Green...

  • Page 37: Chapter 5 Specifications

    4 MB Memory (shared) Network Interfaces 16 fixed RJ45 UTP connectors or 16 MT-RJ multimode fiber optic connectors 2 modular Gigabit (GPIM) uplinks Performance Module Switch Fabric bandwidth 3.3 Gbps Module Throughput Source Address Table 2.2 Mpps 16 K entries...

  • Page 38: Regulatory Compliance

    Specifications Regulatory Compliance It is the responsibility of the person who sells the system to which the module will be a part to ensure that the total system meets allowed limits of conducted and radiated emissions. CAUTION This equipment meets the following safety and electromagnetic compatibility (EMC) requirements: Safety Electromagnetic Compatibility...

  • Page 39: Appendix A Gpim Specifications

    GPIM Specifications This appendix lists the specifications and regulatory requirements for GPIMs and the media they use. Cabletron Systems reserves the right to change these specifications at any time without notice. The available GPIM options include the GPIM-01 and GPIM-09. The GPIM-01 and GPIM-09 are both fiber optic devices with an SC connector.

  • Page 40: Gpim-09 Specifications (1000Base-Lx

    GPIM Specifications GPIM-09 Specifications (1000Base-LX) Transmit Power (minimum) Receive Sensitivity Link Power Budget 62.5 µm MMF 50 µm MMF 50 µm MMF 10 µm SMF In order to obtain the distance of 550 m for the GPIM-09 using multimode fiber, Launch Mode Conditioning cable must be used. Physical and Environmental Specifications Dimensions Weight...

  • Page 41: Regulatory Compliance

    Regulatory Compliance The GPIMs meet the following safety and electromagnetic compatibility (EMC) requirements: Eye Safety (fiber GPIMs only) Table A-7. Regulatory Compliance FDA CDRH 21-CFR 1040 Class 1, IEC 825 Issue 1 1993:11 Class 1, CENELEC EN 60825 Class 1 Regulatory Compliance...
  • Page 42 GPIM Specifications...
