Using LANVIEW

Using LANVIEW
These switches support the Enterasys Networks built‐in LANVIEW LED visual
diagnostic and status monitoring system. The LANVIEW LEDs on the A2H123‐24 are
shown in Figure
diagnosing switch and network problems.

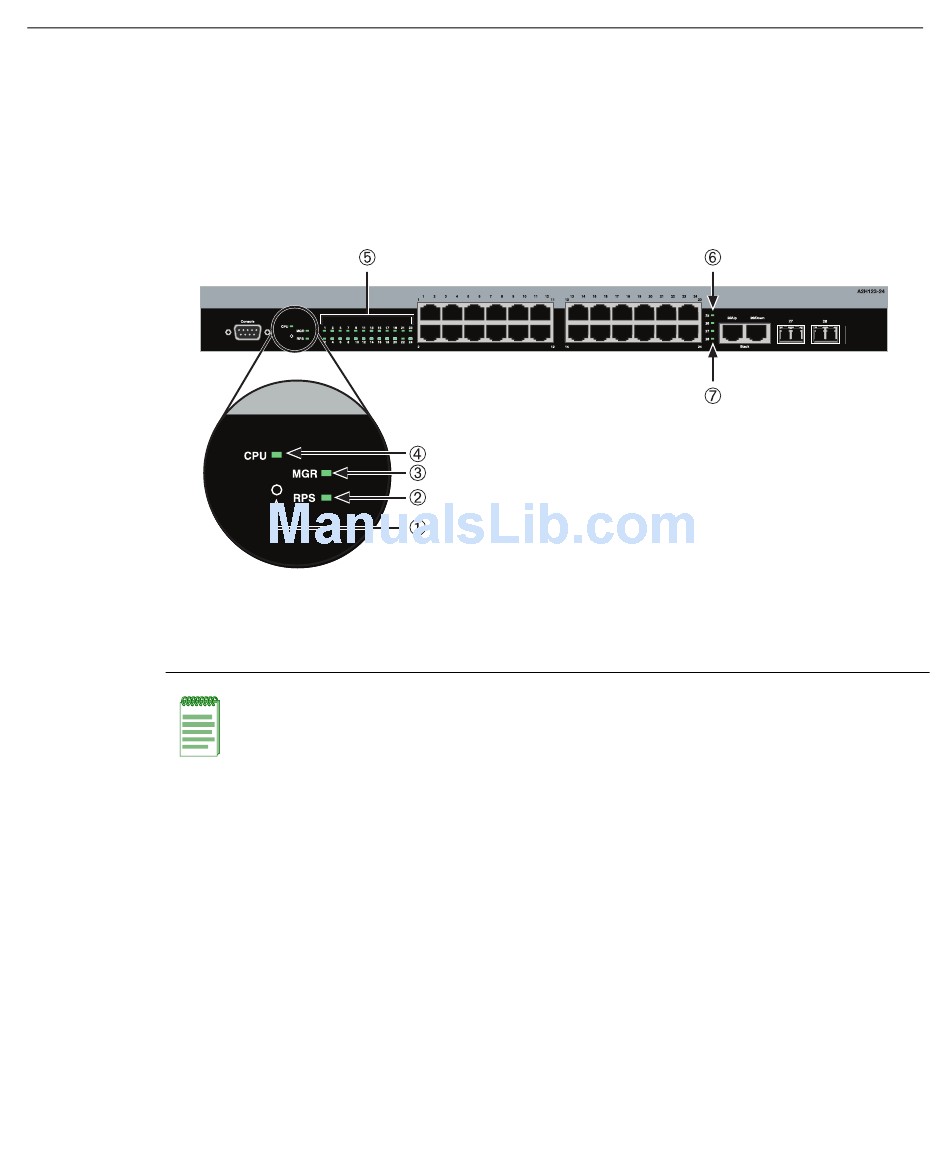

Figure 4-1
1 Recessed password reset button
2 Redundant power supply active
3 Unit selected as stack manager
4 CPU and power indicator
4-2 Troubleshooting
4‐1. These LEDs allow you to quickly observe network status for

LANVIEW LEDs of A2H123-24

Note: The terms flashing, blinking, and solid used in
Flashing: LED is flashing randomly.
Blinking: LED is flashing at a steady rate (approximately 50% on, 50% off).
Solid: LED is on steady and not pulsing.
5 10/100 Mbps ports Link/Activity LEDs
6 1000 Mbps stacking ports Link/Activity LEDs
7 LC connector ports Link/Activity LEDs
Table 4-1 indicate the following:
