d. Ensure that the twisted pair connection meets the dB loss and cable specifications
outlined in the Cabling Guide. Refer to "Related Documents" on page xvi for
information on obtaining this document.
4. If a link is not established, contact Enterasys Networks. Refer to "Getting Help" on
page xviii for details.
Repeat all steps above until all connections have been made.

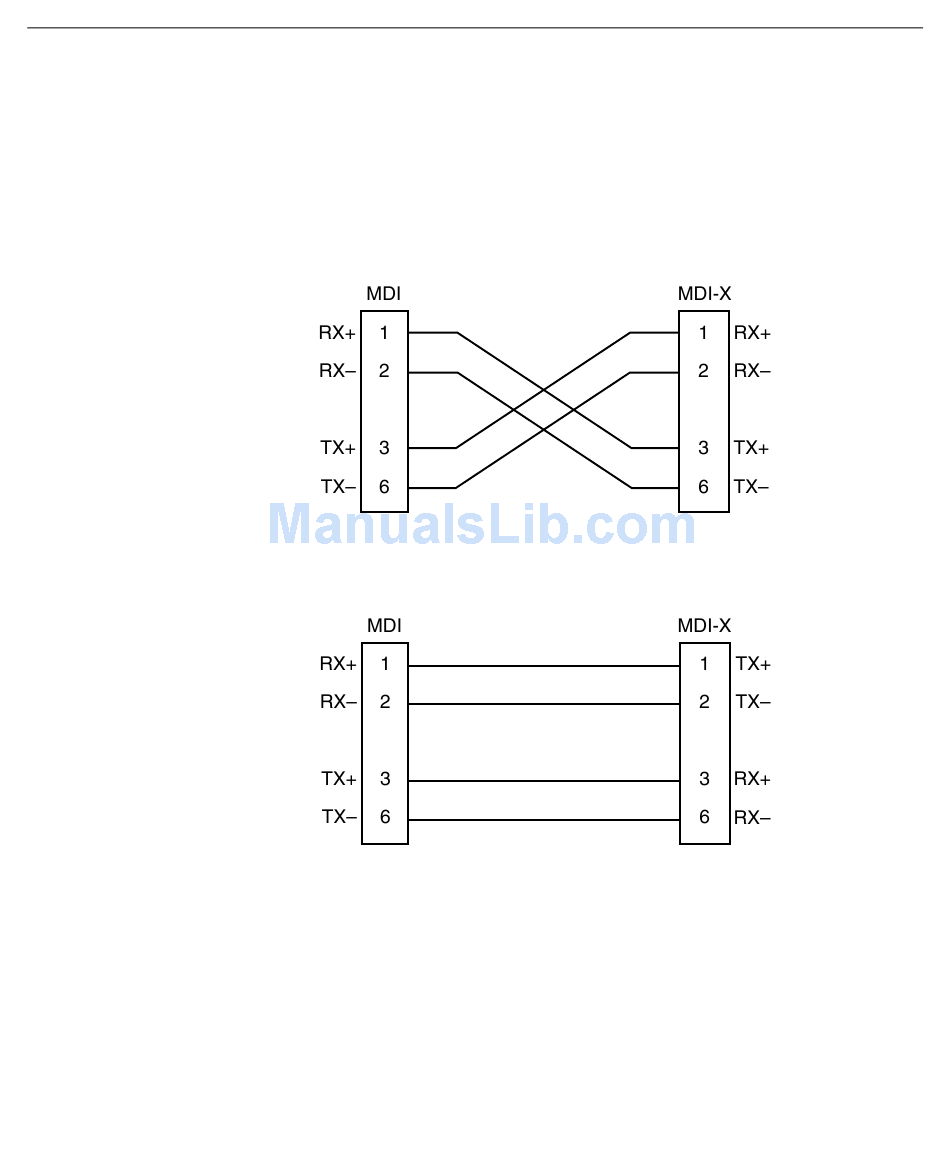

Figure 3-13

Four-Wire Crossover Cable RJ45 Pinouts for 10/100BASE-TX

Figure 3-14

Four-Wire Straight-Through Cable RJ45 Pinouts for 10/100BASE-TX

Connecting to the Network
SecureStack A2 Installation Guide 3-21
