Connecting AC and RPS-SYS Power

C2RPS-SYS Redundant Power System

If you are installing an optional redundant power system (C2RPS‐SYS), refer to the
installation instructions supplied with the SecureStack RPS. The switch is connected to a
C2RPS‐PSM using a C2RPS‐PSM Cable.

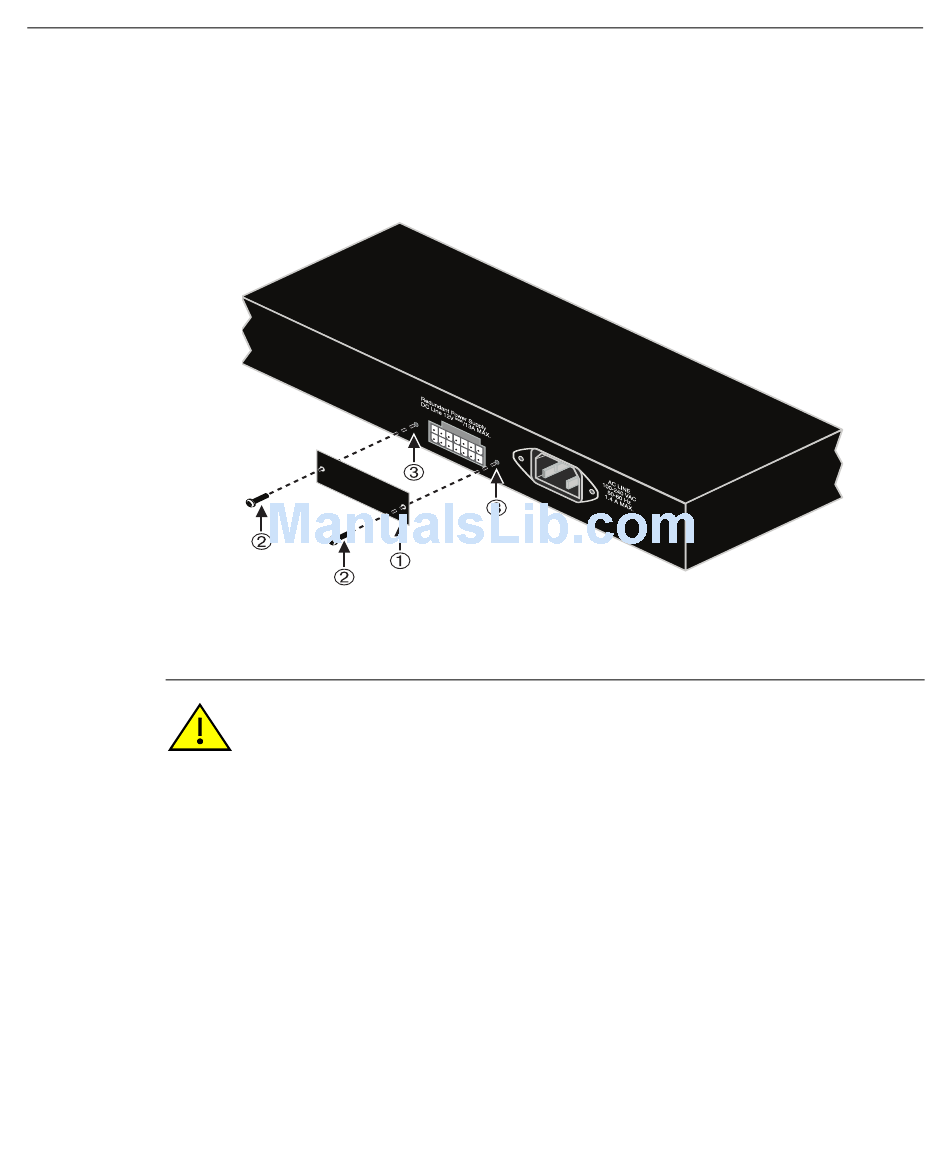

Figure 3-7
1 RPS coverplate
2 Retaining screws to fasten plate
If you are installing the switch as a standalone switch, proceed to "Connecting to Console
Port for Local Management" on page 3‐15. If you are installing switches in a stack
configuration, apply power to each switch in order, according to the procedure described
in "Configuring Switches in a Stack" on page 3‐9.
3-14 Hardware Installation

Accessing the RPS Connector

Caution: To prevent damaging the switch, DO NOT connect a Power over
Ethernet-compliant Redundant Power System (C2RPS-POE) to the redundant power
supply connector. The switch is only compatible with the SecureStack C2RPS-SYS
redundant power supply system.
Precaución: No conecte una fuente de poder redundante (RPS) SecureStack PoE
(C2RPS-POE) al cable de corriente. De lo contrario, el dispositivo puede dañarse.
3 Screw holes for coverplate
