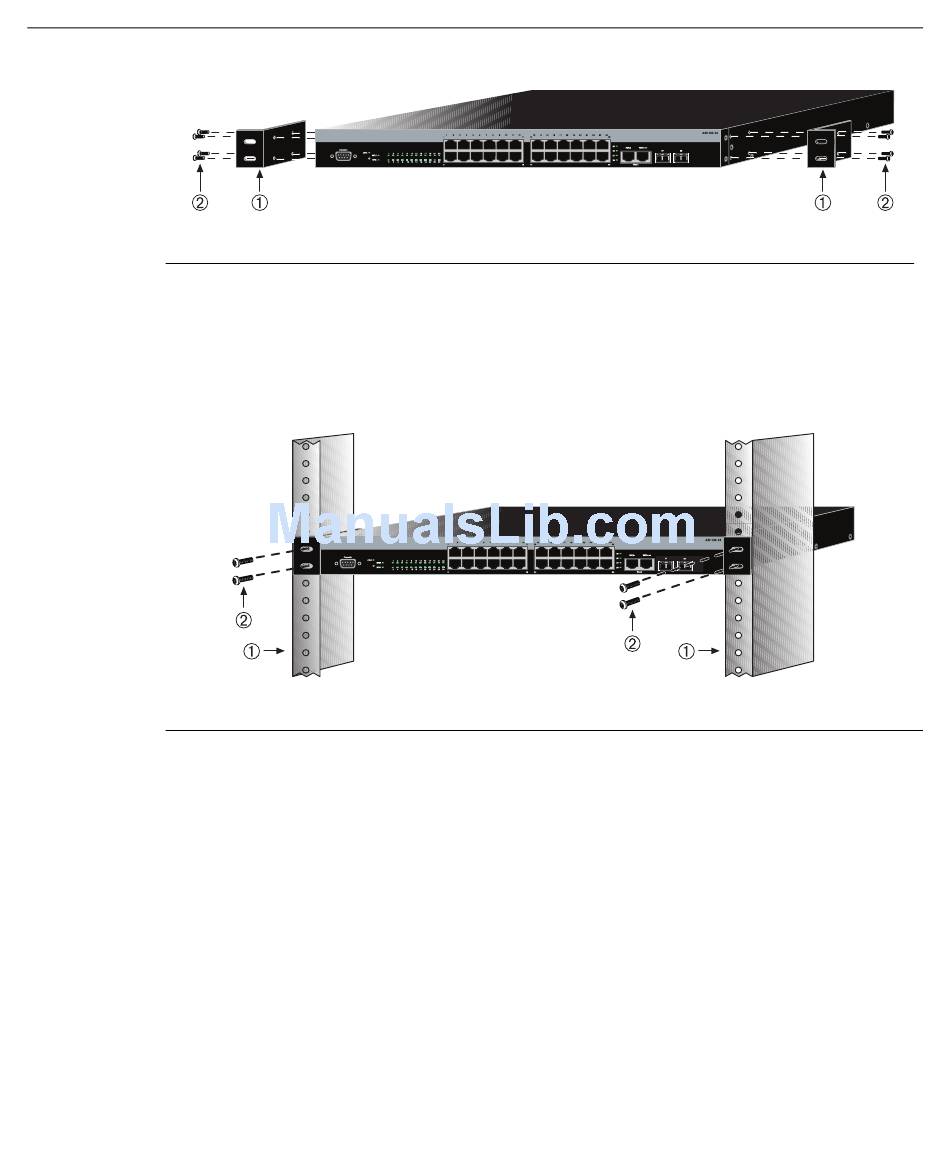

Figure 3-3
1 Rackmount brackets
2. With the mounting brackets attached, position the switch between the vertical frame
members of the 19‐inch rack as shown in Figure
to the frame using four mounting screws (user supplied). Refer to "Torque Values" on
page A‐4 for recommended torque values by screw size.
Figure 3-4
1 Rails of 19-inch rack
3. If you are installing this switch in a stacked configuration, repeat this procedure for
each switch until all switches have been installed in the stack, then proceed to
"Connecting Stacking Cables" on page
and RPS‐SYS Power" on page 3‐12.

Connecting Stacking Cables

The stack of switches can be connected in a closed loop or daisy chained. In a closed loop,
all the switches are connected in sequence and the last switch in the stack is connected
back to the first switch. In a daisy chain configuration, the cable that would return the
connection back to the first switch in a closed loop is not installed. The advantage of the
closed loop is redundancy—this configuration eliminates any single point of failure. Up to
eight switches can be stacked together and connected by standard UTP Category 5 or
better cables. The stacking cables allow the entire stack to operate with a single IP address.

Attaching the Rackmount Brackets

Fastening the Switch to the Rack

2 M3x6 mm flathead screws
3‐4. Then fasten the switch securely
2 Mounting screws (supplied by user)
3‐7. Otherwise, proceed to "Connecting AC
SecureStack A2 Installation Guide

Connecting Stacking Cables

3-7
