1.1 Related Documentation

TPS3899 Nano 125 nA I
Q
and Reset Delay, SLVSFM0.

1.2 TPS3899 Applications

• Grid Infrastructure (Circuit Breakers, Smart Meters, monitor and protection equipment)
• Factory Automation (Field Transmitters, PLC)
• Fire Safety Systems
• Electronic Point of Sale
• Portable, Battery-Powered Systems

2 Schematic, Bill of Materials, and Layout

This section provides a detailed description of the TPS3899EVM schematic, bill of materials (BOM), and layout.
SLVUBZ3 – SEPTEMBER 2020
Submit Document Feedback

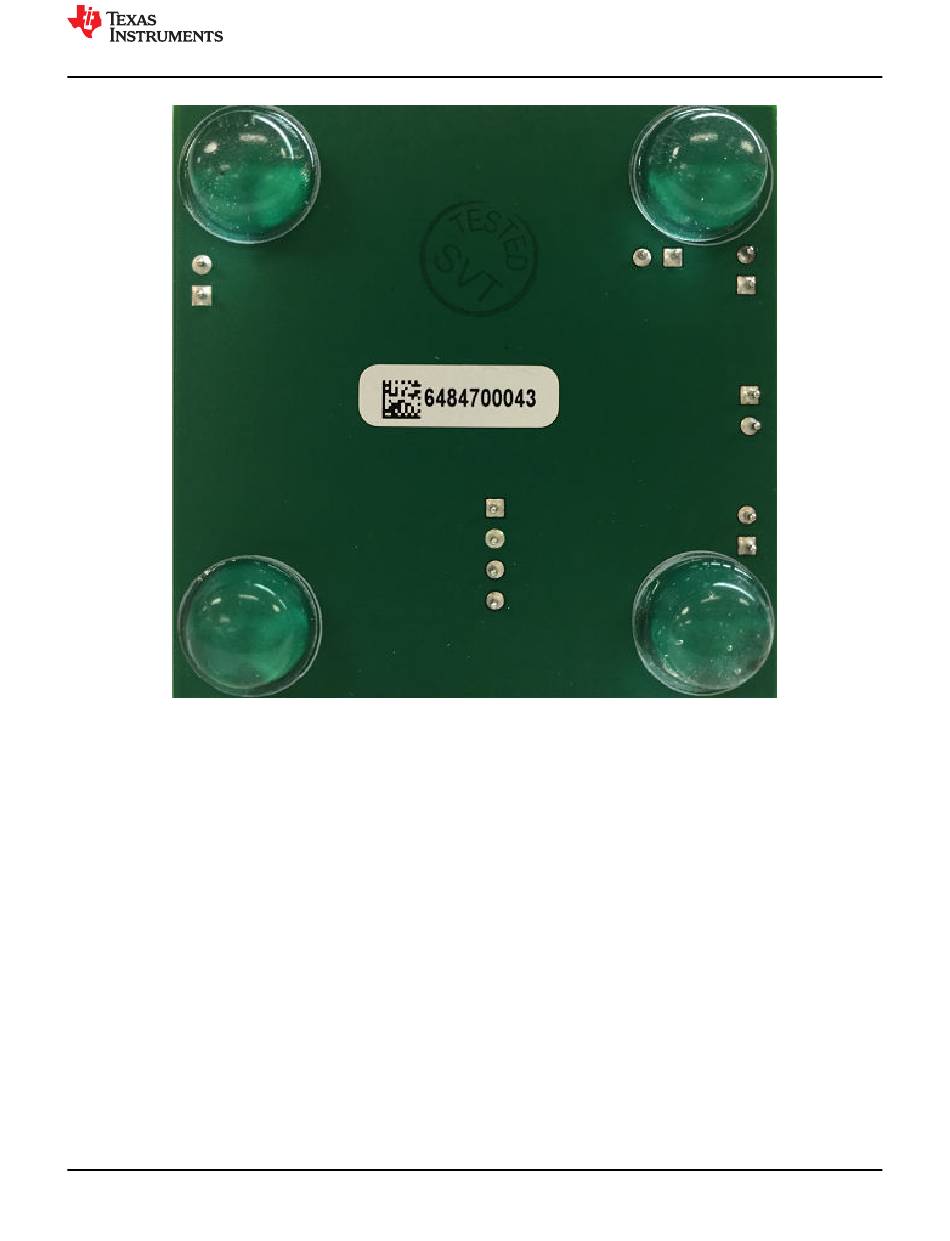

Figure 1-2. Board Bottom
