EVM User's Guide: TPS389387EVM

TPS389387EVM Joint Evaluation Module

Description

The TPS389387EVM demonstrates the functionality

of the TPS38700S-Q1 sequencer and TPS389006

voltage monitoring device. If needed, then connectors

and pins are provided to give the user access for

oscilloscope or multi-meter measurements.

The EVM comes pre-populated with two devices: a

TPS389006 I2C programmable 6 channel supervisor

and a TPS38700S-Q1 I2C programmable 6 channel

sequencer. The EVM is intended to be operated with

an up to 12 rail programmable virtual power tree

generated from MSP430 launchpad dev board. This

EVM must be used with the MSP430 MCU variant,

MSP430FR2355.

Get Started

1. Order the TPS3839387EVM.

2. Order additional components

a. MSP430 MCU variant, MSP430FR2355

(MSP-EXP430FR2355).

b. USB-TO-GPIO2 connector (USB-TO-GPIO2).

3. Download

Code Composer Studio

development environment (IDE).

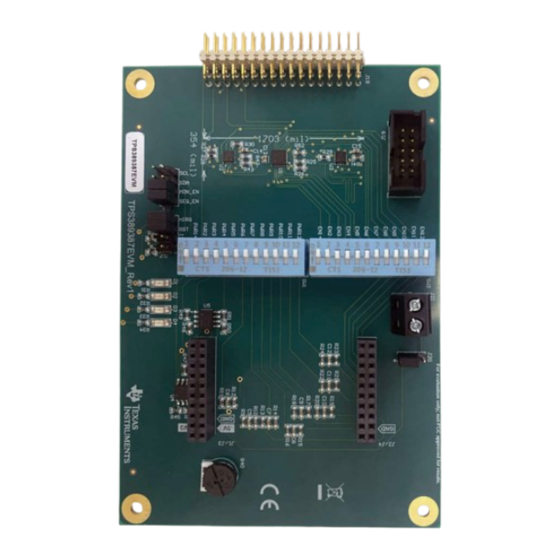

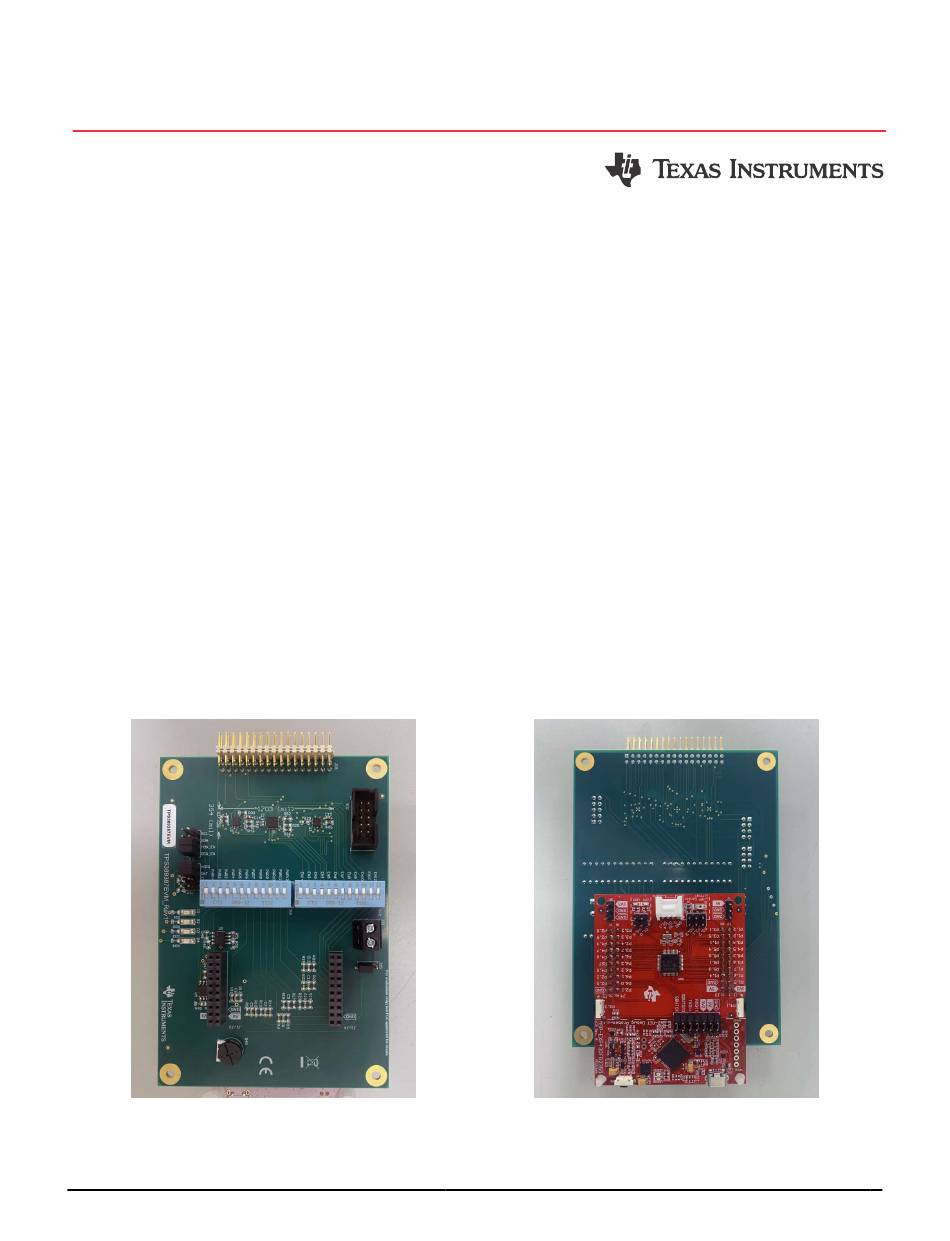

TPS389387EVM Board Top

SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024

Submit Document Feedback

4. Download the

Platform GUI originally designed for the

TPS38700Q1EVM.

5. Download the

code referenced in

Instructions.

6. Download the comprehensive reference design

files.

7. See the latest Design & development pages for

MSP430

Features

•

TPS3839387EVM is a USB-powered EVM, but

has additional provision for external power.

•

There is a connector available to interface with

different power tree types.

Applications

•

Wired networking

•

Data center & enterprise computing

•

Motor drives

•

Factory automation & control

•

Grid infrastructure

•

Advanced driver assistance system (ADAS)

™

integrated

TPS389387EVM Board Bottom with MSP430

Fusion Digital Power Designer

zip file

containing the .C

TPS389387EVM Evaluation

™

TPS389387EVM Joint Evaluation Module

Description

Need help?

Do you have a question about the TPS389387EVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TPS389387EVM

Page 1 EVM User's Guide: TPS389387EVM TPS389387EVM Joint Evaluation Module 4. Download the Fusion Digital Power Designer Description Platform GUI originally designed for the The TPS389387EVM demonstrates the functionality TPS38700Q1EVM. of the TPS38700S-Q1 sequencer and TPS389006 5. Download the zip file containing the .C voltage monitoring device.
Page 2 • The graphical user interface (GUI) to control the configurable parameters of the sequencer IC, TPS38700S- • A zip file contained editable code that controls the TPS389387EVM. This is run through Code Composer Studio IDE (CCS), and can be downloaded here.
Page 3 The voltage thresholds can be changed to UV voltage thresholds for both sequencing up and down. Note that the TPS389006 defaults to using OFF voltage threshold (MONx<140mV) for sending the SYNC pulse when sequencing down. SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 4 Table 2-1 defines the location and function of all connectors, headers, jumpers and LEDs on the EVM. Use Figure 6-1 or the labeled diagram for further reference of pin numbers. Table 2-1. Connectors, Headers, LEDs of TPS389387EVM Location Pins/Silkscreen Label Function/Description J1/J2/J3/J4 Connector to MSP430.
Page 5 Hardware Table 2-1. Connectors, Headers, LEDs of TPS389387EVM (continued) Location Pins/Silkscreen Label Function/Description Pin 1 Allows user to monitor TPS389006 Power Rail 12. Pin 2 Allows user to monitor TPS38700S-Q1 Enable 12. Pin 3 Allows user to monitor TPS389006 Power Rail 11.
Page 6 Hardware www.ti.com Table 2-1. Connectors, Headers, LEDs of TPS389387EVM (continued) Location Pins/Silkscreen Label Function/Description PWR1 Switch for TPS389006 Power Rail 1. PWR2 Switch for TPS389006 Power Rail 2. PWR3 Switch for TPS389006 Power Rail 3. PWR4 Switch for TPS389006 Power Rail 4.
Page 7 Hardware 2.3 EVM Jumpers Table 2-2 lists the jumpers on the TPS389387EVM. The EVM has five jumpers installed. Table 2-2. Jumper Configuration Jumper Pins/Silkscreen Label Jumper Configuration Open Open MON_EN Shunted SEQ_EN Shunted nIRQ Shunted Shunted I2C Pullup Open If Shunted, then external power supply is 5 V.
Page 8 TPS389006-Q1 data sheet to verify proper voltage monitored values. To test the functionality of TPS389387EVM, go to TPS389387EVM Evaluation Instructions. To communicate with the TPS38700S-Q1 and TPS389387EVM, including reading and writing to the registers, as well as clearing interrupts, follow TPS38700-Q1 GUI instructions.
Page 9 Hardware Setup Follow the steps below for the hardware setup: 1. Attach the MSP430 to the pins at the bottom side of the TPS389387EVM. The orientation is detailed in TPS389387EVM Board Bottom with MSP430. Make sure that the GND pins match the corresponding board connector.
Page 10 If CCS does not show a checkmark, then this means that your workspace already has a project by that name. Resolve this by renaming or deleting that project. TPS389387EVM Joint Evaluation Module SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 11 If the value after the "=" is a 0, then an enable signal from the sequencer is not required. If this value is set to 1, then an enable signal from the sequencer is required to start up. SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 12 TPS389006. Figure 4-5. Power Sequence Up with Sync TPS389387EVM Joint Evaluation Module SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 13 LED3 (D3) and LED4 (D4) turn on when Enable 2 and Enable 3 are activated, respectively. This can be verified in the same way as LED2. SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 14 Platform GUI for TPS38700Q1EVM. b. Open the downloaded file. c. In the Welcome Wizard window, click Next. Figure 5-1. Welcome Setup Window TPS389387EVM Joint Evaluation Module SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 15 Figure 5-2. Setup License Agreement Window e. The default destination folder works best. Click Next. Figure 5-3. Setup Destination Window SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 16 There is no need to install additional options for this EVM. Click Next. Figure 5-5. Setup Window - Additional Tasks TPS389387EVM Joint Evaluation Module SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 17 Figure 5-6. Setup Installation Window Click on Finish to complete the installation setup and launch the software. Figure 5-7. Installation Complete Window SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 18 Section 5.1. Skip this section if the TPS38700Q1EVM GUI is already installed. 2. Attach the MSP430 to the pins at the bottom side of the TPS389387EVM. The orientation is detailed in TPS389387EVM Board Bottom with MSP430. Make sure that the GND pins match the corresponding board connector.
Page 19 8. Click on Change Scan Mode to select TPS38700x and then click OK. Figure 5-9. Fusion Scan Window Figure 5-10. Fusion Scan Selection Window SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 20 10. Once the EVM is discovered, select Click to Configure (text in blue). Figure 5-12. Fusion Scan Window - Scan for TPS38700Q1EVM Completed TPS389387EVM Joint Evaluation Module SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 21 11. Select Refresh All to update the GUI to the preprogrammed device configuration. Figure 5-13. TPS38700 GUI Window - Sequence Config Tab SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 22 Figure 5-14. Main GUI Screen Figure 5-15. System Config TPS389387EVM Joint Evaluation Module SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 23 TPS38700-Q1 GUI instructions Figure 5-16. Sequence Config Figure 5-17. Watchdog Config SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 24 TPS38700-Q1 GUI instructions www.ti.com Figure 5-18. Alarms Config Figure 5-19. Registers TPS389387EVM Joint Evaluation Module SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 25 1.0M 100nF 1.0M 100nF 1.0M 100nF 1.0M 100nF chip_I2C_SCL 16.2k chip_I2C_SDA 5.36k chip_I2C_SDA TPS389006007RTER TPS389006007RTER Figure 6-1. TPS389387EVM Schematic SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 26 Hardware Design Files www.ti.com 6.2 PCB Layout Figure 6-2. Layout—Top Figure 6-3. Layout—Middle 1 TPS389387EVM Joint Evaluation Module SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 27 Hardware Design Files Figure 6-4. Layout—Middle 2 Figure 6-5. Layout—Bottom SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 28 CMP-0022945-5 Dip Switch SPST 12 Position Through FP-206-12ST_DIP24- SW1, SW2 Hole Slide (Standard) Actuator 50 mA 206-12ST CMP-0086642-1 24VDC TPS389387EVM Joint Evaluation Module SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
Page 29 Changes from Revision * (October 2023) to Revision A (February 2024) Page • Added the TPS3839387EVM zip file link containing the .C code............... SNVU875A – OCTOBER 2023 – REVISED FEBRUARY 2024 TPS389387EVM Joint Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
