User's Guide
TPS3899EVM Voltage Supervisor User Guide
This user's guide describes the TPS3899EVM evaluation module (EVM). This guide also contains the EVM
schematic, bill of materials (BOM), assembly drawing, and top and bottom board layouts.
1
Introduction.............................................................................................................................................................................2
Documentation......................................................................................................................................................3
Applications........................................................................................................................................................3
2 Schematic, Bill of Materials, and Layout..............................................................................................................................
Schematic...................................................................................................................................................4
2.2 TPS3899EVM Bill of Materials...........................................................................................................................................
3 EVM Connectors.....................................................................................................................................................................
Points.................................................................................................................................................................8
Jumpers.....................................................................................................................................................................8
Operation......................................................................................................................................................9
4.1 Input Power (VDD).............................................................................................................................................................
4.2 Monitoring Voltage on SENSE Pin.....................................................................................................................................
(RESET).......................................................................................................................................................9
4.4 Sense and Reset Time Delay Programming (Program t
4.5 Programmable Push-Button Functionality Using Jumper J5............................................................................................

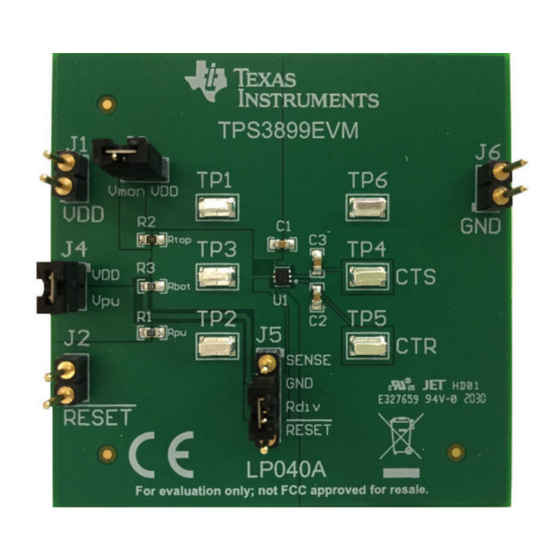

Figure 1-1. Board Top..................................................................................................................................................................
Figure 1-2. Board Bottom............................................................................................................................................................
Figure 2-3. Component Placement-Bottom Assembly..............................................................................................................
Figure 2-4. Layout-Top..............................................................................................................................................................
Layout-Bottom.........................................................................................................................................................6
Layer...................................................................................................................................................................7
Figure 2-7. Bottom Layer.............................................................................................................................................................
Mask........................................................................................................................................................7
Figure 4-3. Programmable Push-Button Circuit.........................................................................................................................
Figure 4-4. Programmable Push-Button Timing Diagram..........................................................................................................
Table 3-1. Test Points..................................................................................................................................................................
Table 3-2. EVM Jumpers.............................................................................................................................................................
Trademarks
All other trademarks are the property of their respective owners.
SLVUBZ3 - SEPTEMBER 2020
Submit Document Feedback
Table of Contents
Placement....................................................................................................................................6
List of Figures
Schematic..........................................................................................................................................4
Assembly....................................................................................................................6
Capture.........................................................................................................................10
Capture..........................................................................................................................10
List of Tables
Materials....................................................................................................................................5
Voltage...........................................................................................................9
Copyright © 2020 Texas Instruments Incorporated
ABSTRACT
)..........................................................................10
D
Pins...............................................................................10
Table of Contents
TPS3899EVM Voltage Supervisor User Guide
3
5
8
9
9
11
2
3
6
6
7
11
11
8
8
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TPS3899EVM
Summary of Contents for Texas Instruments TPS3899EVM
-
Page 1: Table Of Contents
User’s Guide TPS3899EVM Voltage Supervisor User Guide ABSTRACT This user’s guide describes the TPS3899EVM evaluation module (EVM). This guide also contains the EVM schematic, bill of materials (BOM), assembly drawing, and top and bottom board layouts. Table of Contents Introduction.....................................2 1.1 Related... -
Page 2: Introduction
1 Introduction The TPS3899EVM is an evaluation module (EVM) for the TPS3899 voltage supervisor. The TPS3899EVM can be used with any TPS3899 device variant but please note that if using the push-pull variants (TPS3899PLXX or TPS3899PHXX), the shunt on J4 must be removed as push-pull devices do not use a pull-up resistor and R1 must be disconnected. -
Page 3: Related Documentation
Electronic Point of Sale • Portable, Battery-Powered Systems 2 Schematic, Bill of Materials, and Layout This section provides a detailed description of the TPS3899EVM schematic, bill of materials (BOM), and layout. SLVUBZ3 – SEPTEMBER 2020 TPS3899EVM Voltage Supervisor User Guide Submit Document Feedback... -
Page 4: Tps3899Evm Schematic
Schematic, Bill of Materials, and Layout www.ti.com 2.1 TPS3899EVM Schematic Figure 2-1. TPS3899EVM Schematic TPS3899EVM Voltage Supervisor User Guide SLVUBZ3 – SEPTEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 5: Tps3899Evm Bill Of Materials
Schematic, Bill of Materials, and Layout 2.2 TPS3899EVM Bill of Materials Table 2-1. TPS3899EVM Bill of Materials Designator Quantity Value Description PackageReference PartNumber Manufacturer !PCB1 Printed Circuit Board LP040 C1, C2, C3 0.1uF CAP, CERM, 0.1 uF, 10 V,... -
Page 6: Layout And Component Placement
2.3 Layout and Component Placement Figure 2-2. Component Placement—Top Assembly Figure 2-3. Component Placement—Bottom Assembly Figure 2-4. Layout—Top Figure 2-5. Layout—Bottom TPS3899EVM Voltage Supervisor User Guide SLVUBZ3 – SEPTEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 7: Figure 2-6. Top Layer
Schematic, Bill of Materials, and Layout Figure 2-6. Top Layer Figure 2-7. Bottom Layer Figure 2-8. Top Solder Mask SLVUBZ3 – SEPTEMBER 2020 TPS3899EVM Voltage Supervisor User Guide Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated... -
Page 8: Evm Connectors
Connect to GND pin Allows user to connect to GND. 3.2 EVM Jumpers Table 3-2 lists the jumpers on the TPS3899EVM. As ordered, the EVM will have five jumpers and three shunts. Table 3-2. EVM Jumpers Jumper Default Connection Description Shorted Both pins on J1 are shorted together. -
Page 9: Evm Setup And Operation
EVM Setup and Operation 4 EVM Setup and Operation This section describes the functionality and operation of the TPS3899EVM. The user should read the TPS3899 data sheet for electrical characteristics of the device. 4.1 Input Power (VDD) The VDD supply is connected through the J1 header on board. Both pins of jumper J1 are connected together so power can be applied to either pin. -
Page 10: And T )
J3, J4, and J5 (Rdiv [pin 3] to GND [pin 2]). Figure 4-1. Sense Delay Oscilloscope Capture Figure 4-2. Reset Delay Oscilloscope Capture TPS3899EVM Voltage Supervisor User Guide SLVUBZ3 – SEPTEMBER 2020 Submit Document Feedback... -
Page 11: Sense And Reset Time Delay Programming
Figure 4-3 shows a programmable push-button circuit that has a programmable holding condition and a programmable output width. The TPS3899EVM supports testing for programmable push-button functionality. This is accomplished using a shunt on jumper J5 (RESET [pin 4] to R [pin 3]). - Page 12 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
