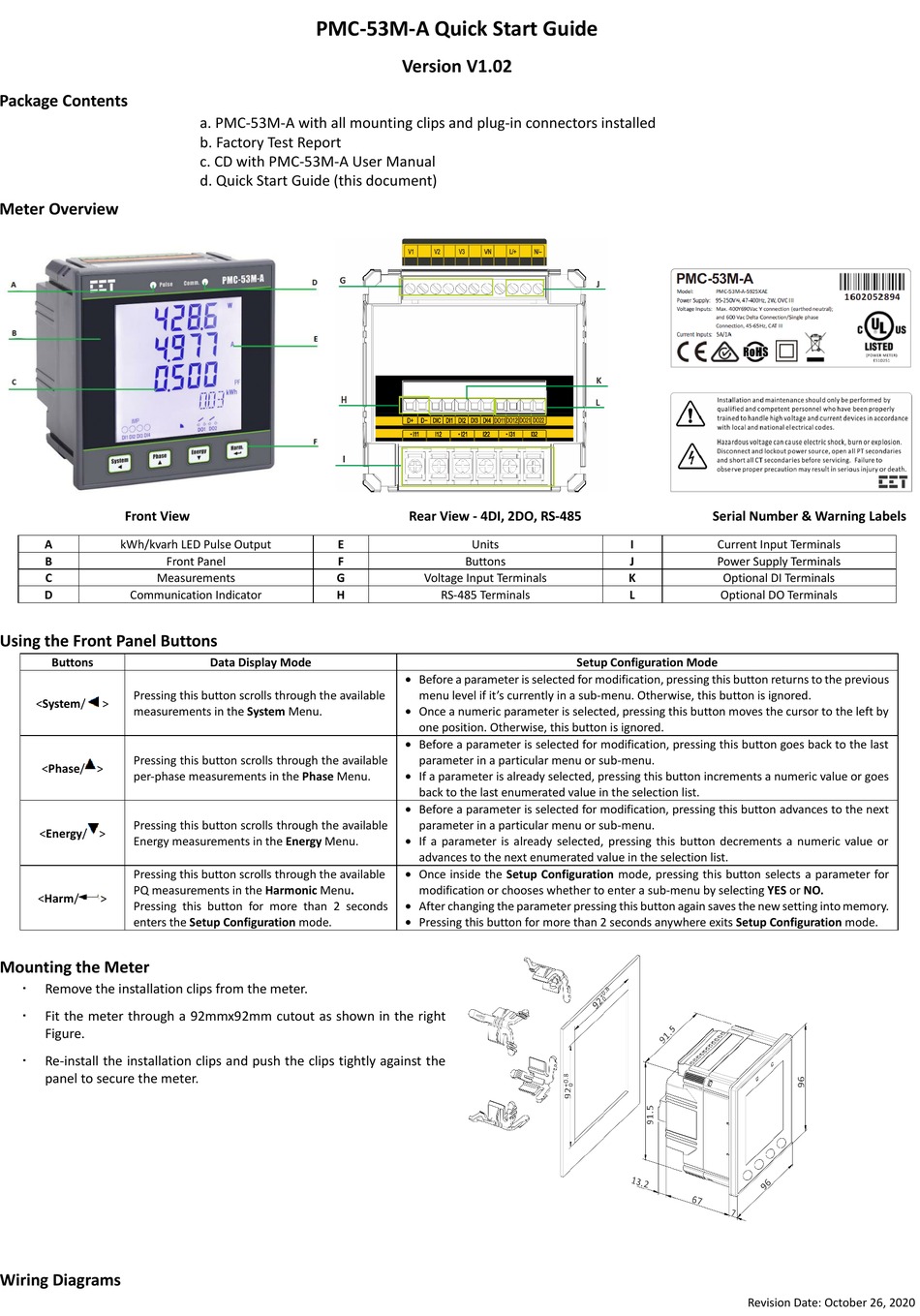

CET PMC-53M-A Quick Start Manual

Package Contents

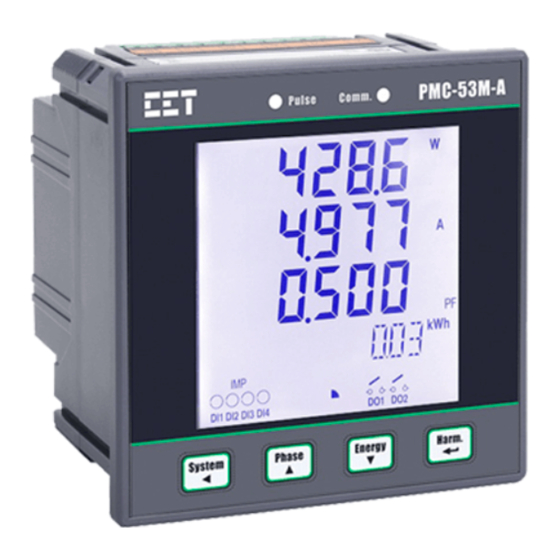

Meter Overview

Front View
A kWh/kvarh LED Pulse Output
B Front Panel
C Measurements
D Communication Indicator

Using the Front Panel Buttons

Buttons
Pressing this button scrolls through the available
<System/ >
measurements in the System Menu.
Pressing this button scrolls through the available
<Phase/ >
per-phase measurements in the Phase Menu.
Pressing this button scrolls through the available
<Energy/ >
Energy measurements in the Energy Menu.
Pressing this button scrolls through the available
PQ measurements in the Harmonic Menu.
<Harm/ >
Pressing this button for more than 2 seconds
enters the Setup Configuration mode.

Mounting the Meter


Remove the installation clips from the meter.

Fit the meter through a 92mmx92mm cutout as shown in the right
Figure.

Re-install the installation clips and push the clips tightly against the
panel to secure the meter.

Wiring Diagrams

PMC-53M-A Quick Start Guide
a. PMC-53M-A with all mounting clips and plug-in connectors installed
b. Factory Test Report
c. CD with PMC-53M-A User Manual
d. Quick Start Guide (this document)
E
F
G
H
Data Display Mode
Version V1.02
Rear View - 4DI, 2DO, RS-485
Units
Buttons
Voltage Input Terminals
RS-485 Terminals
• Before a parameter is selected for modification, pressing this button returns to the previous
menu level if it's currently in a sub-menu. Otherwise, this button is ignored.
• Once a numeric parameter is selected, pressing this button moves the cursor to the left by
one position. Otherwise, this button is ignored.
• Before a parameter is selected for modification, pressing this button goes back to the last
parameter in a particular menu or sub-menu.
• If a parameter is already selected, pressing this button increments a numeric value or goes
back to the last enumerated value in the selection list.
• Before a parameter is selected for modification, pressing this button advances to the next
parameter in a particular menu or sub-menu.
• If a parameter is already selected, pressing this button decrements a numeric value or
advances to the next enumerated value in the selection list.
• Once inside the Setup Configuration mode, pressing this button selects a parameter for
modification or chooses whether to enter a sub-menu by selecting YES or NO.
• After changing the parameter pressing this button again saves the new setting into memory.
• Pressing this button for more than 2 seconds anywhere exits Setup Configuration mode.
Serial Number & Warning Labels
I Current Input Terminals
J Power Supply Terminals
K Optional DI Terminals
L Optional DO Terminals
Setup Configuration Mode
Revision Date: October 26, 2020
