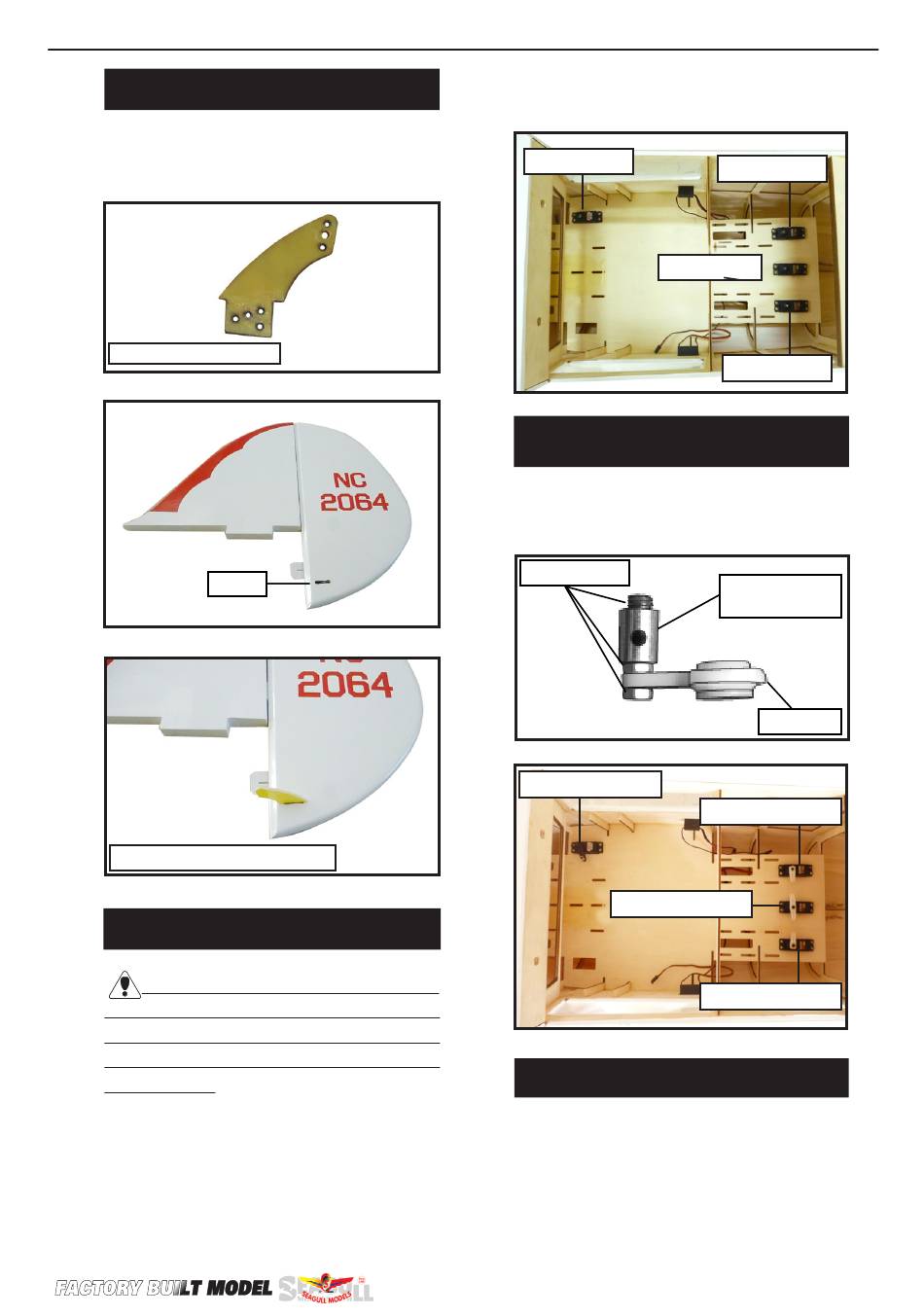

INSTALL RUDDER CONTROL HORN.
Repeat steps to install the rudder control
horn as same as steps done for ailerons.
Fiberglass control horn.
Epoxy.
Rudder fiberglass control horn.

INSTALLING THE FUSELAGE SERVOS.

Because the size of servos differ, you
may need to adjust the size of the precut
opening in the mount. The notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets into all servos. Test fit the servos
into the fuselage servo mounts.
WWW.SEAGULLMODELS.COM
.
2) Secure the servos with the screws pro-
vided with your radio system.
Throttle servo.
Rudder servo.
THROTTLE SERVO ARM
INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
Loctite secure.
Throttle servo arm.
Rudder servo arm.
INSTALLING THE RECEIVER SWITCH.
Install the switch into the precut hole in
the side, in the fuselage.
Elevator servo.
Elevator servo.
Adjustable servo
connector.
Servo arm.
Elevator servo arm.
Elevator servo arm.
