Summary of Contents for zortrax M200
- Page 1 Fuse Replacement SOURCE: https://support.zortrax.com/fuse-replacement/ page 1 / 8...
-
Page 2: Table Of Contents

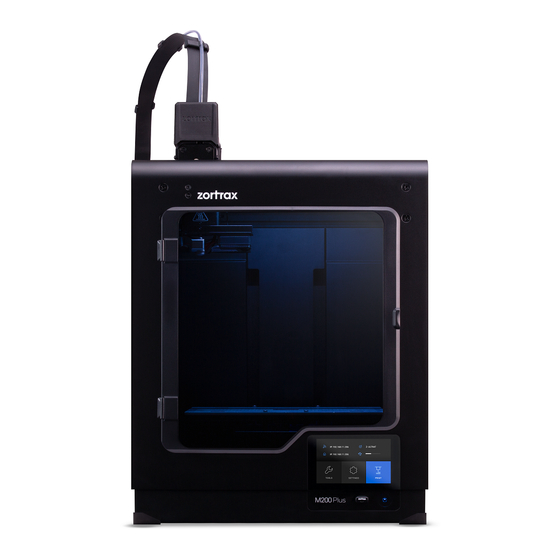

Table Of Content Unplugging the Power Cable Fuse Plug Removal Fuse Replacement Inserting the Fuse Plug Plugging the Power Cable page 2 / 8... - Page 3 Follow the instructions provided in this manual to see the correct replacement procedure. The following manual shows the M200 repair work. For the M300, M200 Plus and M300 Plus, these procedures are the same. page 3 / 8...
-
Page 4: Unplugging The Power Cable
Unplugging the Power Cable Turn off the machine and unplug the power cable. Wait a few minutes for all the capacitors to discharge. page 4 / 8... -
Page 5: Fuse Plug Removal
Fuse Plug Removal Remove the fuse plug using a flathead screwdriver. The plug is placed next to the power switch. page 5 / 8... -
Page 6: Fuse Replacement
Fuse Replacement Remove the old fuse and insert a new one: 250V F5AL 5 Amp. page 6 / 8... -
Page 7: Inserting The Fuse Plug
Inserting the Fuse Plug Insert the plug with the new fuse into the slot next to the power switch. page 7 / 8... -
Page 8: Plugging The Power Cable
Plugging the Power Cable Plug the power cable in. page 8 / 8...
