CET PMC-680i Quick Start Manual

Package Contents

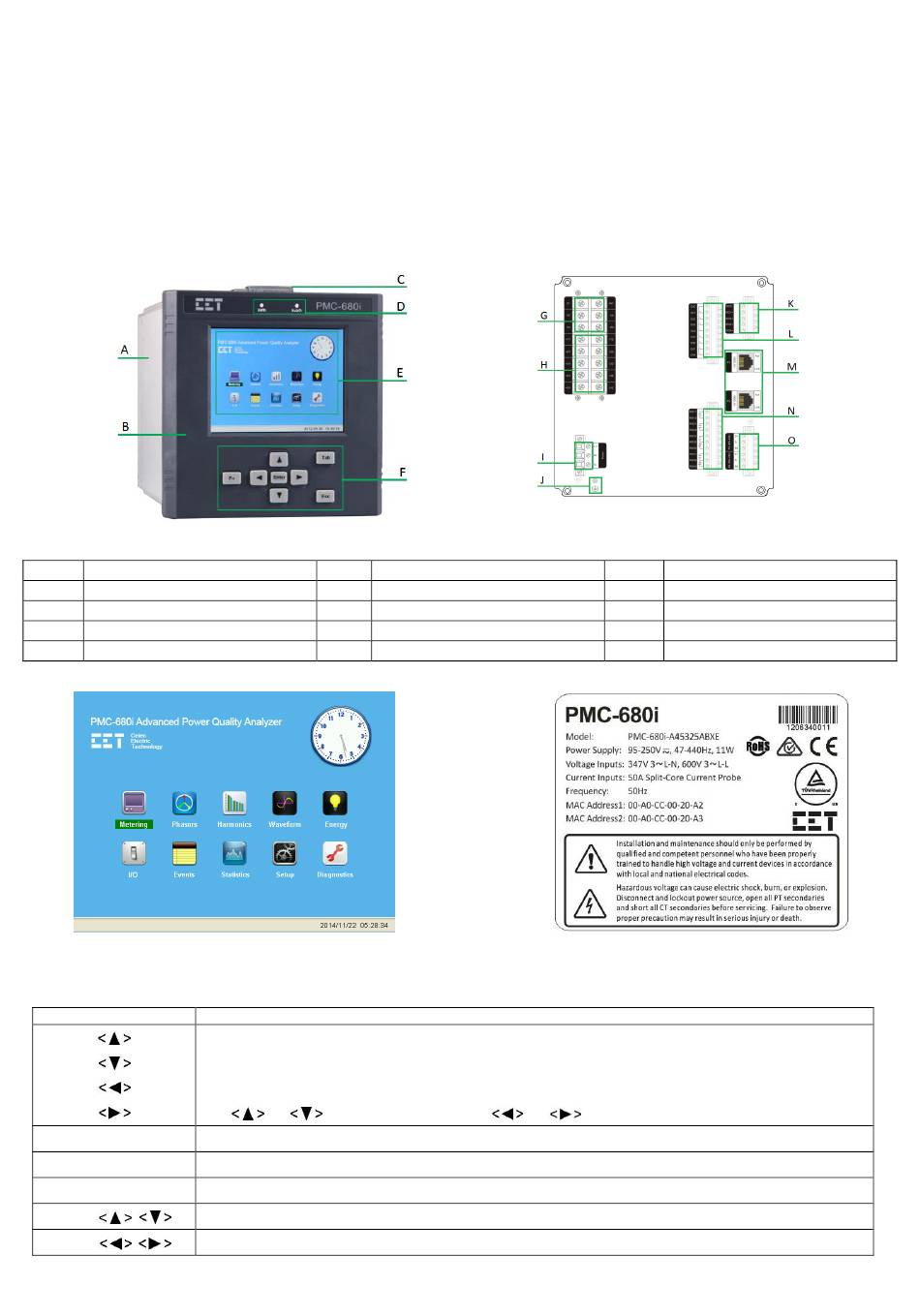

Meter Overview
A Enclosure
B Front Panel
C Mounting Brackets
D kWh/kvarh LED Pulse Output
E TFT LCD Display
Using the Front Panel Buttons
Buttons
<Enter>
<Tab>
<Esc>
<Fn> + /
<Fn> + /
PMC-680i Quick Start Guide
a. PMC-680i Meter with all mounting brackets and plug-in connectors installed
b. Factory Test Report
c. CD with PMC-680i User Manual
d. Quick Start Guide (this document)

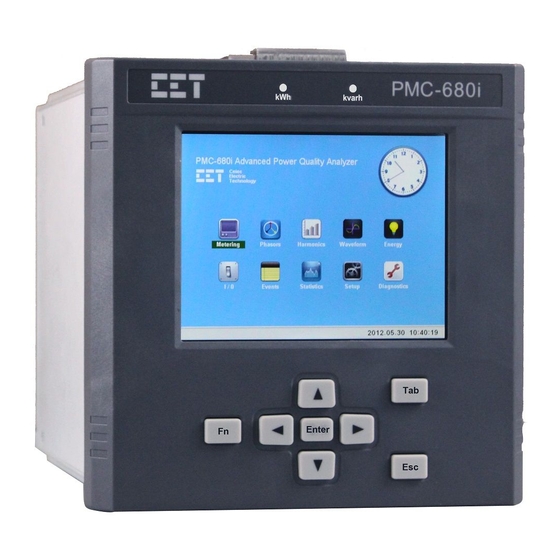

Front View
F
G
H
I
J
Main Menu
In the Main Display, the four arrow buttons are used to move the cursor between Categories, which are represented by the
different icons. The current cursor position is indicated by the highlighted Category's description. While inside a Category
and under a particular Topic, the arrow buttons are used to navigate between Pages.
Use or to view more parameters and
Pressing this button enters a particular Category.
Pressing this button scrolls through Topics from left to right.
Pressing this button returns to the previous menu level.
Pressing this button combination jumps to the first or last page.
Pressing this button combination jumps backward or forward ten pages.
Version 1.01
February 01, 2018
Rear View – 8DI, 4DO, 4RO, 2x10/100BaseT, 2xRS485
Buttons
Voltage Input Terminals
Current Input Terminals
Power Supply terminals
Ground Terminal
Description
or
K DO Terminals
L DI Terminals
M 10/100BaseT Ethernet Port
N RO terminals
O RS485 Terminals
Serial Number / Warning Label
to move backward or forward.
Revision Date: February 01, 2018
