ADS8555EVM Operation

6 ADS8555EVM Operation
This section provides step-by-step instructions for connecting the ADS8555EVM to the computer and evaluating
the performance of the ADS8555.

6.1 Connecting the Hardware and Running the GUI

1. Set the jumpers according to
2. Physically connect P2 of the PHI to J10 of the ADS8555EVM. Install the screws to assure a robust
connection.
3. Connect the USB on the PHI to the computer first.
a. LED D5 on the PHI lights up, indicating that the PHI is powered up.
b. LEDs D1 and D2 on the PHI start blinking to indicate that the PHI is booted up and communicating with
the PC; Figure 6-1
4. As shown in Figure 6-2, start the software GUI. Notice that the LEDs blink slowly when the FPGA firmware is
loaded on the PHI. This process takes a few seconds, afterwards the AVDD and DVDD power supplies turn
on.
5. Connect the external ±15-V power supplies and GND to J1. This connection generates the AVDD, HVDD,
and HVSS supplies (HVDD = 12 V, HVSS = –12 V, and AVDD = 5 V).
6. Connect the signal generator. The default input range is ±10 V (or 10 Vpk). A common input signal applied is
a sinusoidal 1-kHz, 9.9-Vpk signal with a 0-V offset. This signal is adjusted just below the full-scale range to
avoid clipping.
Input signals
connected to first
two channels.
JP00 t JP05
Bypass amplifier
jumper

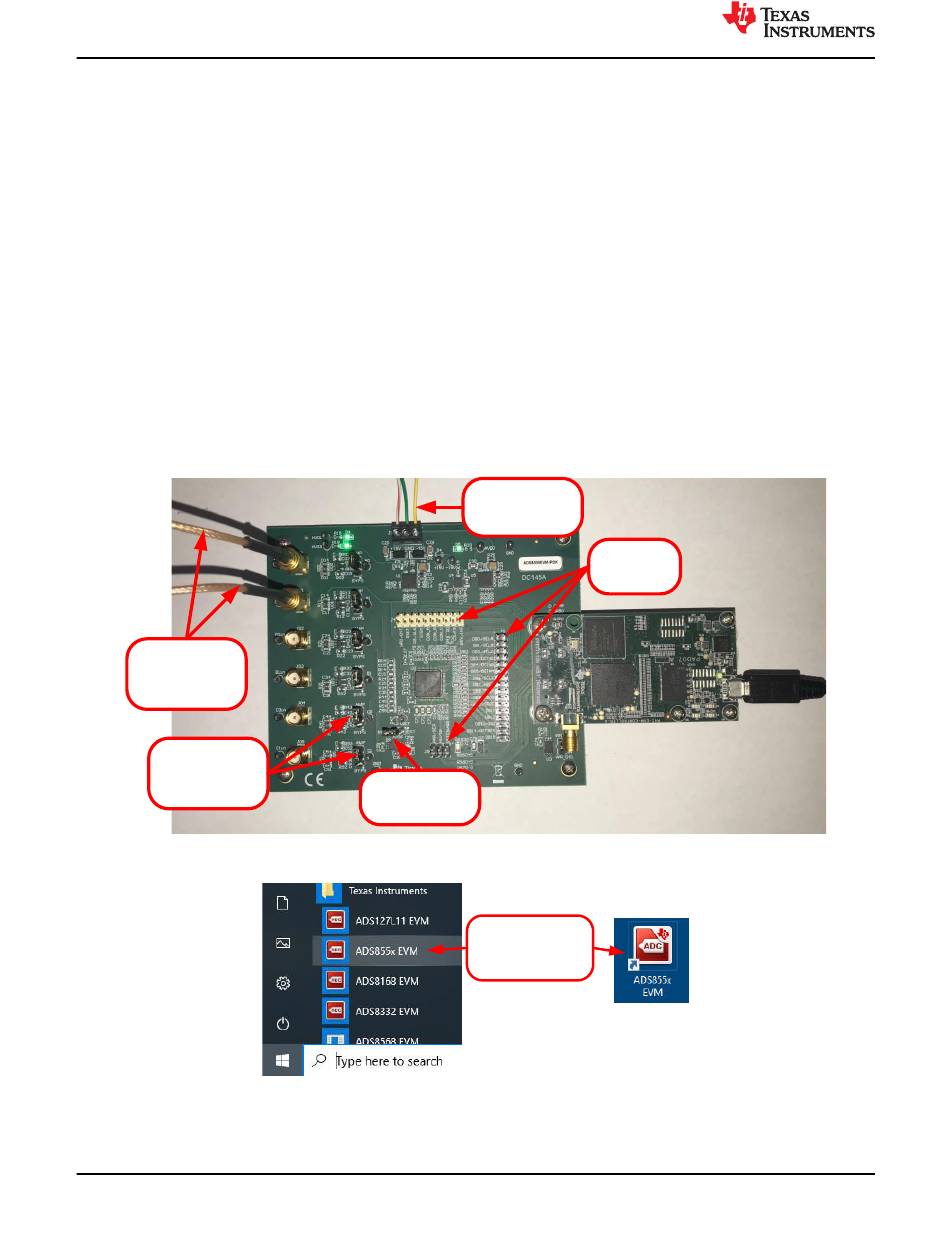

Figure 6-1. ADS8555EVM Hardware Setup and LED Indicators
12 ADS8555EVM-PDK Evaluation Module
Section 6.2.
shows the resulting LED indicators.
ADS8555EVM
JP06
External/Internal
Vref configuration
Figure 6-2. Launch the EVM GUI Software
