Summary of Contents for Akuvox C313 Series

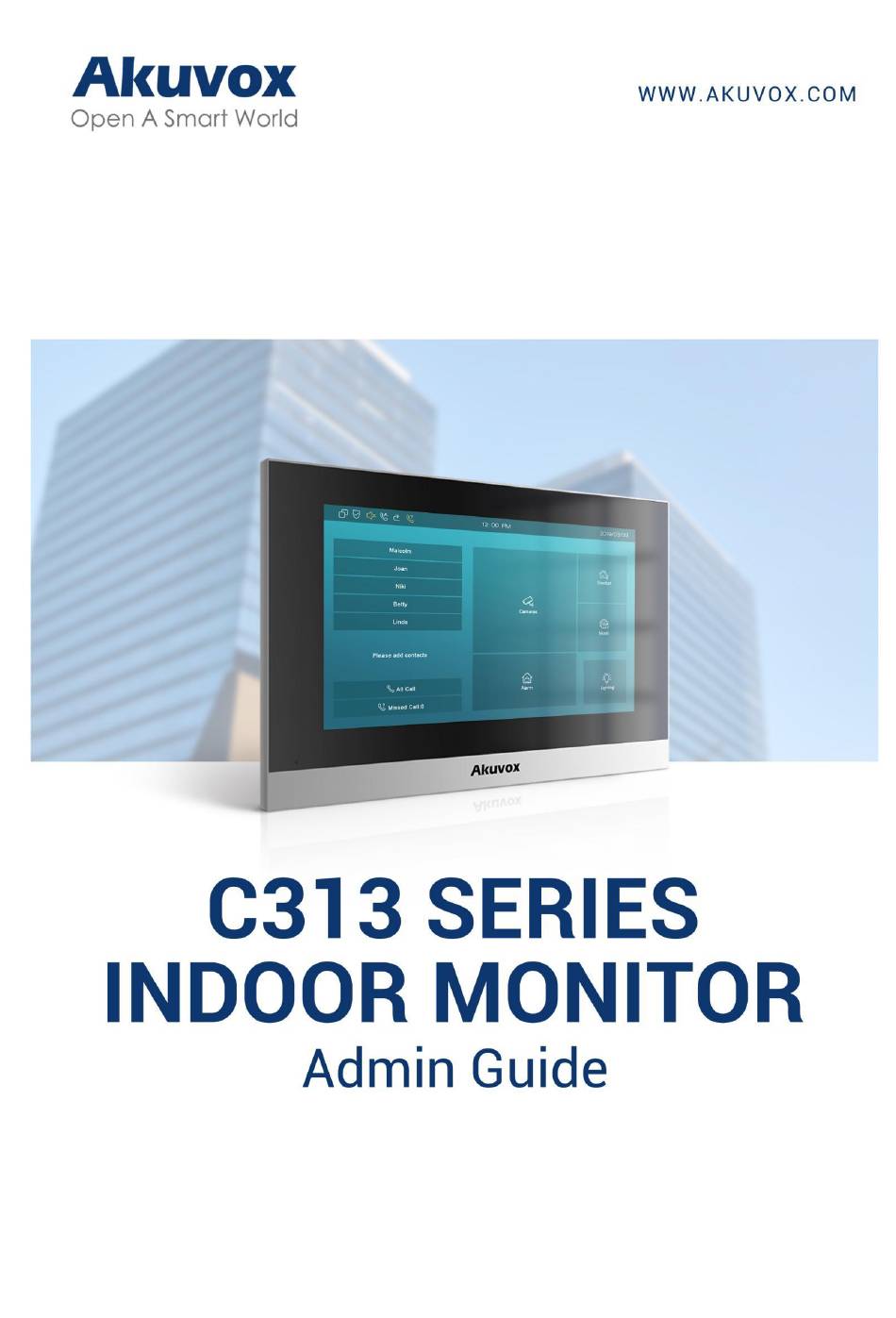

  • Page 1 Version: 1.0 | Date: Feb.2021 Version: 1.0 | Date: May.2021...
  • Page 2 About This Manual Thank you for choosing the Akuvox C313 series indoor monitor. This manual is intended for the administrators who need to properly configure the indoor monitor. This manual applies to the 113.30.6.49 version, and it provides all the configurations for the functions and features of the C313 series indoor monitor.
  • Page 3 Introduction of Icons and Symbols Warning:  Always abide by this information in order to prevent the persons from injury. Caution:  Always abide by this information in order to prevent the damages to the device. Note:  Informative information and advice from the efficient use of the device.
  • Page 4 Related Documentation You are advised to refer to the related documents for more technical information via the link below: http://wiki.akuvox.com...

  • Page 5: Table Of Contents

    Table of Contents 1. Product Overview....................1 2. Change Log......................2 3. Model Difference.....................3 4. Introduction to Configuration Menu..............4 5. Access the Device....................6 5.1. Device Start-up Network Selection............6 5.2. Device Home Screen Type Selection............7 5.3. Accessing the Device Setting on the Device...........7 5.3.1.
  • Page 6 9.2.4. Contact Display................31 9.2.5. Contacts Import and Export on the Web Interface....32 10. Network Setting....................33 10.1. Device Network Configuration.............. 33 10.1.1. Configuring Network Connection on the Device.....33 10.1.2. Configuring Device Network Connection on the Web Interface..................... 34 10.2. Device Deployment in Network.............36 10.3.
  • Page 7 14.2. Alarm and Arming Configuration............63 14.2.1. Configure Alarm and Arming on the Device......64 14.2.2. Configure Alarm and Arming on the Web Interface....66 14.2.3. Configure Location-based Alarm on the device screen..67 14.2.4. Configure Location-based Alarm on the Web Interface..68 14.2.5.
  • Page 8 22. Password Modification..................99 22.1. Modify Device Advanced Setting Password........99 22.2. Modify Device Web Interface Password..........99 23. System Reboot&Reset..................101 23.1. Reboot....................101 23.1.1. Reboot on the Device..............101 23.1.2. Reboot on the Web Interface........... 101 23.2. Reset....................... 102 23.2.1. Reset on the Device..............102 23.2.2.

  • Page 9: Product Overview

    It is more convenient and safer for residents to check the visitor’s identity through its video preview function. C313 series are often applied to scenarios such as villas, apartments, and buildings.

  • Page 10: Change Log

    C313X Indoor Monitor Administrator Guide 2.Change Log The change log will be updated here along with the changes in the new software version. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 11: Model Difference

    2xRJ45, 10/100Mbps adaptive 1xRJ45, 10/100Mbps adaptive Power Supply 12V DC connector 12V DC connector 802.3af Power-over-Ethernet Alarm Input Relay Output Installation Wall mounting Operation 0°C ~ +45°C Temperature Operation 10~90% Humidity Dimensions 200*132*17.5mm (W x H x D) AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 12: Introduction To Configuration Menu

     Mode selection: Discovery mode: It is a plug and play configuration mode. Akuvox devices will configure themselves automatically when users power on the devices and connect them to the network. It is super time-saving mode and it will greatly bring users convenience by reducing manual operations.
  • Page 13 3. Akuvox PC Manager: distribute all configuration items in batch on a LAN. 4. IP scanner: it is used to search Akuvox device IP addresses on a LAN. 5. FacePro: manage face data in batch for the door phone on a LAN.

  • Page 14: Access The Device

    C313X Indoor Monitor Administrator Guide 5.Access the Device Akuvox indoor monitor system settings can be either accessed on the device directly or on the device web interface. 5.1. Device Start-up Network Selection Akuvox indoor monitor system settings can be either accessed on the device directly or on the device's web interface.

  • Page 15: Device Home Screen Type Selection

    C313X Indoor Monitor Administrator Guide 5.2. Device Home Screen Type Selection Akuvox indoor monitor supports two different home screen display mode- Call list Mode, Nine Square Mode. To configure home page mode on the device web Phone->Key/Display, choose one suitable mode for your scenarios.

  • Page 16: Accessing Device Advanced Setting

    C313X Indoor Monitor Administrator Guide 5.3.2.Accessing Device Advanced Setting To access the advanced setting, press Setting then press Advance icon. Press password 123456 (by default) to enter the advanced setting. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 17: Access The Device Setting On The Web Interface

    Interface You can also enter the device IP address on the web browser in order to log in the device web interface by user name and password admin/admin where you can configure and adjust parameter etc. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 18 C313X Indoor Monitor Administrator Guide  You can also obtain the device IP address using the Akuvox IP scanner to log in the device web interface. Please refer to the URL below for the IP scanner application instruction: http://wiki.akuvox.com/doku.php?id=tool:ip_scanner&s[]=ip&s[]=sca nner Note ...

  • Page 19: Language And Time Setting

    Language setting can be configured on the device and on the device web interface that allows you to select or change the language for screen display to your preference. To configure the language display on the device Setting > Language screen. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 20: Language Setting On The Web Interface

    Time setting can be set up on the device and on the device web interface in terms of time zone, date and time format etc. 6.2.1.Time Setting on the Device To set up time setting on the device More > Setting > Time screen. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 21 NTP server (Network Time Protocol). You can also set it up manually by ticking the check box and then enter the time and date you want and press the Save tab to save the setting.  Set Date: Enter the date when it is in manual mode. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 22: Time Setting On The Device Web Interface

    NTP server address that you obtained to automatically synchronize your time and date. And when your time zone is selected, the device will automatically notify the NTP server of its time zone so that the NTP server can synchronize the time zone setting in your device. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 23: Daylight Saving Time Setting

    6.2.2.2. Daylight Saving Time Setting In addition to time settings, you can also configure daylight saving time on the same interface. Modify the time parameters to achieve longer evening or day time, especially in summer. Parameter Set-up： AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 24  By Date: To set the date schedule for daylight saving time.  By Week: To set the schedule for daylight saving time according to the week and month. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 25: Screen Display Configuration

    C313X Indoor Monitor Administrator Guide 7.Screen Display Configuration C313 series indoor monitor allow you to enjoy a variety of screen displays to enrich your visual and operational experience through the customized setting to your preference. 7.1. Screen Display setting on the Device You can configure a variety of features of the screen display in terms of brightness and screen saver, etc.

  • Page 26: Screen Display Setting On The Web Interface

    7.2. Screen Display Setting on the Web Interface C313 series indoor monitor allows you to enjoy a variety of screen displays to enrich your visual and operational experience through the customized setting to your preference.
  • Page 27 Note:  The previous pictures with a specific ID order will be overwritten when repetitive designation of pictures to the same ID order occurred.  The pictures uploaded should be in JPG format with 600k maximum. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 28: Upload Device Booting Image

     The pictures uploaded should be in .png or .zip format. 7.5. Upload Web interface logo You can upload the logo image to be displayed on web interface if needed on device web interface Phone > Album > Logo. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 29: Icon Screen Display Configuration

    7.6. Icon Screen Display Configuration C313 series indoor monitor allow you to customize icon display on the home screen and More screen for the convenience of your operation on device web Phone > Key/Display interface. This article helps you to set up the icon display properly on the screens according to your preference.
  • Page 30  Label: click to rename the icon if need, while DND icon can not be renamed. Note:  You can configure 2 icons in area 1 and 2, or toggle whether to display area 3, 4, 5 and 6. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 31 C313X Indoor Monitor Administrator Guide Note: You can configure 8 icons on the More screen.  AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 32: Sound And Volume Configuration

    C313X Indoor Monitor Administrator Guide 8.Sound and Volume Configuration Akuvox C313 series indoor monitors provide you with various types of ringtone and volume configuration ranging from Mic volume, Ring volume, Talk volume, Tone volume and Media volume. You can configure them on the device directly or on the web interface.

  • Page 33: Configure Volume On The Web Interface

    Parameter Set-up:  Upload: To choose the suitable sound file from the local folder.  Ringtones: To set ring tone for incoming calls.  Door Unit Ring Tones: To set ring tone when receiving calls from Akuvox door units. Note: Doorbell sound files to be uploaded must be .WAV or MP3 format...

  • Page 34: Phone Book Configuration

     Contact Name: enter the name and save.  Number: enter the IP or SIP number to save.  Ring Tone: Select ring tone for this contact.  Group: select Default or any other groups that have been created. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 35: Edit Contacts

     Account: select which account to use to dial out, Account 1 or Account 2. 9.1.2.Edit Contacts Select the exiting contact and click Edit to modify. 9.1.3.Blocklist Settings on the Device you can choose from the contact list the contact you want to add to the block list AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 36: Phone Book Configuration On The Web Interface

    9.2. Phone Book Configuration on the Web Interface 9.2.1. Contact Configuration To conduct contact configuration on web Contacts > Local Contacts interface. The new contact will be shown in the below list after it is added. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 37: Contact Management

     Group: select Default or Blocklist group.  Account: select Account1 or Account2. 9.2.2. Contact Management You can search, display, edit, and delete the contacts in your contacts list on web Contacts > Local Contacts interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 38: Block List Setting On The Web Interface

    9.2.3. Block List Setting on the Web Interface You can set the blocklist directly in the contact list on the web Contacts > Local Contacts > Local Contacts List interface or set it when editing a contact. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 39: Contact Display

     Contacts Sort By: There are three modes Default, ASCII code and Created time mode for showing the contact list.  Show Local Contacts Only: if enable the function, the contact on device will only show local phonebook, the contact for discovery mode will be hidden. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 40: Contacts Import And Export On The Web Interface

    Contacts > Local Contacts interface. Note: The contact file can only be imported or exported in .xml or .csv  format. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 41: Network Setting

     Type: select the DHCP mode or Static mode. DHCP mode is the default network connection. If the DHCP mode is selected, then the door phone will be assigned by the DHCP server with IP address, subnet mask, default gateway, and DNS server address automatically. When Static IP AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 42: Configuring Device Network Connection On The Web Interface

    Settings screen to check the device network status. The default system code is "123456".  10.1.2. Configuring Device Network Connection on the Web Interface To check the network on the web Status > Network information interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 43 Preferred DNS Server is the primary DNS server address while the Alternate DNS Server is the secondary server address and the door phone connects to the alternate DNS server when the preferred DNS server is unavailable. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 44: Device Deployment In Network

    C313X Indoor Monitor Administrator Guide 10.2.Device Deployment in Network Akuvox C313 series indoor monitors should be deployed before they can be properly configured in the network environment in terms of their location, operation mode, address and extension numbers as opposed to other devices for device control and the convenience of the management.

  • Page 45: Device Nat Setting

     RPort: check the RPort when the SIP server is in WAN (Wide Area Network). 10.4.Device Wi-Fi Setting In addition to wired connection, the device also supports Wi-Fi connection. You can set the Wi-Fi on device screen More > Setting > Advance > Network. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 46: Vlan Setting

    To configure VLAN function on the device web interface Network > Advanced > VLAN Setting. Parameter Set-up:  VLAN: Enable or Disable VLAN function.  Priority: VLAN Priority lets you assign a priority to outbound packets AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 47 C313X Indoor Monitor Administrator Guide containing the specified VLAN-ID (VID). Packets containing the specified VID are marked with the priority level configured for the VID classifier.  VLAN ID: Set the same VLAN ID as Switch or Router. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 48: Intercom Call Configuration

    You can make SIP call (Session Initiation Protocol) in the same way as you do for making the IP calls on the device. However, SIP call parameters related to its account, server, and transport type need to configured first before you can make calls on the device. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 49: Sip Account Registration

    C313X Indoor Monitor Administrator Guide 11.3.SIP Account Registration Akuvox C313 series indoor monitors support two SIP accounts that can all be registered according to your applications. For example, you can switch between the two SIP accounts. The SIP account can be configured on the device and on the device interface.

  • Page 50: Sip Server Configuration

    SIP server between intercom devices. To perform the SIP account setting on the Web Account > Basic > SIP Server Interface. Parameter Set-up:  Server IP: enter the Server’s IP address number or its URL.  Port: set up SIP server port for data transmission. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 51: Outbound Proxy Server Configuration

     Alternate Outbound Proxy Server: set up Backup Server IP for the backup outbound proxy server.  Alternate Outbound Proxy Port: enter the Port number for establish call session via the backup outbound proxy server. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 52: Sip Call Configuration

    For the device network data transmission purpose, device needs to be set up with a range of RTP port (Real-time Transport Protocol) for establishing an exclusive range of data transmission in the network. To set up device local RTP on web Network > Advanced > Local RTP interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 53: Data Transmission Type Configuration

     TCP: select “TCP” for Reliable but less-efficient transport layer protocol.  TLS: select “TLS” for Secured and Reliable transport layer protocol.  DNS-SRV: select “DNS-SRV” to obtain DNS record for specifying the location of services. And SRV not only records the server address but AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 54: Call Setting

    Auto answered can only be applicable to the SIP or IP numbers that are already added in the auto-answer allow list of your indoor monitor. Therefore, you are required to configure or edit the numbers in the white-list on web Phone > Call Feature > Auto Answer AllowList interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 55  SIP/IP number files to be imported or exported must be in either .xml or .csv format.  SIP/IP number must be set up in the phone book of the indoor monitor before they can be valid for the auto-answer function AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 56: Intercom Call Configuration

    Attackers can use this malicious activity to capture and read content containing sensitive and confidential information. SIP hacking prevents SIP call from hacking in the Internet. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 57: Emergency Call Setting

    Especially for the elders and children. Press SOS key, the phone will automatically initiate the target SOS numbers. 11.12.1. SOS icon Display To display SOS softkey on web Phone > Key/Display interface. The icon will show in the main interface or more interface after configured. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 58: Sos Number Settings On Web Interface

     Loop Times: to set up number of calls. 11.12.3. SOS Number Settings on device In addition to configure SOS number on device web interface, you can also configure it on device screen More > Setting > Advance > SOS. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 59: Multicast Configuration

    C313X Indoor Monitor Administrator Guide 11.13. Multicast Configuration C313 allows you to conduct one-to-many broadcasting via multicast function on web Phone > Multicast interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 60: Call Forwarding Setting

     Label: To show the label name on the calling interface if users establish all call. 11.14. Call Forwarding Setting Call Forward is a feature used to redirect an incoming call to the specific third party. Users can redirect the incoming call if it is no answer. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 61: Call Forwarding Configuration On The Device

     Forward Target: To enter the specific forward number if C313 enables No Answer Forwarding.  No Answer Ring Time: to set the no answer time interval from 0-120 seconds before the call is transferred to a designated number. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 62: Call Forwarding Configuration On The Web Interface

    C313X Indoor Monitor Administrator Guide 11.14.2. Call Forwarding Configuration on the Web Interface To set up forward function on web Phone > Call Feature > Forward Transfer interface. Parameter Set-up: Account: To choose which account shall implement call forwarding feature. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 63: Intercom Message Setting

    You can check, create and clear messages as needed on the indoor monitor screen Message > Text Message. Parameter Set-up:  New: press this icon to create a new message  Delete: press this icon to clear the messages that have been selected. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 64: Manage Voice Message

    C313X Indoor Monitor Administrator Guide 12.2.Manage Voice Message You can create, delete and view the audio messages of family members recorded in device screen Message > Family MSG. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 65: Audio& Video Codec Configuration For Sip Calls

    SIP Calls 13.1.Audio Codec Configuration Akuvox indoor monitor supports four types of Codec (PCMU, PCMA, G729, G722) for encoding and decoding the audio data during the call session. Each type of Codec varies in terms of sound quality. You can select the specific codec with different bandwidth and sample rate flexibly according to the actual network environment.

  • Page 66: Video Codec Configuration

    C313X Indoor Monitor Administrator Guide 13.2.Video Codec Configuration C313 series supports H264 codec. To do the configuration on web Account > Advanced > Video Codecs interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 67: Security

    Monitor > Door phone. Parameter Set-up:  Device Number: To enter the IP address or SIP number of the corresponding camera.  Device Name: To enter the device name of doorphone, which could be set by users. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 68: Web Camera Setting

    C313X Indoor Monitor Administrator Guide  Destination URL: To set RTSP URL for the doorphone. The RTSP format of Akuvox doorphone is rtsp://device IP/live/ch00_0  User Name: To enter the user name if required.  Password: To enter the password if required.

  • Page 69: Video Image Capturing

    You can also import or export the monitor list in batch in the same interface. Import file can only support .xml format. 14.1.3. Video Image Capturing To capture video image by pressing Capture during monitor or a video call. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 70 C313X Indoor Monitor Administrator Guide You can also disable capture function on device web interface Phone > Key/Display > Others. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 71: Alarm And Arming Configuration

    14.2.Alarm and Arming Configuration Alarm feature is used to connect some alarm detection devices to protect your home safety. Akuvox indoor monitors support 8 alarm connectors which means you can connect 8 different alarm sensors in different rooms of your house.

  • Page 72: Configure Alarm And Arming On The Device

    Arming icon on the home page or more page on device web Phone > Key/Display interface. 14.2.1. Configure Alarm and Arming on the Device To set up a location-based alarm sensor on device screen More > Setting > Advance > Zone Settings. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 73 To configure the disarm code on device screen Arming. Change the current password and save it. To check the zone status on Arming > Zone Status screen. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 74: Configure Alarm And Arming On The Web Interface

     Location: set up the location according to where the alarm sensor is stalled. You can select among ten location types: “Bedroom”, “Gate”, “Door” “Guest room” ,“ Hall” ,“Window”, “ Balcony” ,“Kitchen”, “ Study” and "Bathroom”. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 75: Configure Location-Based Alarm On The Device Screen

    “24H” if you want alarm sensor to stay enabled for 24 hours without needing to set up the alarm manually again after the alarm is disarmed. 14.2.3. Configure Location-based Alarm on the device screen Configure the location-based alarm on device screen Arming > Arming mode. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 76: Configure Location-Based Alarm On The Web Interface

     Status: To enable or disable Arming mode on the corresponding Zone. 14.2.4. Configure Location-based Alarm on the Web Interface Configure the location-based alarm on device web interface Arming > Arming Mode. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 77: Configure Alarm Text

    14.2.6. Configure Arming mode To switch arming mode, disarm the alarm on Arming screen by pressing their respective icons. Press Disarm icon if you want to clear the Arming Mode. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 78: Alarm Action Configuration

    14.2.7.1. Select Alarm Action Types To select and set up actions on web Arming > Alarm Action interface. Parameter Set-up: HTTP Command: enable HTTP command if you want the action to be  implemented on a designated third party device AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 79: Configure Alarm Action Via Http Command

    To set up the HTTP Command action, you can click “Enable” in the Send HTTP field to enable the actions for the alarm sensor installed in different locations. Then enter the HTTP command provided by the manufacturer of the device on which the action is to be carried. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 80: Configure Alarm Action Via Sip Message

    14.2.7.4. Configure Alarm Action via SIP Call To set up the call action, you can enter the SIP or IP number of the device to be called as an action, then enable Alarm Siren for arming zone as needed. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 81: Check Alarm Log

    C313X Indoor Monitor Administrator Guide 14.2.8. Check Alarm Log To check alarm log on device Arming > Alarm Log screen. To delete the existing alarm log by clicking the top right corner delete icon. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 82: Screen Unlock Setting

    You can enable screenlocker function directly on the device More > Setting > Display screen. The device screen will be locked over the sleep time. You are required to wake up the device through the password. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 83: Screen Unlock By Pin Code

    14.4.Client Certificate Setting Certificates can ensure communication integrity and privacy when deploying Akuvox IP phone. So, when user needs to establish SSL protocol, it is necessary to upload corresponding certificates for verification. C313 series allow user two types of certificate to be uploaded into phone system.

  • Page 84: Web Server Certificate

     Client Certificate: When Akuvox IP Phone required an SSL connection with server, the phone must verify the server to make sure it can be trusted. and the server will send its certificate to the Akuvox IP Phone. Then the Phone will verify this certificate according to client certificate list.
  • Page 85  Only Accept Trusted certificates: If select Enabled, as long as the authentication success, the phone will verify the server certificate based on the client certificate list. If select Disabled, the phone will not verify the server certificate no matter whether the certificate is valid or not. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 86: Power Output Setting

    Device Setting > Basic > Power Output Setting. Note: When the Power Output function is set to enabled, and the PON interface is connected with some particular exchangers, it may cause the device reboots repeatedly. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 87: Door Access Control Configuration

    15.1.Relay Switch Setting 15.1.1. Local Relay Setting Local relays in Akuvox indoor monitor can be used to trigger the door access or Chime bell through local relay connector. You can do this configuration on web interface Phone > Relay > Relay Setting > Local Relay.

  • Page 88: Web Relay Setting

    In addition to the relay that is connected to indoor monitor, you can also control the door access using the network-based web relay. To do this configuration on web Phone > Relay > Web Relay interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 89: Door Unlock Configuration

    DTMF code attached unlock tab on the screen to unlock the door for visitors etc., during a call. Parameter Set-up:  Type: select DTMF type among four options: “Inband”, “RFC2833”, “Info+Inband” and “Info+RFC2833” according to your need. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 90: Door Unlock Via Http Command

    HTTP command (URL) on the web browser to trigger the relay when you are not available by the door for the door access. To do this configuration on web interface Phone > Relay > Open Relay Via HTTP. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 91: Unlock By Icon Button

     DoorNum in the HTTP command above refers to the relay number #1 to be triggered 15.3.3. Unlock by Icon Button To setup the unlock key inC313 for unlocking on web interface Phone >Key/Display > Key Setting. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 92 C313X Indoor Monitor Administrator Guide AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 93: Device Integration With Third Party Device

     Status: click to enable or disable the lift1 button.  Icon: click to select icon for the button.  Label: enter the title for the button.  HTTP Command: select http:// or https:// for head of http command and enter http command. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 94: Configure Lift Control Prompt

    If there are huge amounts of prompts need to be add, you can click Export tab to export a template, after editing to import/export. 16.2.Smart Living Setting You can control the home sensor through HTTP command on device web interface Phone > Smart Living. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 95 Select Off, the icon is white button.  Label: It is used to custom the button display name.  HTTP command: Setup the http command to trigger the sensor. Note:  To configure Smart Living button on Phone > Key/Display. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 96: Firmware Upgrade

    C313X Indoor Monitor Administrator Guide 17. Firmware Upgrade Firmware of different versions for indoor monitor can be upgraded on the device web Upgrade > Basic interface. Note:  Firmware files should be .rom format for upgrade. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 97: Backup

    C313X Indoor Monitor Administrator Guide 18. Backup Configuration files can be imported to or exported out of the device to your local PC on the device web Upgrade > Advanced > Others interface if needed. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 98: Auto-Provisioning

    Auto-provisioning is a feature used to configure or upgrade the devices in batch via third party servers. DHCP, PNP, TFTP, FTP, HTTPS are the protocols used by the Akuvox intercom devices to access the URL of the address of the third-party server which stores configuration files and firmware, which will then be used to update the firmware and the corresponding parameters on the door phone.

  • Page 99: Introduction To The Configuration Files For Auto-Provisioning

    Note:  If a server has these two types of configuration files, then IP devices will first access the general configuration files before accessing the MAC-based configuration files. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 100: Autop Schedule

    C313X Indoor Monitor Administrator Guide 19.3.Autop Schedule Akuvox provides you with different Autop methods that enable the indoor monitor to perform provisioning for itself in a specific time according to your schedule. To set up the schedule on device web Upgrade > Advanced >...

  • Page 101: Static Provisioning Configuration

     Common AES Key: set up AES code for the intercom to decipher general Auto Provisioning configuration file.  AES Key (MAC): set up AES code for the intercom to decipher the MAC-based auto provisioning configuration file. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 102 HTTP: http://192.168.0.19/ (use the default port 80)  http://192.168.0.19:8080/ (use other ports, such as 8080)  HTTPS: https://192.168.0.19/ (use the default port 443)  Tip: Akuvox do not provide user specified server.  Please prepare TFTP/FTP/HTTP/HTTPS server by yourself.  AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 103  The general configuration file for the in-batch provisioning is with the format “cfg” taking C313 as an example “r000000000313.cfg (9 “zeros” in total while the MAC-based configuration file for the specific device provisioning is with the format” MAC_Address of the device.cfg, for example “0C110504AE5B.cfg.” AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 104: Call Log

    Contacts > Call Logs interface and export the call log from the device if needed. Parameter Set-up:  Call History: select call history among four options: “All”, “Dialed” “Received”, “Missed”, “Forwarded” for the specific type of call log to be displayed. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 105: Debug

     LogLevel: select log levels from 1 to 7 levels. You will be instructed by Akuvox technical staff about the specific log level to be entered for debugging purpose. The default log level is “3”. The higher the level is, the more complete the log is.

  • Page 106: Pcap For Debugging

    C313X Indoor Monitor Administrator Guide 21.2. PCAP for Debugging PCAP in Akuvox indoor monitor is used to capture the data package going in and out of the devices for debugging and troubleshooting purpose. You can set up the PCAP on the device web Upgrade > Advanced > PCAP interface properly before using it.

  • Page 107: Password Modification

    22.2.Modify Device Web Interface Password To modify web interface password, you can do it on device web interface Security > Basic > Web Password Modify. Select "Admin" for the administrator account and "User" for the User Account. AKUVOX SMART INTERCOM www.akuvox.com...

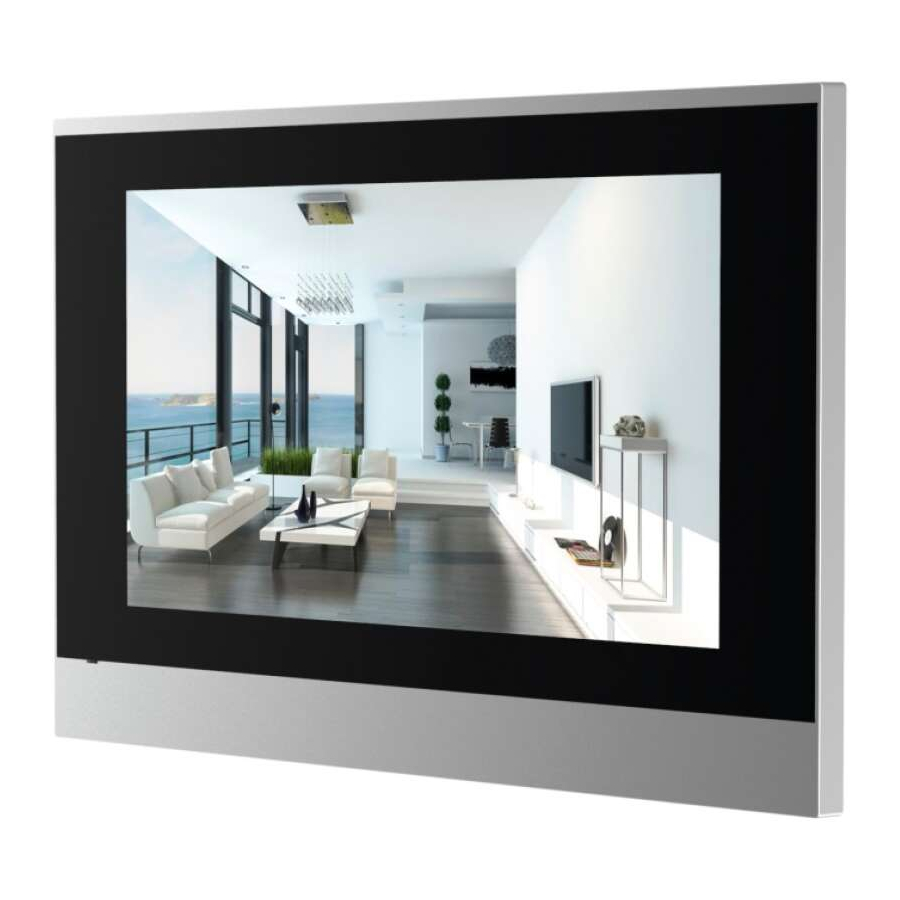

  • Page 108 C313X Indoor Monitor Administrator Guide Note:  There are two accounts, one is admin, its password is admin, the other is user, its password is user. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 109: System Reboot&Reset

    23.1.2. Reboot on the Web Interface If you want to reboot the device system, you can operate it on the device web Upgrade > Basic interface as well. Moreover, you can set up schedule for the device to be restarted. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 110: Reset

    23.2. Reset 23.2.1. Reset on the Device If you want to reset the whole device system to the factory setting, you can operate it directly on the device screen More > Setting > Advance > Reset. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 111: Reset On The Web Interface

    Device system can also be reset on device web Upgrade > Basic interface without approaching the device. If you only want to reset to the configuration file to the factory setting, you can click Reset Config To Factory Setting on the same page. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 112: Abbreviations

    HTTP: Hypertext Transfer Protocol HTTPS: Hypertext Transfer Protocol Secure Socket Layer IP: Internet Protocol ID: Identification IR: Infrared LCD: Liquid Crystal Display LED: Light Emitting Diode MAX: Maximum POE: Power Over Ethernet PCMA: Pulse Code Modulation A-Law AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 113 SDMC: SIP Devices Management Center TR069: Technical Report069 TCP: Transmission Control Protocol TLS: Transport Layer Security TFTP: Trivial File Transfer Protocol UDP: User Datagram Protocol URL: Uniform Resource Locator VLAN: Virtual Local Area Network WG: Wiegand AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 114: Faq

    A1: You can use the display screen to get the IP information, just check the IP address at More > Status. You can also use Akuvox IP Scanner to search Akuvox devices in the same LAN network. Q2: Do Akuvox devices support opus codec? A2: For now, only Akuvox Android video IP phone R48G can support Opus audio codec.

  • Page 115: Contact Us

    C313X Indoor Monitor Administrator Guide 26. Contact US For more information about the product, please visit us atwww.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: support@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
