C313 Series Indoor Monitor User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C313 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Akuvox C313 Series

Summary of Contents for Akuvox C313 Series

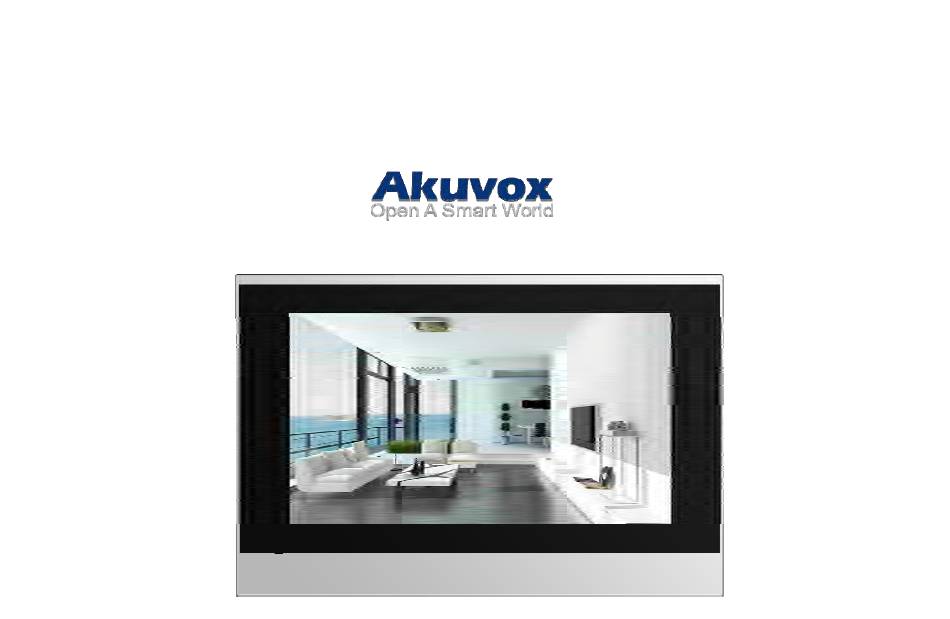

  • Page 1 C313 Series Indoor Monitor User Manual...

  • Page 2: About This Manual

    FCC Radiation Exposure Statement:  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .  This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter.  This equipment should be installed and operated with minimum distance 20cm between the radiator &you body.  Contact us For more information about the product, please visit us atwww.akuvox.comor feel free to contact us by Sales email: sales@akuvox.com Technical support email: techsupport@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.

  • Page 3: Product Overview

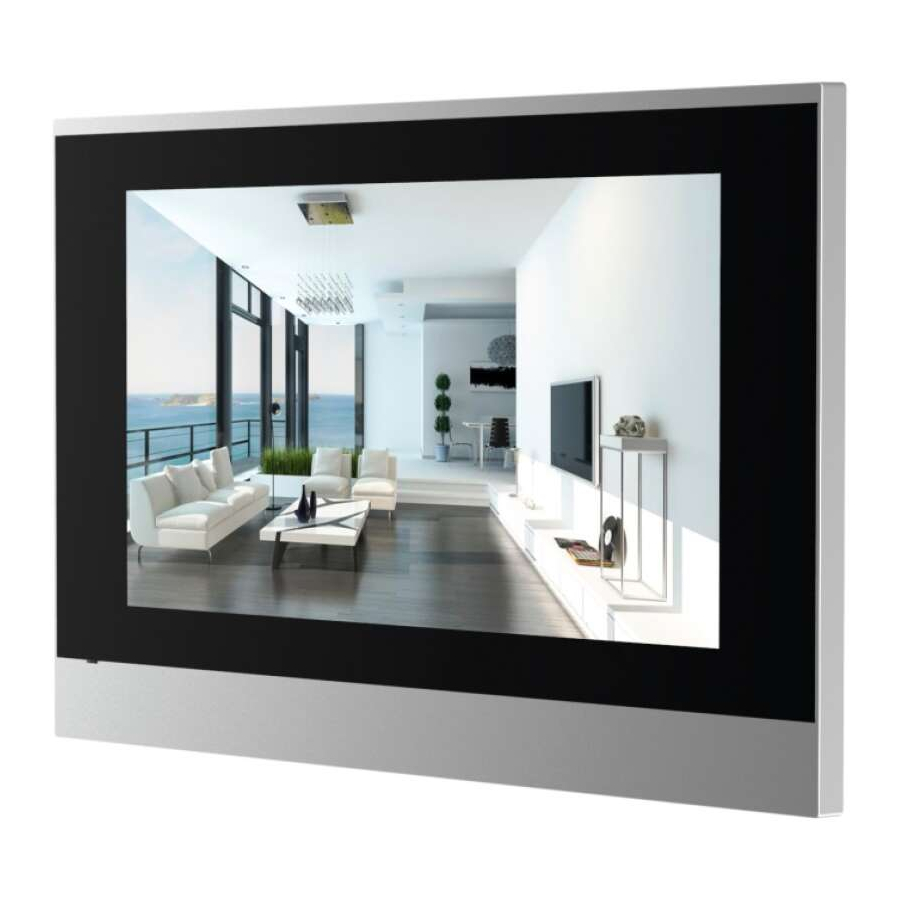

    1. Productoverview 1.1 ProductDescription C313Sis a Linux-based IP indoor monitor with a touch screen. It incorporates audio communications, access control sensor arming and obtain video stream from door phone or IPC. Its finely-tuned Linux OS allows for better suit the habit of usage of local people.

  • Page 4: Daily Use

    2. Dailyuse 2.1 Making acall There are two ways to make a call from the indoor monitor to other units, which can be another indoor monitor or an intercom app. 2.1.1 Calling from digitalkeypad ⁑Tap the icon to enter the call interface. ⁒Enter the number to call on the digital keypad, for example number 1001, and ⁓tap the dial key, you can chooseto m 2.1.2 Calling fromphonebook...

  • Page 5: Calling From Calllog

    2.1.3 Callingresident ⁑Press the icon to enter the call resident interface. ⁒Enter the room number you want to call, for example, if you want to call the community1,Building 1, Unit 1, Floor 1, Room1;enter 001001010101,and then ⁓press dial key. You can choose the audio call or video call.
  • Page 6 Callingdoorphone 2.1.5 ⁑Press to make a call out, if you want to call doorphone unit. Callingcenter 2.1.6 ⁒Press to make a call out., if you want to call management center (SDMC system). 2.2 Receiving acall 2.2.1 Receive a incomingcall ⁑There will be a video preview in this window, when you receive a incoming call;...
  • Page 7 2.2.2 during thesession ⁑Press the icon to hang up this session. ⁒Choose capture to get a screenshot and save it into Album. ⁓Press this icon to open the door for caller. ⁔Press "+"/"-" to adjust the speaker volum. 2.3 Contact 2.3.1 LocalPhonebook ⁑Press the icon to delete the selected group.
  • Page 8 2.3.1.1 Add agroup Enter the phone book interface, you can ⁑press the icon to add a group. ⁒Type in the goup name. ⁓Choose a ring tone for this group. ⁔Press this icon to save the group. ⁕Press the icon to exit adding a group. 2.3.1.2 Managecontacts Enter the contacts interface, you can ⁑press the icon to make a audio/video call to the selected contact.

  • Page 9: Add A Contact

    2.3.1.3 Add acontact ⁑Select a group, to check the contacts in this group. ⁒Press the icon to add a contact. ⁓Type in the contact name. ⁔Type in the number 1, it must be a room number. ⁕Type in the number 2, it can be a SIP number or IP number.
  • Page 10 2.3.2 Communityphonebook Once C313s connected to the SDMC system, it will get the community phonebook automatically. ⁑Choose a contact to check his office number or mobile number. ⁒Chooseanumberand⁓pressdialkeytodialthe correspondingcontact,youcanchooseaudiocallor videocall. Note: The community phonebook is managed by the property worker, so you cannot manage it by yourself. 2.4 Status 2.4.1BasicStatus To check C313S's status by ⁑pressing this icon.

  • Page 11: Network Status

    NetworkStatus 2.4.2 ⁑Press the icon to check the network status. You can check the LAN type, LAN IP, subnet mask, gateway and DNS here. PhoneStatus 2.4.3 ⁑Press the icon to check the phone status. You can check model, hardware and firmware information here.

  • Page 12: Door Phone

    Monitor ⁑Press the icon to receive the video from indoor IPC or community IPC any time. 2.5.1 DoorPhone ⁒By entering the monitor interface, it is door phone list by default. You can receive video from predefined doorphone station which you set under the path"Setting-Advance- Door Station"...
  • Page 13 2.5.3 WebCamera(Detect) ⁑Press the icon to enter the web camera(detect) list. C313S will detect available web camera via ONVIF protocol automatically. ⁒Choose a URL to get the corresponding video. You need to enter the username and password for access. 2.6 Message(s) ⁓Press the icon to enter the message(s) interface.
  • Page 14 2.6.1 Notices By entering the message(s) interface, it is notices list. You can check the message(s) you received from management center or other residents. ⁑Press this icon to delete all messages. ⁒Select a message to check, or you can delete the selected message by long press.
  • Page 15 2.6.2 Sent ⁑Press this icon to enter the sent list. You can check the sent log here. ⁒Press this icon to delete all sent log. ⁓Select a message to check, or you can delete the selected message by long press. ⁔Press this icon to create a new message.

  • Page 16: Maintenance

    2.6.3 Maintenance ⁑Press this icon to enter the maintenance list. The maintenance message will be sent to the property management center so that you can asked for help. ⁒Select which problem you are facing . And press confirm when you see the prompt.
  • Page 17 2.7 Arming ⁑Press the icon to enter the Arming interface. ⁒C313S supports 4 mode, they are indoor mode, sleeping mode, outdoor mode and disarm mode. 2.7.1 ArmingMode ⁓Press this icon to enter the arming mode settings interface. ⁔You can see all of the 8 zones and corresponding types (slide down to check more information) in this interface.
  • Page 18 2.7.2 DisarmCode ⁑Press this icon to enter the disarm code settings interface. You can modify the disarm code here. ⁒Enter the old disarm code first, it is 0000 as default. ⁓Enter the new disarm code ⁔Enter the new disarm code again for confirming. ⁕Press save icon to save the modification...

  • Page 19: Alarm Log

    2.7.3 AlarmLog ⁑Press this icon to enter the alarm log interface.You can see the alarm log here including location, zone, zone type and alarm time. ⁒Press this icon to delete the selected alarm log. ⁓Press this icon to delete all alarm log. 2.7.4 ZoneStatus ⁔Press the icon to enter the zone status interface.

  • Page 20: Display Settings

    3. Settings 3.1BasicSettings ⁑Press the icon to enter the basic settings interface. 3.1.1 Displaysettings By entering the settings interface, it is display settings interface as default. Youcansetthebrightnessforscreen,youcanadjustitfrom1to10,itis 5 as default, the bigger value means the lighterscreen. You can also set the sleep delay time and whether to enable the screen saver.

  • Page 21: Time Settings

    Timesettings 3.1.3 ⁑By pressing this icon to enter the time settings interface. Setup the date and time in the corresponding area. Enable NTP (Network Time Protocol), the phone will get the Date and Time automatically. And users can also setup NTP server. Setup a suitable Time Zone , Time format and Date Format.

  • Page 22: System Settings

    Album 3.1.5 By pressing "Album" to enter the Album interface. To check all local pictures in album. Users can also play the photos as a digital photo frame. ⁑Press these 2 icon to check previous/next picture. ⁒Press this icon to play the photos. ⁓Back to settings interface by pressing this icon.
