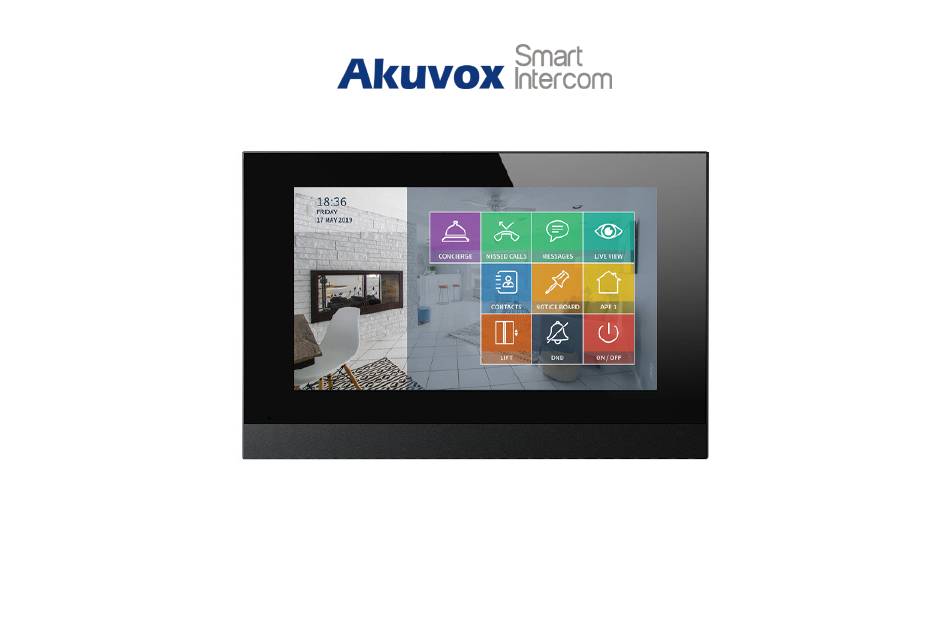

- Page 1 X7HD Indoor Monitor User Manual...
- Page 2 About This Manual Thank you for choosing Akuvox’s X7HD Series indoor monitor. This manual is intended for end users, who need to use and configure the indoor monitor. It provides an overview of the most essential functions and features of the product. The document is suitable for 115.62.2.6xx version.
- Page 3 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 —Consult the dealer or an experienced radio/TV technician for help. For headset, this part has been tested and meets the FCC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal. For baseband, this equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator&...
-
Page 5: Table Of Contents
Contents 1. Product overview........................................1 1.1. Product Description....................................1 1.2. Power connection....................................... 2 2. Everyday use ........................................3 2.1. Making a call........................................3 2.1.1. Calling from digital keypad................................3 2.1.2. Calling from PhoneBook .................................. 4 2.1.3. Calling from call log..................................5 2.2. Receiving a call......................................6 2.2.1. -
Page 6: Product Overview

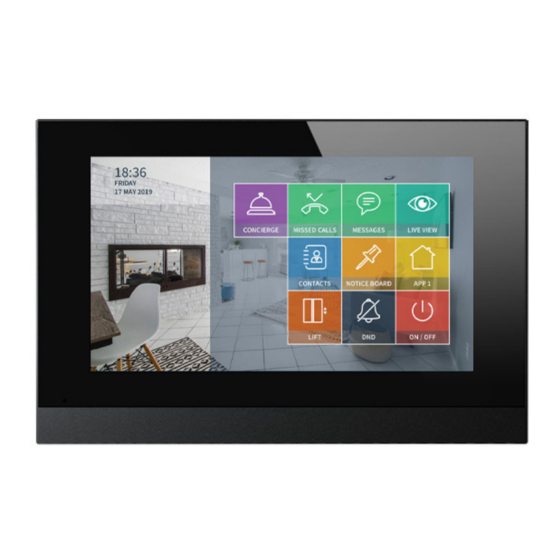

X7HD User Manual 1. Product overview Touch screen 1.1. Product Description The X7HD is an Android-based IP indoor monitor with a touch screen. It incorporates audio communications, access control sensor arming and obtaining a video stream from a door phone or IP camera. -
Page 7: Power Connection
X7HD User Manual 1.2. Power connection Ethernet(POE): Ethernet(POE) connector which can provide both power and network connection. 12V/GND: External power supply terminal if POE is not available. Figure 1.2-1 X7HD interface RS485-A/B: RS485 terminal. Bell/GND: Connect a simple two-wire door bell. RelayA/B (NO/COM/NC): Relay control terminal. -
Page 8: Everyday Use
X7HD User Manual Missed Calls 2.1. Making a call Contacts There are two ways to make a call from the indoor monitor to other units. Call from Contacts or Missed Calls. Figure 2.1-1 Making a call Call... -
Page 9: Calling From Phonebook
X7HD User Manual 2.1.2. Calling from Local PhoneBook Enter the Contact interface to make a call. Device: Click Audio or Video mode to call out. Select the right phone number from the contacts. Click Audio or Video mode to call out. Local PhoneBook: Figure 2.1.2-1 Contact X7HD supports fuzzy matching query... -
Page 10: Calling From Call Log
X7HD User Manual 2.1.3. Calling from call log Press the Missed Call icon to enter the call log interface. You can also enter Intercom interface to check call log Then choose audio call to dial out. Figure 2.1.3-1 Missed Calls Figure 2.1.3-2 Missed Call log... -
Page 11: Receiving A Call
X7HD User Manual Figure 2.2.1-1 Receive call Press Unlock to unlock the door without answering the call. The call video will be shown in this window. Figure 2.2.1-1 During session... - Page 12 X7HD User Manual This feature can be used to monitor the real-time video signal from the IPC or door phone at any time. Click Montor in the home page. Figure 2.3-1 Monitor...
-
Page 13: Monitor
X7HD User Manual 2.3.1. Checking the monitor Choose the outdoor devices from the list . The real-time video from the door phone or IPC will show in the screen. Press Unlock to open the door which connected with door phone. Press Capture to take a photo from the outdoor devices. -
Page 14: Message(S)
X7HD User Manual 2.4. Message(s) Press Messages to enter the message interface. Or there will be a notification if there is any new message 2.4.1. Text Message to Concierge Figure 2.4-1 Messages By entering the message interface, it is text message list. Users can check the message you received or what you sent here. -
Page 15: Creating A Message
X7HD User Manual 2.4.2. Creating a message to Concierge Choose Message from Concierge options Figure 2.4.2-1 Message to Concierge Figure 2.4.2-2 Compose message to Concierge... - Page 16 X7HD User Manual Abbreviations ACS: Auto Configuration Server DNS-SRV: Service record in the Domain Name System Auto: Automatically FTP: File Transfer Protocol AEC: Configurable Acoustic and Line Echo Cancelers GND: Ground ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning HTTPS: Hypertext Transfer Protocol Secure AES: Advanced Encryption Standard IP: Internet Protocol...
- Page 17 X7HD User Manual SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center RTSP: Real Time Streaming Protocol TR069: Technical Report069 MPEG: Moving Picture Experts Group...
- Page 18 X7HD User Manual Contact us For more information about the product, please visit us at www.cie-group.com or feel free to contact us by Sales email: info@cie-group.com Telephone: +44 (0115) 977 0075 will show up delete prompt. click Delete ③ to delete all alarm We highly appreciate your feedback about our products.
